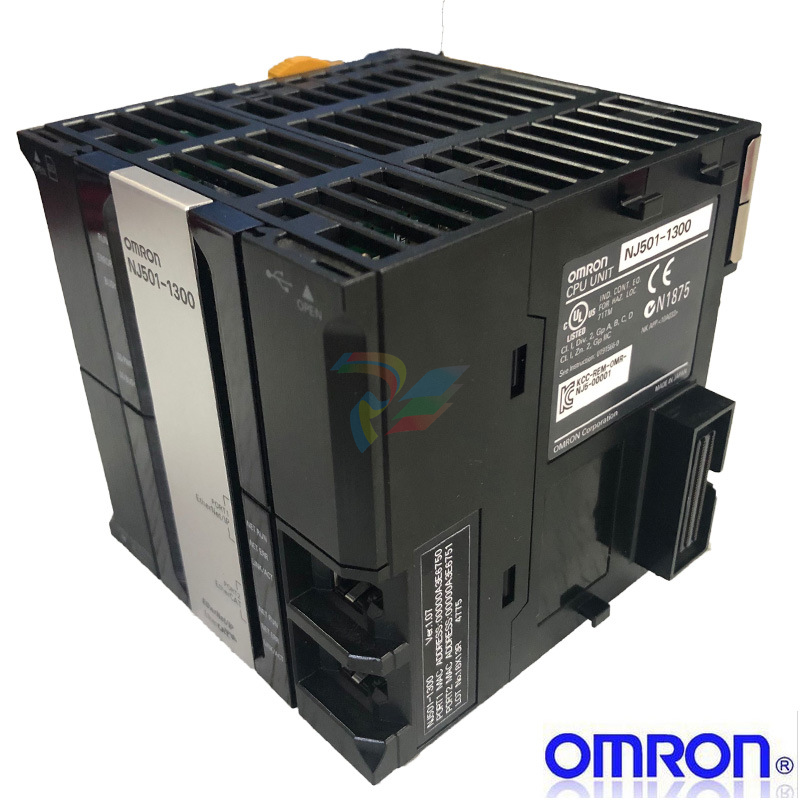

OMRON NJ501-1300 CUP Unit Programmable Controller

OMRON NJ501-1300 CUP Unit Programmable Controller

.The control output can be used as a simple transfer output for the Digital Temperature Controllers manufactured in July 2014 or later.

*2.Option 000 can be selected only if two auxiliary outputs are selected.

*3.Options 002 and 017 can be selected only if the control output is a relay output or voltage output and two auxiliary outputs are selected.

*4.Option 015 cannot be selected if the control output is a relay output or voltage output and two auxiliary outputs are selected.

Heating and Cooling Control

Using Heating and Cooling Control

A Control Output Assignment

An auxiliary output is used as the cooling control output.

B Control

If PID control is used, you can set PID control separately for heating

and cooling.

This allows you to handle control systems with different heating and

cooling response characteristics.

Model Model

HB alarm and HS alarm Communications Power supply voltage Power supply voltage

100 to 240 VAC 24 VAC/DC

Relay output 2------E5DC-RX2ABM-000 E5DC-RX2DBM-000

Detection for single-phase

heater RS-485 E5DC-RX2ABM-002 E5DC-RX2DBM-002------E5DC-RX0ABM-015 E5DC-RX0DBM-015

Voltage output

(for driving SSR)

2------E5DC-QX2ABM-000 E5DC-QX2DBM-000

Detection for single-phase

heater RS-485 E5DC-QX2ABM-002 E5DC-QX2DBM-002------E5DC-QX0ABM-015 E5DC-QX0DBM-015

Linear current

output

2------E5DC-CX2ABM-000 E5DC-CX2DBM-000---RS-485 E5DC-CX0ABM-015 E5DC-CX0DBM-015

2 E5DC-CX2ABM-015 E5DC-CX2DBM-015
