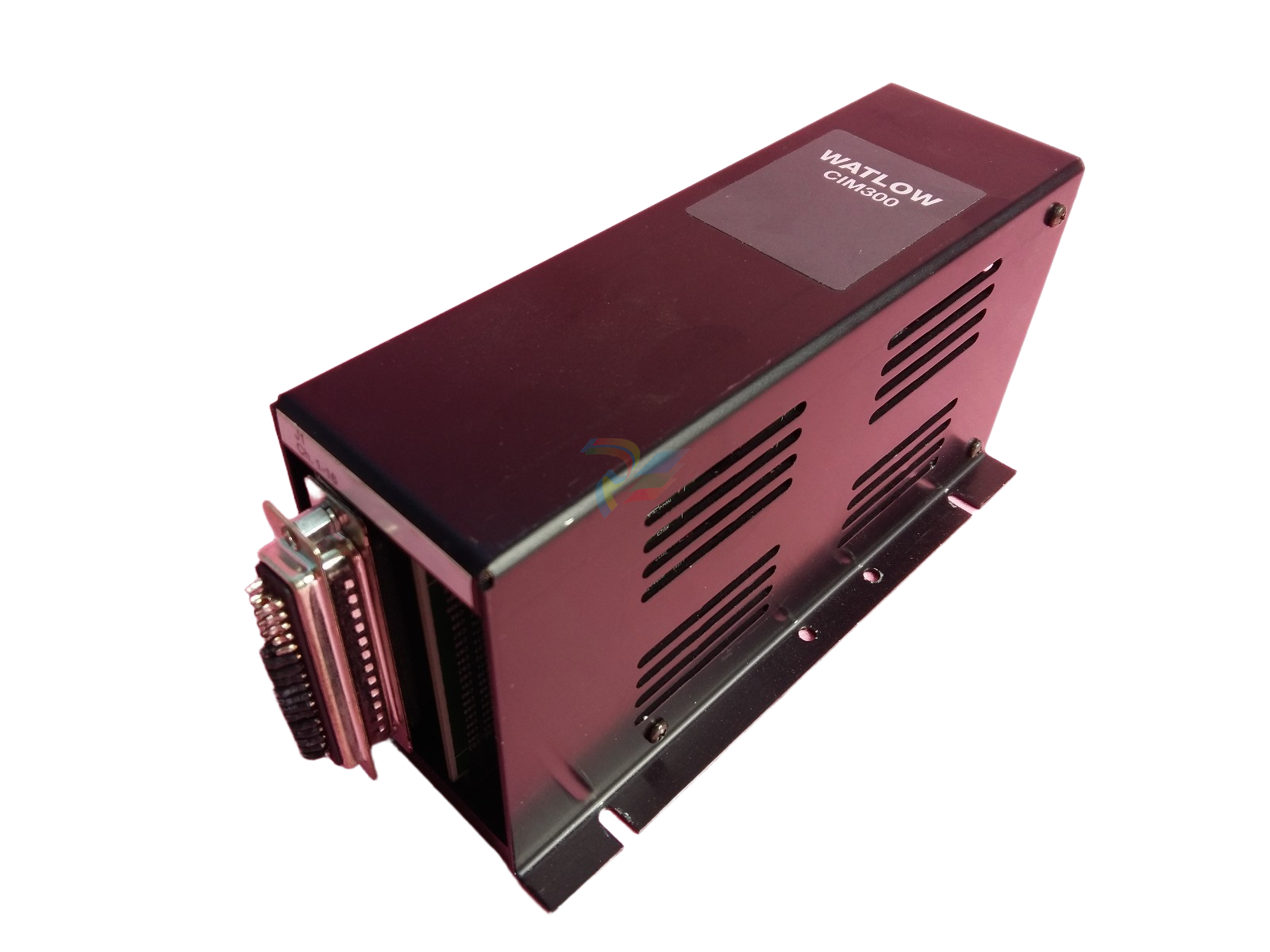

Watlow NLS300-CIM316 Multi-Loop Control Interface Module

Watlow NLS300-CIM316 | Multi-Loop Control Interface Module

The Watlow NLS300-CIM316 is a specialized Control Interface Module (CIM) designed to act as the central nervous system for multi-loop thermal control systems.

Part of the NLS (Networked Limit System) or broader MLS architectural family, this module bridges the gap between complex industrial sensors and higher-level control networks.

It is specifically engineered to handle high-density input/output (I/O) tasks while maintaining the rigorous safety standards required for industrial heating applications.

Technical Parameter Table

Unique Product Description

The "316" designation in the NLS300-CIM316 highlights its compatibility with 316 Stainless Steel environments and high-reliability sensors.

 Unlike standard interfaces, the CIM316 features Advanced Predictive Diagnostics.

It doesn't just pass data; it analyzes the signal integrity of connected loops to identify "noisy" lines or degrading sensors before they cause a system shutdown.

This "look-ahead" capability makes it a staple in 24/7 manufacturing environments where downtime is measured in thousands of dollars per minute.

Product Advantages and Features

High-Density Integration: Consolidates up to 16 loops of control into a single interface, drastically reducing panel wiring.

Network Versatility: Supports seamless integration with PLCs (Allen-Bradley, Siemens) via robust industrial protocols.

Fail-Safe Operation: Features independent watchdog timers that ensure the system enters a "safe state" if communication is lost.

Plug-and-Play Configuration: Modular hardware allows for quick field replacement without rewiring the entire system.

Enhanced Accuracy: Internal cold-junction compensation ensures temperature readings remain stable even in fluctuating ambient conditions.

Application Cases

Cleanroom Thermal Systems: Managing precise temperature profiles in semiconductor and pharmaceutical manufacturing.

Large-Scale Extrusion: Coordinating multiple heating zones on plastic extrusion lines to ensure uniform melt temperature.

Petrochemical Processing: Monitoring high-limit safety loops in volatile environments where 316-grade hardware is preferred for corrosion resistance.

Food & Beverage: Managing high-speed packaging and sealing bars where rapid thermal response is mandatory.

Installation and Maintenance

Installation

DIN Rail Mounting: Clip the module onto a 35mm DIN rail. Ensure there is at least 20mm of clearance above and below for ventilation.

Shielding: Use twisted-pair, shielded cable for all sensor inputs. Connect the shield to a clean earth ground at the module end only to prevent ground loops.

Address Setting: Configure the network address via the onboard DIP switches or software prior to powering the unit.

Maintenance

Firmware Updates: Periodically check for Watlow firmware updates to ensure compatibility with new network protocols.

Terminal Torque: Due to industrial vibration, check terminal screw tightness every 6 months to prevent signal drift.

Calibration Verification: Use a certified thermocouple simulator once per year to verify the 16-bit A/D accuracy.

Related Models in the Series

Pro Tip: When commissioning the NLS300-CIM316.

use the Watlow EZ-ZONE® Configurator software to map your I/O—it significantly reduces the time spent on manual register mapping.
