ADLINK NUPRO-780 PICMG Single Board Computers

ADLINK NUPRO-780 Industrial Motherboard

PICMG Single Board Computers

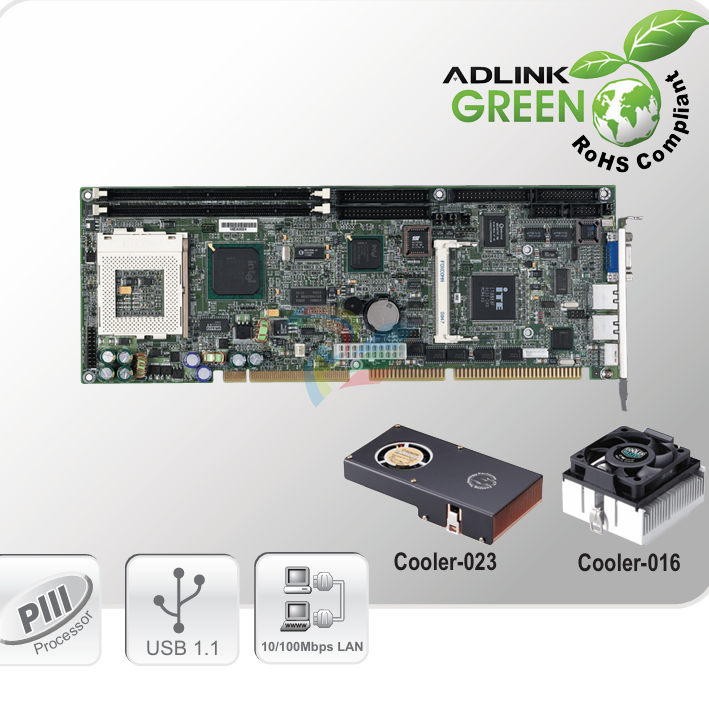

NuPRO-780 Series

Full-Size Intel® Pentium® III processor SBC with VGA/Fast Ethernet

Key Features

Uses longevity components supported by Intel Embedded roadmap

Supports all socket 370 based Intel® Pentium® III processor (1.26GHz) and Intel® Celeron® processors

MiniPCI extension capability

High drive ISA bus

ATX power connector for backplane-less applications

Full-Size Intel® Pentium® III Processor SBC with VGA, Fast Etherne

Ordering Information

IDE ATA-100. dual channels

Audio Integrated Audio Controllers with AC'97 interface, with optional DB

AC97S daughter board

USB Supports two USB ports via on-board pin-header connector

Compliant with USB Specification Rev. 1.1

Super I/O Winbond W83627HF, two 16C550 UART compatible RS-232 COM

ports with ESD protection up to 2KV

Printer port supported

ISA  High drive ISA capability

MiniPCI Interface One MiniPCI Rev 1.0 compatible Type III slot for function expansion

such as SCSI

Floppy Standard 34-pin connector

Hardware Monitoring Monitors CPU temperatures, FAN speed, system temperature and

Vcore and DC voltages

Watchdog Timer 1-255 sec or 1-255 min software programmable can generate system

resets

Form Factor Standard Full-Size PICMG CPU Card

PICMG 1.0

Dimensions 338mm x 122mm (L x W)

Operating Temp. 0 to 55˚C

Storage Temp. -20 to 80˚C

Compliance CE, FCC Class A

Display Intel 815E built-in hyper-pipelined architecture 3D graphics engine,

4MB Video Cache for optimized performance, AGP 4X, ACPI and

VESA compliant

External Power One ATX type connector for backplane-less applications

Connector

Model Number Description/Configuration

DB-AC97S Audio daughter board with Line-in, Line-out, MIC-in connectors

Cooler-016 Cooler for NuPRO-760/780

Cooler-023 Cooler for NuPRO-760/780 for 1U/1GHz CPU

Specifications

CPU Socket 370 based Intel® Pentium® III processor with FC-PGA2

packaging with 512KB on-die L2 cache @ full core speed & 133MHz FSB

Socket 370 based Intel® Pentium® III processor with FC-PGA

packaging with 256KB on-die L2 cache @ full core speed & 100/133MHz FSB

Socket 370 based Intel® Celeron® processor with FC-PGA packaging

with 128KB on-die L2 cache @ full core speed & 66/100MHz FSB

Socket 370 based VIA C3 processor with FC-PGA packaging with

64/128KB L2 cache @ full speed and 100/133MHz FSB

FSB 133MHz

Chipset Intel® 815E Integrated Graphics and Memory Control Hub (MCH), ICH2

RAM Two 168-pin DIMM sockets, Max. 512MB un-buffered PC-133

SDRAM

BIOS Award 4Mb flash memory
