ADLINK NuPRO-840 PICMG 1.0 industrial Single Board
❤ Add to collection

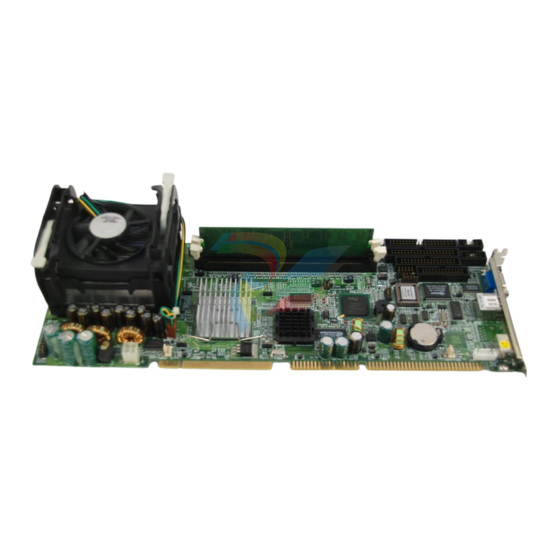

ADLINK NuPRO-840 PICMG 1.0 industrial Single Board

ADLINK NuPRO-840  PICMG 1.0 industrial Single Board

U.S.＄9680.00
U.S.＄8970.00
U.S.＄8521.50
U.S.＄8342.10
Weight：1.290KG
Quantity：
(Inventory: 2)
Buy now
Add to cart
Description

ADLINK NuPRO-840  PICMG 1.0 industrial Single Board

ADLINK NuPRO-840 Technical Guide & Overview

Product Overview

The ADLINK NuPRO-840 is a full-size PICMG 1.0 industrial Single Board Computer (SBC) designed for high-reliability industrial automation, embedded computing,

 measurement, and process control applications.

Supporting Socket 478 Intel Pentium 4 / Celeron processors with Front Side Bus (FSB) speeds up to 533/400 MHz, the NuPRO-840 delivers dependable performance across harsh operating environments.

Equipped with integrated VGA display, Gigabit Ethernet, Ultra ATA/100.

USB 2.0 interfaces, and onboard legacy I/O support, this CPU board provides a comprehensive compute platform for backward-compatible industrial control systems, legacy equipment retrofits, and long-lifecycle OEM deployments.

Technical Specifications

ConditionOperating Parameter
Operating Temperature0°C to 60°C (32°F to 140°F)
Operating Humidity10% to 90% RH (non-condensing)
Vibration Tolerance0.5 Grms, 5–500 Hz, 3 axes (random)
Shock Tolerance10 G peak acceleration, 11 ms duration

Environmental & Storage Conditions

Environmental Tolerance Conditions

ConditionOperating Parameter
Operating Temperature0°C to 60°C (32°F to 140°F)
Operating Humidity10% to 90% RH (non-condensing)
Vibration Tolerance0.5 Grms, 5–500 Hz, 3 axes (random)
Shock Tolerance10 G peak acceleration, 11 ms duration

Storage Conditions

ConditionStorage Parameter
Storage Temperature-20°C to 80°C (-4°F to 176°F)
Storage Humidity5% to 95% RH (non-condensing)
ESD SafeguardsAnti-static shielding bags in a clean, moisture-controlled area

Operating Instructions

Pre-Installation Checklist:

Ensure the industrial chassis and backplane are completely powered off and disconnected from mains supply.

Ground yourself using an anti-static wrist strap before handling the CPU board.

Processor & Memory Installation:

Install the Socket 478 processor and ensure proper thermal compound application before latching the CPU cooler.

Insert compatible DDR DIMM modules securely into the slots until side retention clips lock in place.

Card Slot Insertion:

Align the NuPRO-840 card edge with the target slot on the PICMG 1.0 passive backplane.

Firmly push down evenly on both ends of the board until the gold fingers are fully seated in the slot connectors.

Secure the retaining bracket with the top chassis mounting screw.

Cable & Interface Hookup:

Connect IDE storage drives, system front-panel pin headers (Power SW, Reset, HDD LED), and peripheral cables (VGA, USB, LAN, COM).

Power-On & BIOS Setup:

Supply power to the system, enter BIOS setup by pressing DEL during boot, set correct boot order, and configure IDE/SATA settings.

Fault Diagnosis & Troubleshooting

Symptom / FaultPossible CauseTroubleshooting Steps
No Power / No LEDLoose backplane connection or power failureCheck backplane power cables (+5V, +12V, +3.3V) and verify card seating in PICMG slot.
No Display OutputRAM improperly seated or incorrect BIOS settingsRe-seat DDR DIMM modules; clear CMOS jumper (JP1) and retry with standard VGA display.
System Beeps / Continuous AlarmMemory error or CPU overheatingVerify CPU fan connector, clean heatsink thermal grease, and test with known-good DDR memory.
Boot Drive Not FoundFaulty IDE ribbon cable or wrong BIOS drive orderInspect 40-pin IDE cabling, ensure master/slave pin configuration on drive, and reconfigure BIOS.
Ethernet DisconnectionsDriver incompatibility or duplex mismatchUpdate network adapter drivers in OS and check link LED status on the rear RJ-45 jack.

Related Models in the NuPRO Series

ADLINK NuPRO-820: Socket 370 / Pentium III level PICMG 1.0 SBC.

ADLINK NuPRO-841: Dual-Gigabit LAN variant of the NuPRO-840 series.

ADLINK NuPRO-842: Socket 478 SBC featuring Intel 865GV chipset with SATA support.

ADLINK NuPRO-935A: Next-generation PICMG 1.0 SBC supporting LGA775 Core 2 Duo processors.
