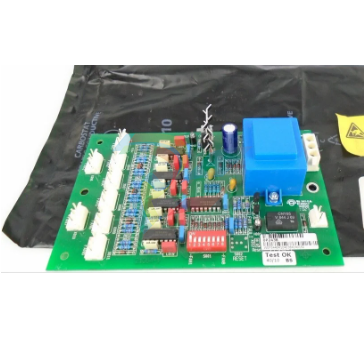

Schneider Electric GUTOR OP2438 Fan Monitor & Drive Protection Board

Schneider Electric GUTOR OP2438 Fan Monitor & Drive Protection Board

Introduction

The Schneider Electric GUTOR OP2438 (also cataloged as 0P2438) is a highly specialized, industrial-grade protection and infrastructure monitoring board engineered for Gutor’s elite Uninterruptible Power Supply (UPS) systems.

 Specifically designated as an 8-Channel Fan Monitor and Low Speed Protection Circuit Board, the OP2438 functions as a critical safeguard within the system's Rectifier and Inverter cooling subsystems.

By constantly tracking the exact rotation and low-speed limits of up to eight independent cooling assemblies, this board prevents localized thermal runaway in high-power semiconductor bridges (such as thyristors and IGBT modules), ensuring the uninterruptible power continuity required in high-consequence global infrastructure.

Technical Parameter Table

Related Models

The OP2438 integrates seamlessly alongside a standardized network of operational and signal interface modules within Gutor systems:

GUTOR OP2446: Main Control CPU Board (5 $mutext{s}$ Base Timing Controller)

GUTOR OP1922A: Parallel System Operating and Interface Card

GUTOR OP2447: XXW Interface Board (220V DC Ecosystem)

GUTOR OP2405A: Interface Fuse Monitoring and Control Board

GUTOR OC0950 / OC0920: Rectifier Modules and Power Semiconductor Units

Application Cases

Because thermal failure of a cooling system can cause severe downstream damage to power electronics, the OP2438 is deployed in highly demanding fields:

Petrochemical and Refining Facilities: Installed inside BOP (Balance of Plant) UPS enclosures to prevent inverter bridges from overheating amid hazardous gas environments.

Nuclear Power Generating Plants: Integrated within class 1E safety-critical systems to provide continuous telemetry on active cabinet ventilation.

Offshore Mining & Drilling Rigs: Functions flawlessly inside high-vibration, saline-heavy environments where mechanical fans are prone to accelerated bearing wear or stalling.

Heavy Industrial Switchgear Enclosures: Prevents static switch failures by locking down operations or signaling bypass alarms when ventilation drops past safe velocities.

Product Advantages and Features

Simultaneous 8-Channel Monitoring: Replaces multiple individual tachometer or current sensors by centralizing eight distinct cooling streams onto a single card.

Fail-Safe Interlocking Circuitry: Automatically provides discrete logic flags to the central CPU board (OP2446) the moment a cooling fan drops below a safe operational RPM.

Wide AC Input Tolerances: Universally engineered to operate cleanly on both 120V and 240V AC internal subsystem supply voltages.

Premium Component Longevity: Manufactured in Switzerland with high-specification multi-layer substrate design to survive decades of persistent thermal cycling.

Installation and Maintenance

Installation Guidelines

De-energize the Unit: Ensure the rectifier, inverter input, bypass, and associated DC battery banks are entirely locked out and isolated before accessing the controller chassis.

ESD Precautions: Use a calibrated grounding wrist strap. Handle the OP2438 exclusively by its PCB edges to avoid discharging static electricity onto internal logic arrays.

Tachometer/Sensor Alignment: Double-check that fan tachometer leads or speed sensing lines correspond neatly with the correct input terminal pins from Channel 1 through Channel 8.

Maintenance and Diagnostic Checklist

Low-Speed Alarms: If a "Low Fan Speed" fault occurs on a specific channel, check the corresponding ventilation unit for physical debris, bearing friction, or loose harness connections before replacing the monitoring card.

Surface Inspection: During scheduled preventive maintenance shutdowns, inspect the board for discoloration around high-voltage tracer points and ensure the surface is clear of conductive industrial soot.

Unique Product Description

Why Choose the Authentic Gutor OP2438?

In heavy-duty power engineering, structural cooling isn't a secondary luxury—it is a functional necessity.

The Schneider Electric Gutor OP2438 is engineered with precise Swiss manufacturing tolerances to eliminate false trips while remaining highly sensitive to genuine mechanical cooling decay.

 By preventing undetected fan stalling, it actively shields your primary inverter modules from thermal degradation, delivering a low total cost of ownership and true long-term grid protection.
