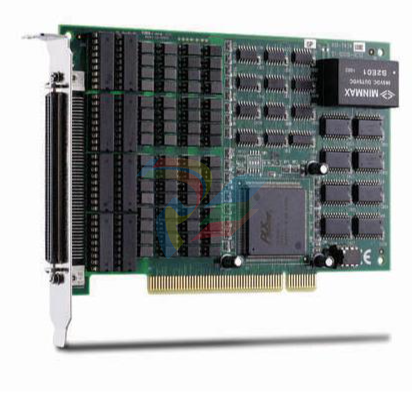

ADLINK PCI-7230/33/34 32-CH Isolated DIO PCI Cardsrd

ADLINK  PCI-7230/33/34 32-CH Isolated DIO PCI Cardsrd

Digital I/O

PCI-7230/33/34

32-CH Isolated DIO PCI Cards

Key Features

Supports a 32-bit 5 V PCI bus

16-CH isolated digital inputs & 16-CH isolated digital outputs (PCI-7230)

32-CH isolated digital inputs (PCI-7233)

32-CH isolated digital outputs (PCI-7234)

5000 VRMS optical isolation (PCI-7230 & PCI-7233)

Sink current up to 500 mA on each isolated output

ADLINK"s PCI-723X series are 32-CH isolated input and/or output cards which provide a 2.500 V optical isolation protection.

The wide input range of the PCI-7230 and PCI-7233 makes it easy to sense the status of external devices.

The non-polarity characteristic is suitable for a wide variety of industry applications.

The PCI-7230 and PCI-7234 devices also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications.

The PCI-7234P provides current-source output capability. The PCI-7230 and PCI-7233 also provide two interrupt sources on digital input channels.

The PCI-7233 also features a change-of-state (COS) function that generates an interrupt when any digital input changes its state.

Ordering Information

PCIe-7234P (EOL)32-CH Isolated DI Card with Source Current Transitor

PCI-723432-CH Isolated DO Card

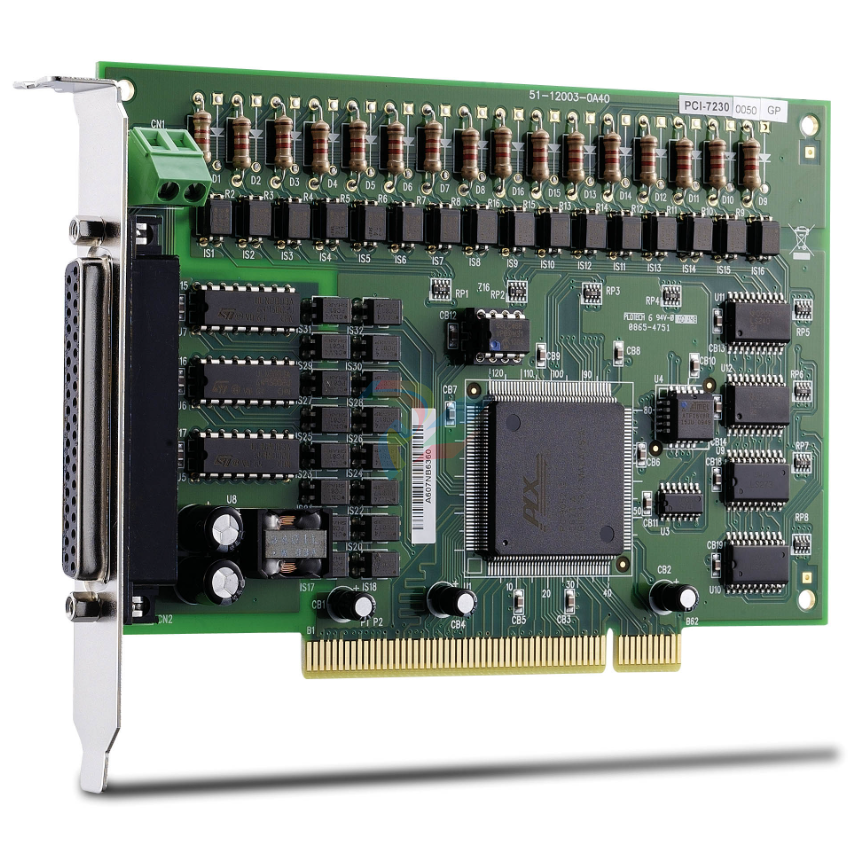

PCI-723016-CH Isolated DI & 16-CH Isolated DO Card

PCI-723332-CH Isolated DI Card with inversed input logic

Accessory

DIN-37D-01Terminal Board One 37-pin D-sub Connector and DIN-Rail-Mouting (Cables are not included)

ACLD-9137-01General-Purpose Terminal Board with One 37-pin D-sub Male Connector

ACL-10137-1MM37-pin D-sub male/male, 1M

Features

■ Supports a 32-bit 5 V PCI bus (PCI-7230/7233/7234/7234P)

■ Supports a 32-bit 3.3 V or 5 V PCI bus (LPCI-7230)

■    x1    lane    PCI    Express    Interface    (LPCIe-7230)

■    3U    Eurocard    form    factor,    CompactPCI    compliant

(PICMG 2.0 R2.1) (cPCI-7230)

■    16-CH    isolated    digital    inputs    &    16-CH    isolated    digital

outputs (PCI-7230/LPCI-7230/LPCIe-7230/cPCI-7230)

■ 32-CH isolated digital inputs (PCI-7233)

■ 32-CH isolated digital outputs (PCI-7234/7234P)

■ 5000 VRMS    optical    isolation    (PCI-7230    &    PCI-7233/cPCI-7230)

■ 2500 VRMS optical isolation (PCI-7234/7234P/LPCI-7230/

LPCIe-7230)

■ Sink current up to 500 mA on single isolated output

■    Two    external    interrupt    sources    (PCI-7230/LPCI-7230/

LPCIe-7230/cPCI-7230)

■ Change-of-state interrupt sources (PCI-7233)

■    Compact,    low-profile    PCI/PCI    Express®    size    PCB

(LPCI-7230/LPCIe-7230)

■ Operating Systems

• Windows 7/Vista/XP/2000/2003 Server

• Linux

■ Recommended Software

• AD-Logger

• VB.NET/VC.NET/VB/VC++/BCB/Delphi

• DAQBench

■ Driver Support

• DAQPilot for LabVIEW™

• DAQ-MTLB for MATLAB®

• PCIS-DASK for Windows

• PCIS-DASK/X for Linux
