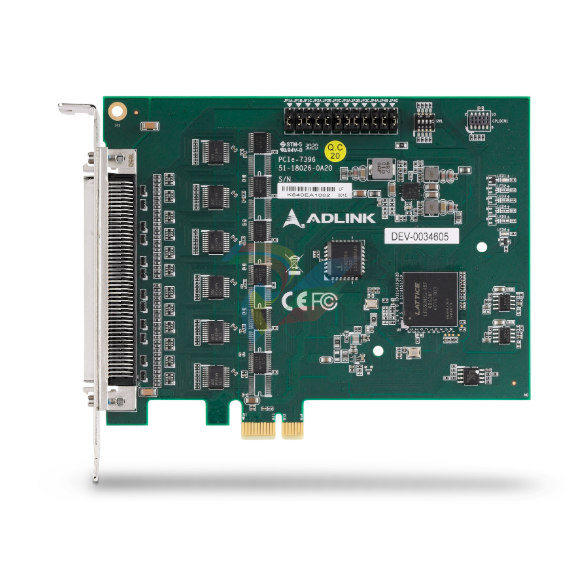

ADLINK Adlink Digital I/O PCI-7396

Adlink Digital I/O

PCI-7396

96-CH High-Driving DIO Card

Key Features

Output port status read back

Programmable port configuration as input or output

High driving capacity up to 48 mA (sink) and 15 mA (source)

96/48 -CH digital TTL inputs/outputs

Supports 32-bit 5 V PCI bus

On-board 8254 timer/counter chip

Change-Of-State (COS) interrupt

Multiple programmable interrupt sources

Last buy date: 2026/06/30

The PCI-7396 is 96-bit parallel digital input/output (DIO) cards designed for industrial applications.

The PCI-7396 emulates four 8255 Programmable Peripheral Interface (PPI) chips. Each PPI offers three 8-bit DIO ports which can be accessed simultaneously.

 The total 12/6 ports can be configured as input or output independently.

The PCI-7396 devices feature external trigger to latch the digital input data, and also provides "Change-of-State" (COS) interrupt, which means when any of the digital inputs changes its state, an interrupt will be generated.

Users can power up the PCI-7396 digital I/O lines in a user-defined state - either high or low, by simply setting the pull-high/pulllow resistors with a jumper.

Features

■ Supports a 32-Bit 5 V PCI bus

■ 96-CH digital TTL inputs/outputs (PCI-7396)

■High driving up to 48 mA (sink) and 15 mA (source)

■ Emulates 4/2 industry standard 8255 PPI (mode 0)

■ Ports are independently configurable as input or output

■ External latch signal available for digital inputs

■Output status read back

■ Known power-up states

■Onboard 8254 timer/counter chip

■ 1-CH 16-Bit event counter for external signal

■ 1-CH 32-Bit timer for timed interrupt generation

■ Change-of-state (COS) interrupt

■Multiple programmable interrupt sources

■ Compact, half-size PCB

■    Supported Operating System

•    Windows 7/8 x64/x86. Linux

■    Driver and SDK

•    LabVIEW, MATLAB, C/C++, Visual Basic,

Visual Studio.NET

■    Software Utility

•    AD-Logger

Interrupt

■ Interrupt #0 sources

•    P1C0

•    P1C3

•    16-Bit event counter

•    Change-of-state detection on any bit of PPI 1 & PPI 2

■ Interrupt #1 sources

•    P2C0

•    P2C3

•    32-Bit timer (based on 2 MHz internal clock),

•    Change-of-state detection on any bit of PPI 3 & PPI 4

General Specifications

■ I/O connector : One 100-pin SCSI-II female

■Operating temperature: 0˚C to 60˚C (32˚F to 140˚F)

■Storage temperature: -20˚C to 80˚C (-4˚F to 176˚F)

■Relative humidity: 5% to 95%, non-condensing

■Power requirements

Device

PCI-7396

■Dimensions (not including connectors)

158 mm x 107 mm (6.16” x 4.17”)
