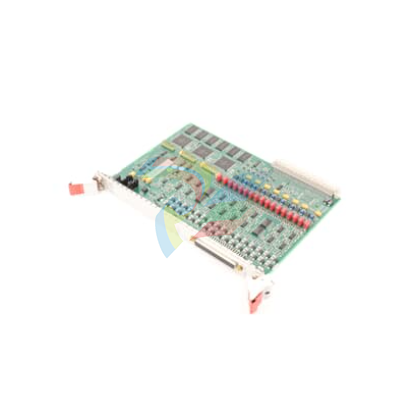

ABB PFSK151 3BSE018876R1 High-performance signal processing unit

The ABB PFSK151 (3BSE018876R1) is a high-performance Signal Processing Unit within the ABB Advant Controller series, specifically designed for tension measurement systems (Pressductor® Technology).

It serves as the "brain" that translates raw signals from load cells into usable data for industrial automation.

Technical Parameter Table

Product Advantages and Features

Precision Filtering: Advanced digital filtering eliminates mechanical noise and vibrations, ensuring stable tension readings even at high speeds.

Built-in Diagnostics: Constantly monitors the health of the connected load cells and internal circuitry, reducing unplanned downtime.

Plug-and-Play Integration: Designed specifically for the Advant OCS and Master systems, allowing for seamless communication.

Robust Isolation: High galvanic isolation protects the processor from electrical surges and industrial interference.

Application Cases

Paper & Pulp Mills: Managing web tension in paper machines to prevent breaks and ensure consistent winding.

Steel Processing: Monitoring strip tension in rolling mills and galvanizing lines to maintain product thickness and quality.

Converting & Printing: Controlling tension for plastic films, foils, and high-speed printing presses.

Textile Industry: Ensuring uniform tension during fabric dyeing and finishing processes.

Unique Product Description

The PFSK151 stands out because of its heritage in Pressductor® technology. Unlike standard strain gauge processors, this unit is engineered to handle the high-output,

low-impedance signals characteristic of ABB’s heavy-duty transducers. It doesn't just "read" data; it interprets the physical stress of industrial machinery with surgical precision,

making it the gold standard for harsh environments where reliability is non-negotiable.

Installation and Maintenance

Installation

Mounting: Secure the unit onto a standard 35mm DIN rail. Ensure at least 20mm of clearance for airflow.

Wiring: Use shielded twisted-pair cables for signal inputs to minimize EMI. Ensure the 24V DC power supply is stable.

Grounding: Connect the PE (Protective Earth) terminal directly to the common ground busbar.

Maintenance

Calibration: It is recommended to perform a zero-point calibration annually or after any mechanical changes to the load cell mounting.

Cleaning: Ensure the cooling vents remain free of dust and debris, especially in paper or textile environments.

Firmware: Periodically check for compatibility updates if upgrading the master controller system.

Related Models & Same Series

Related Component Models

PFTL 101B: Horizontal Load Cell often paired with this unit.

PFRL 101C: Radial Load Cell for narrow web applications.

PFCL 201: Vertical Pillar Load Cell.

Other Models in the Same Series

PFSK 152: Dual-channel version with expanded I/O capabilities.

PFSK 101: Legacy signal processing board for older Advant systems.

PFEA 111/112: Modern compact tension electronics (the current evolution of the PFSK series).
