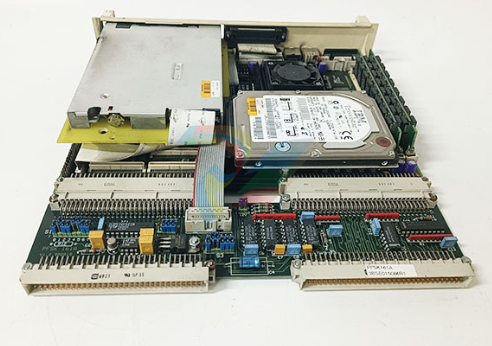

ABB PFSK162 3BSE015088R1 Signal Conditioning and Processing Board

The ABB PFSK162 (3BSE015088R1) is a high-performance Signal Conditioning and Processor Board designed for advanced tension measurement and communication within ABB’s industrial automation ecosystems (specifically the Advant and MasterPiece series).

It serves as an upgraded, multi-functional hub for processing transducer signals and managing complex I/O tasks.

Technical Parameter Table

Product Advantages and Features

Integrated Communication: Unlike simpler models, the PFSK162 includes an Ethernet port and dual serial interfaces, allowing it to act as a communication bridge between field sensors and enterprise networks.

High-Density I/O: Provides 8 digital inputs and 8 digital outputs on-board, reducing the need for separate I/O modules in the rack.

Precision Excitation: Features a built-in regulated excitation unit for Pressductor® load cells (PFCL, PFTL, PFRL series), ensuring stable measurements even with long cable runs.

Self-Diagnostics: Advanced fault detection for load cell health, signal clipping, and communication timeouts.

Modular Scalability: Supports expansion slots for additional functional modules or interfaces.

Application Cases

Power System Excitation: Used as a control motherboard for generator excitation units to ensure stable power output and voltage quality.

High-Speed Metal Rolling: Ideal for steel and aluminum mills where sub-millisecond tension adjustments are required to prevent strip breakage.

Paper & Film Processing: Manages complex tension zones in paper machines and plastic film extruders that require coordinated multi-channel I/O.

Automated Production Lines: Acts as a distributed control card in DCS environments for real-time monitoring of sensors and actuators.

Unique Product Description

The PFSK162 (3BSE015088R1) is often referred to as a "Server Computer Board" within the ABB tension hierarchy. While the 151/152 models are primarily signal converters,

the 162 is a full-featured processor. It doesn't just convert signals; it can execute complex control algorithms and manage high-speed data exchange via Ethernet.

It is the preferred choice for modernizing legacy Advant systems that require networked data access.

Installation and Maintenance

Installation

Mounting: Designed for sub-rack installation. Ensure all backplane pins are aligned before seating the module.

Cabling: Use high-quality shielded cables for load cell excitation to prevent crosstalk.

Thermal Management: Ensure the cabinet has active cooling if the board is mounted in a high-density rack, as the processor generates more heat than basic I/O cards.

Maintenance

Calibration: Utilize the service RS-232 port for digital calibration and gain adjustment.

Zero-Point Taring: Perform an electronic zero-set annually to compensate for mechanical aging of the rollers.

Firmware: Check for software updates if integrating into a newer 800xA control environment.

Other Models in the Same Series

Related Models

Transducers: PFCL 301E, PFTL 301E, PFRL 101. PFTL 101.

DCS Components: Advant Controller 450. MasterPiece 200. S800 I/O modules.
