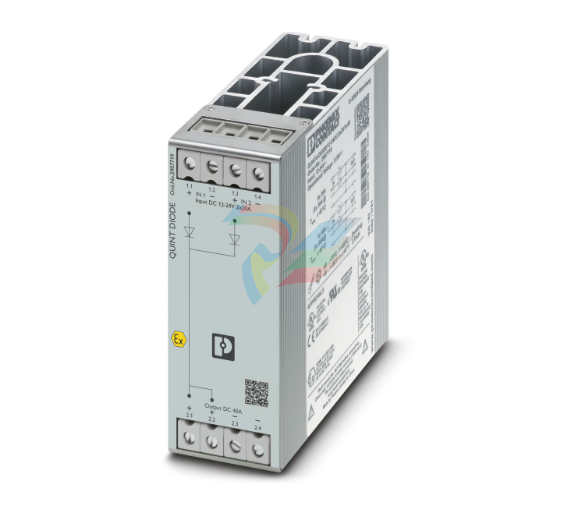

Phoenix 2907719 QUINT4-DIODE/12-24DC/2X20/1X40 - Redundancy module

QUINT4-DIODE/12-24DC/2X20/1X40 - Redundancy module

2907719

DIN rail diode module 12-24 V DC/2x20 A or 1x40 A. Uniform redundancy up to the consumer.

A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another.

 To further increase system availability, QUINT DIODE provides the solution: decoupling with diode.

Nominal input voltage range    12 V DC ... 24 V DC

Input voltage range    10 V DC ... 30 V DC

Voltage type of supply voltage    DC

Reverse polarity protection    yes, < 60 V

Nominal input current (IN)    2x 20 A (-40 °C ... 60 °C)

1x 40 A (-40 °C ... 60 °C)

Maximum current Imax    2x 30 A (-40 °C ... 40 °C)

1x 60 A (-40 °C ... 40 °C)

Input current IStatic    2x 25 A (40 °C)

Input current IDynamic    2x 30 A (5 s)

Input current ISFB    2x 120 A (15 ms)

Nominal input current (IN)    2x 20 A (-25 °C ... 60 °C)

1x 40 A (-25 °C ... 60 °C)

Maximum current Imax    2x 30 A (-25 °C ... 40 °C)

1x 60 A (-25 °C ... 40 °C)

Transient surge protection    Varistor

Voltage drop, input/output    0.5 V

Efficiency    > 97 %

Nominal output voltage    UIn - 0.5 V

Nominal output current (IN)    40 A (Increasing power)

20 A (Redundancy)

Static Boost (IStat.Boost)    45 A

Dynamic Boost (IDyn.Boost)    60 A (5 s)

Selective Fuse Breaking (ISFB)    120 A (15 ms)

Derating    60 °C ... 70 °C (2.5 %/K)

Power loss nominal load max.    10 W (IOUT = 20 A)

Connection in series    no

Connection method    Screw connection

Conductor cross-section, rigid min.    0.5 mm²

Conductor cross-section, rigid max.    16 mm²

Conductor cross-section flexible min.    0.5 mm²

Conductor cross-section flexible max.    16 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    6

Stripping length    10 mm

Screw thread    M4

Tightening torque, min    1.2 Nm

Tightening torque max    1.5 Nm

Product family    QUINT DIODE

MTBF (IEC 61709. SN 29500)    40000000 h (40 °C)

LED    no

Insulation characteristics

Protection class    III

Degree of pollution    2

Mounting type    DIN rail mounting

Assembly note    alignable: PN ≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically

alignable: PN <50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom

Mounting position    horizontal DIN rail NS 35. EN 60715

Flammability rating according to UL 94 (housing / terminal blocks)    V0

Housing material    Metal

Housing material    Aluminum / stainless steel

Degree of protection    IP20

Ambient temperature (operation)    -40 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)

Ambient temperature (storage/transport)    -40 °C ... 85 °C

Maximum altitude    ≤ 5000 m

Climatic class    3K22 (in accordance with EN 60721-3-3)

Max. permissible relative humidity (operation)    ≤ 95 % (at 25 °C, non-condensing)

Shock    18 ms, 30g, in each space direction (according to IEC 60068-2-27)

Vibration (operation)    < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)

15 Hz ... 150 Hz, 2.3g, 90 min.

Temp code    T4 (-25 ... +70 °C; > 60 °C, Derating: 2.5 %/K)

tandard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations    EN 50178/VDE 0160 (PELV)

Standard - Electrical safety    EN 60950-1/VDE 0805 (SELV)

Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment    EN 50178

Standard – Safety extra-low voltage    IEC 62368-1 (SELV) und EN 60204-1 (PELV)

Standard - Safe isolation    DIN VDE 0100-410

Shipbuilding approval    DNV

UL approvals    UL/C-UL listed UL 508

UL/C-UL Recognized UL 60950-1

UL ANSI/ISA-12.12.01 Class I, Division 2. Groups A, B, C, D T3C ... T4 (Hazardous Location)

Electromagnetic compatibility    Conformance with EMC Directive 2014/30/EU

Low Voltage Directive    Conformance with Low Voltage Directive 2014/35/EC

EMC requirements for noise emission    EN 61000-6-3

EN 61000-6-4

EMC requirements for noise immunity    EN 61000-6-1

EN 61000-6-2

Standards/regulations    EN 61000-6-3

Radio interference voltage in acc. with EN 55011    EN 55011 (EN 55022) Class B, area of application: Industry and residential

Emitted radio interference in acc. with EN 55011    EN 55011 (EN 55022) Class B, area of application: Industry and residential
