The Rail Switches – RS2-3TX/2FX EEC– RS2-3TX/2FX-SM EEC– RS2-4TX/1FX EEC – RS2-4TX/1FX-ST EEC– RS2-4TX/1FX-SM EEC– RS2-4TX EEC

in short RS2-xTX/xFX EEC, are switches

especially designed for use in industrial

environments. They support Ethernet 10

MBit/s and Fast Ethernet 100 MBit/s.

The Rail Switch modules support switched

Ethernet networks in accordance with IEEE

standard 802.3 using copper and fiber optic

technology. The switch modules are plug

ged onto the standard DIN rail.

The RS2-3TX/2FX… modules have three

10/100 MBit/s twisted pair ports

(10/100BASE-TX, RJ45 connectors) and two

100 MBit/s fiber optic ports (100BASE-FX,

Duplex SC connector).

It is possible to connect up to three DTEs or

other TP/TX network segments to the TP/TX

ports using twisted pair cabling. Two further

DTEs or optical network components can be

connected to the fiber ports.

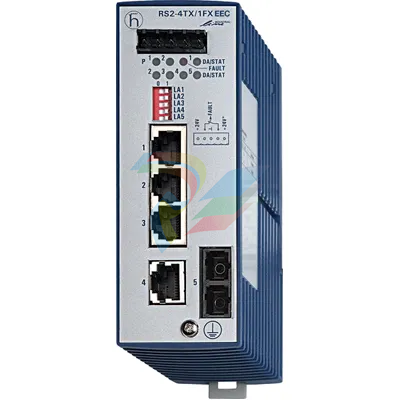

The RS2-4TX/1FX… modules have four

10/100 MBit/s twisted pair ports

(10/100BASE-TX, RJ45 connectors) and one

100 MBit/s fiber optic port (100BASE-FX,

Duplex SC connector or ST connector on

R2-4TX/1FX-ST EEC).

The RS2-4TX EEC module has four

10/100 MBit/s twisted pair ports

(10/100BASE-TX, RJ45 connectors).

It is possible to connect up to four DTEs or

other TP/TX network segments to the TP/TX

ports using twisted pair cabling. One further

DTE or optical network component can be

connected to the fiber port (with RS2

4TX/1FX…).

The TP ports support auto negotiation,

autopolarity and autocrossing.

The fiber optic ports support full duplex

(FDX).

The performance features described here

are binding only if they have been expressly

guaranteed in the contract. We have

checked that the contents of the technical

publication agree with the hardware and

software described. However, it is not possi

ble to rule out deviations completely, so we

are unable to guarantee complete agree

ment. However, the details in the technical

publication are checked regularly. Any cor

rections which prove necessary are contai

ned in subsequent editions. We are grateful

for suggestions for improvement.

We reserve the right to make technical

modifications.

Permission is not given for the circulation

or reproduction of this document, its use or

the passing on of its contents unless gran

ted expressly. Contravention renders the

perpetrator liable for compensation for

damages. All rights reserved, in particular

in the case of patent grant or registration of

a utility or design.

Copyright

© Hirschmann

Automation and Control GmbH 2015

All Rights Reserve

Note

We would point out that the content of

these operating instructions is not part of,

nor is it intended to amend an earlier or exi

sting agreement, permit or legal relation

ship. All obligations on Hirschmann arise

from the respective purchasing agreement

which also contains the full warranty condi

tions which have sole applicability. These

contractual warranty conditions are neither

extended nor restricted by comments in

these operating instructions.

We would furthermore point out that for

reasons of simplicity, these operating

instructions cannot describe every

conceivable problem associated with the

use of this equipment. Should you require

further information or should particular

problems occur which are not treated in

sufficient detail in the operating instruc

tions, you can request the necessary infor

mation from your local Hirschmann sales

partner or directly from the Hirschmann

office (address: refer to chapter entitled

„Notes on CE identification“)
