HIRSCHMANN RSPE30-24044O7T99-SCCV999HHSI2SXX.X.XX Switch

HIRSCHMANN RSPE30-24044O7T99-ECCP999HHSE2A08.1.00

Product Introduction / Overview

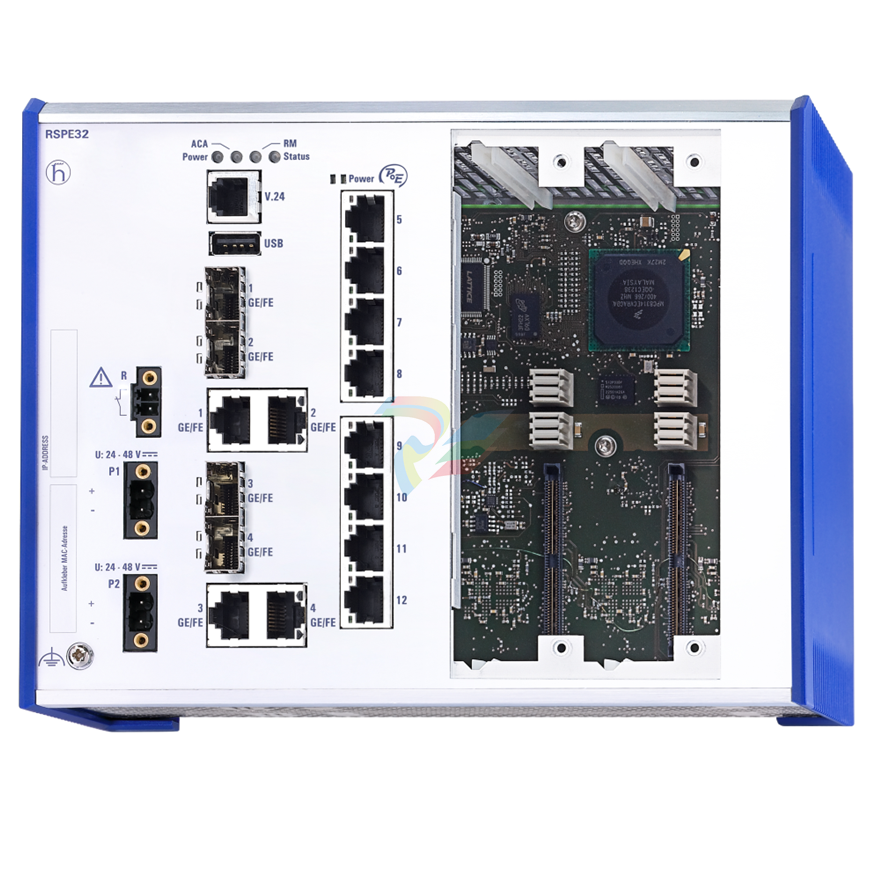

The Hirschmann RSPE30-24044O7T99-ECCP999HHSE2A08.1.00 is an industrial-grade, fanless managed Ethernet switch from Belden's Rail Switch Power Enhanced (RSPE) family. Designed for mission-critical infrastructure—such as power substations, smart grids, and heavy automation environments—this modular switch features 12 base ports expandable up to 28 ports via media expansion slots.

Running on Hirschmann's HiOS Layer 2 Enhanced software framework, the RSPE30 provides advanced redundancy protocols, robust cybersecurity features, and precise time synchronization.

Technical Table

Environmental Tolerance Conditions

Operating Temperature: Standard range 0°C to +60°C (Note: Extended EEC versions support -40°C to +70°C).

Relative Humidity: 10% to 95% (Non-condensing).

EMC Immunity: Certified to IEC 61850-3 and IEEE 1613 substation standards; high resistance to electrostatic discharge (EN 61000-4-2) and surge voltages (EN 61000-4-5).

Vibration & Shock Stability:

Vibration: IEC 60068-2-6 compliant (1 mm at 2 Hz–13.2 Hz; 0.7 g at 13.2 Hz–100 Hz).

Shock: IEC 60068-2-27 compliant (15 g, 11 ms duration).

Operating Instructions

Power Delivery: Connect dual independent 24–48 V DC supply feeds to the 3-pin plug-in terminal blocks to establish seamless power redundancy.

First-Time IP Assignment:

Attach an Ethernet cable from your setup PC to any active RJ45 port.

Run the Hirschmann HiDiscovery utility or use a BOOTP/DHCP server to locate the device's MAC address and set a management IP.

Web / CLI Management: Navigate to the assigned IP via HTTPS or SSH, log in using administrator credentials, and set a custom password.

Configuration Backup: Use an ACA22 (USB) or ACA31 (SD-Card) Auto-Configuration Adapter to store system backups, enabling rapid zero-reconfiguration replacement if hardware is swapped.Fault Diagnosis

The switch includes hardware and software diagnostic tools to maintain network uptime:

Hardware LED Indicators:

Power LEDs (P1/P2): Solid Green = Normal power input; Red/Off = Power failure on corresponding terminal.

Fault Contact Relay: Automatically triggers an external alarm circuit if power supply fails or a configured port link goes down.

Link/Data LEDs: Green = Active link; Flashing = Packet transmission activity.

Network & Software Diagnostics:

Syslog & Persistent Logging: View system events logged internally or saved to an ACA adapter.

Signal Contact Monitoring: Real-time software notification when monitored ports lose connection.

Built-in Tools: Integrated Copper Cable Testing, SFP Transceiver Diagnostic Management, and Port Mirroring (1:1 and N:1).

Related Models of the Same Series

The Hirschmann RSPE modular platform includes several hardware configurations depending on media slot counts, redundancy protocols, and software layers:

RSPE30 Series: Base switch platform with Fast/Gigabit combo ports and Fast Ethernet downlinks.

RSPE32 Series: Enhanced basic platform offering additional hardwired combo interface options.

RSPE35 Series: Advanced variant adding support for Time-Sensitive Networking (TSN) alongside PRP and HSR protocols.

RSPE37 Series: High-end version supporting Full Gigabit switching throughput across all expansion modules.

RSPM Series Media Modules: Field-installable expansion cards (e.g., RSPM20-8TX for adding 8 x RJ45 copper ports or optical SFP media expansion).

Storage Conditions

Storage Temperature: -40°C to +70°C (-40°F to +158°F).

Storage Humidity: 10% to 95% relative humidity (non-condensing).

Protection Requirement: Keep stored inside the original anti-static IP20 transport packaging in a dry, climate-controlled environment free of conductive dust, corrosive chemicals, and excessive mechanical shocks.
