SEL SEL-3390E4 Network Adapter Card

SEL-3390E4

Network Adapter Card

The SEL-3390E4 Ethernet Network Adapter Card is a 10/100/1000 Mbps PCI Express (PCIe) expansion card that is compatible with SEL-3355 and SEL-3360E computing platforms as well as SEL-3555 and SEL-3560E Real-Time Automation Controllers (RTACs).

It is designed, built, and tested for use in harsh industrial and substation environments, providing a wide operating temperature range and immunity to ESD, shock, and vibration.

It can also be ordered with conformal coating for corrosion immunity. The SEL-3390E4 complies with the PCIe form-factor and can also be installed in other PCIe-compliant computers and controllers.

Gigabit High-Speed Ethernet Ports

Communicate over Ethernet connections using the four independent Gigabit Ethernet ports capable of 10. 100. and 1000 Mbps connection speeds.

Each port has a unique media access control (MAC) address, allowing connections to as many as four independent Ethernet networks.

Copper and Fiber-Optic Connections

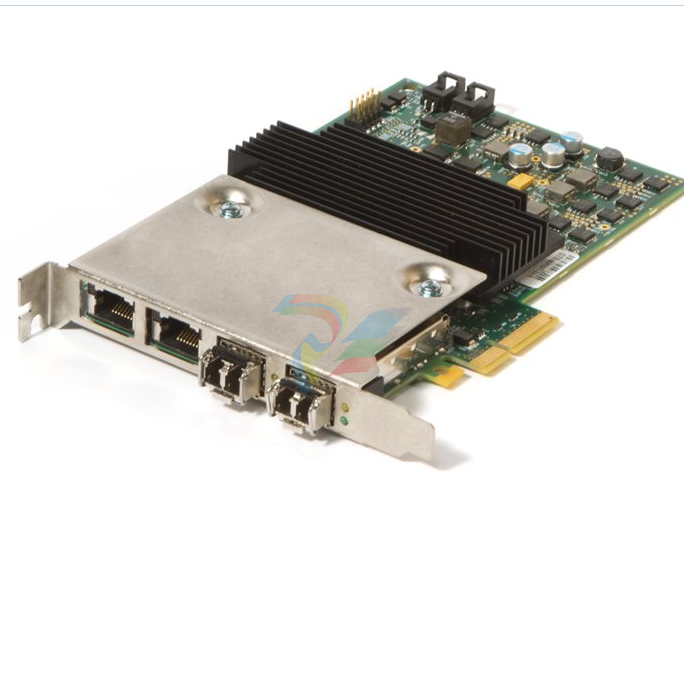

Connect to copper 10/100/1000BASE-T and fiber-optic 100BASE-FX and 1000BASE-X networks. SFP fiber-optic modules enable flexibility and mixed-network connections. Three different port configurations are available: four RJ45 copper ports, four LC SFP fiber-optic ports, or two RJ45 and two SFP ports.

Conformal Coating

Protect circuitry from hazards, such as chemicals, vibration, moisture, salt spray, humidity, fungus, and corrosion, with this durable protective coating that extends the working life of the PCB and components.

Reliability

Apply in harsh substation environments. The SEL-3390E4 exceeds IEEE 1613. IEEE C37.90. and IEC 60255 protective relay standards.

The card provides reliable operation from –40º to +75ºC (–40º to +167ºF) and is backed by SEL’s ten-year warranty and highly rated technical support.
