SEL SEL-5030 acSELerator QuickSet Software

SEL-5030

acSELerator QuickSet Software

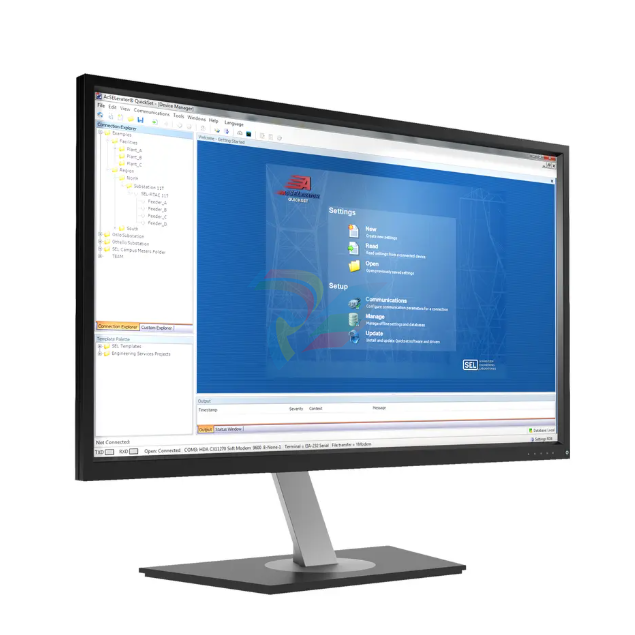

acSELerator QuickSet SEL-5030 Software is a tool for engineers and technicians to quickly and easily configure, commission, and manage devices for power system protection, control, metering, and monitoring.

QuickSet Device Manager, included as a free, optional expansion pack, provides additional device management, control, and versioning capabilities.

Budgetary Retail

Included With Supported Products、

Optimal Settings Design

View the logical settings groups presented by QuickSet to quickly identify related device settings. QuickSet automatically verifies these settings to ensure they are in range and permitted.

Reduce Design Time

Generate custom logic with the Graphical Logic Editor (GLE). Simplify logic configuration in supported relays with drag-and-drop tools for creating diagrams and SELogic control equations specific to your application.

Centralized Device Manager

Organize the numerous devices and their related data in a central location enabling improved collaboration.

Standardized New Device Deployment

Reduce human error when deploying new devices through the use of the Template Palette. Jumpstart configuration of new devices through the use of predefined templates that match your company’s standards.

Bay Screen Design

Use the new acSELerator Bay Screen Builder Software to take control of the bay screen design, management, and deployment for your SEL devices supporting a touchscreen display. Work with Bay Screen Builder to customize bay screens according to your standards and to eliminate constraints associated with a fixed, noncustomizable set of bay screens provided with your device. Additionally, leverage the availability of both ANSI and IEC symbols in the design software to expand your ability to support a wide variety of projects.

Graphical Logic Editor (GLE)

To make designing custom logic even easier, the GLE provides an intuitive CAD interface for developing device logic in a format similar to IEC 61131 function block diagrams. Simplify logic configuration in supported relays with drag-and-drop tools for creating diagrams and SELogic control equations specific to your application. The function block diagrams can be saved or printed to provide a permanent engineering record of logic designs.

Firmware Loader

Save time with automated firmware management that is fast and simple. Up-to-date firmware is important to ensure you have the latest standards and protection in a constantly evolving industry. The firmware loader makes it easy to upgrade or downgrade firmware in connected devices while maintaining device settings.

Human-Machine Interface (HMI)

Obtain pertinent device data locally or remotely with the customizable HMI. Automatic live updates provide fast visual information and eliminate the need to rely on command line inputs. View operational status or history at your convenience, and make adjustments as needed. Verify and analyze device performance with a graphical representation of digital and analog information. HMI interfaces are specific to each device.

QuickSet Design Templates

Quickly and confidently deploy new and existing devices by distributing QuickSet Design Templates for consistent setup and reduced configuration times. Create custom templates to lock settings so they match your standards or to lock and hide unused settings. This simplifies new installations and helps avoid entry errors. QuickSet Design Templates is a licensed feature of QuickSet, please contact your customer service representative for more information.

Asset Management

Associate all related device information with the physical asset and structure the devices to mimic their structure in your system. The QuickSet Device Manager houses the important device related information, which may include device specific settings, protection settings, communication methodologies, one-line diagrams, and commissioning templates. Access to this data is secured through individually defined user credentials.

Reconcile Differences

Reduce manual management and oversight during device configuration. Use the Device Manager to house device settings throughout the configuration process. When collaborating with coworkers, be assured that you know what differences exist between versions by using the built-in comparison and merge reports.

QuickSet Device Management for Workgroups

Increase productivity and save time with QuickSet Device Management for Workgroups by enabling various members of your workgroup to access and work from a centralized database securely. Any member of your team can make changes to the configuration, compare settings, create custom versions of IED settings, and use any other features of Device Manager while having the most up-to-date information at all times. QuickSet Device Management for Workgroups is a plugin available to all QuickSet users. Please contact your customer service representative for more information about Device Management for Workgroups.

Design, Manage, and Deploy Custom Bay Screens for Supported Devices

Plan your own bay screen development to eliminate the restrictions associated with only vendor-provided bay screens for your device. Work with the easy-to-use and intuitive acSELerator Bay Screen Builder Software to accomplish the task. The design software supports both ANSI- and IEC-type symbols, enabling you to be more flexible in the design of your bay screens. Please note that you can only design and deploy the custom bay screens created using Bay Screen Builder for SEL relays with a touchscreen display.
