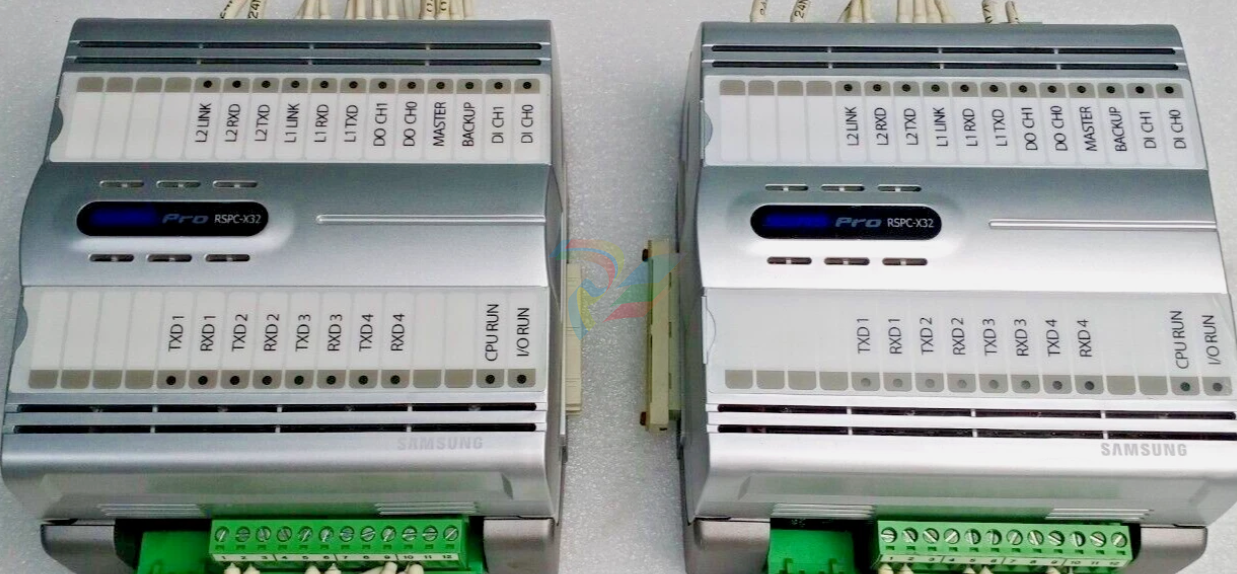

SAMSUNG SSAS-PRO RSPC-X32 ALARM AND MONITORING SYSTEM MODULE

SAMSUNG SSAS-PRO RSPC-X32 Alarm and Monitoring System Module

Introduction

The SAMSUNG SSAS-PRO RSPC-X32 is a high-performance Remote Signal Processing Card (RSPC) designed for the SSAS-PRO (Samsung Ship Automation System).

 This module serves as a critical node in maritime and industrial alarm monitoring systems (AMS). It functions by collecting, processing,

 and transmitting real-time sensor data—such as temperature, pressure, and level signals—to the central control unit. Engineered for rugged environments,

the RSPC-X32 ensures high reliability and rapid response times for mission-critical monitoring.

Technical Parameter Table

Related Models

RSPC-X16: 16-channel variant for smaller scale monitoring.

SSAS-PRO MPC: Main Processing Unit for system logic.

SSAS-PRO DI-32: Dedicated 32-channel digital input module.

SSAS-PRO AO-08: 8-channel analog output module.

Application Cases

Maritime Engine Room Monitoring: Used in large container ships to monitor main engine exhaust temperatures and cooling water pressure.

Cargo Handling Systems: Integrated into LNG carriers for tank pressure and boil-off gas (BOG) monitoring.

Industrial Power Plants: Deployed in remote substations for auxiliary equipment alarm management.

Ballast Water Management: Monitoring valve statuses and pump performance during ballasting operations.

Product Advantages and Features

High-Density Monitoring: 32 channels in a compact form factor significantly reduce cabinet space requirements.

Redundant Communication: Supports dual-bus communication to ensure data integrity even if one line fails.

Marine Grade Durability: Designed to withstand high vibration, humidity, and electromagnetic interference (EMI).

Hot-Swappable Design: Allows for module replacement without shutting down the entire monitoring system, minimizing downtime.

Self-Diagnostic Logic: Built-in LEDs and software flags to detect internal hardware faults or sensor open-circuit conditions.

Installation and Maintenance

Installation: Ensure the module is mounted on a grounded 35mm DIN rail. Maintain a minimum of 20mm clearance between modules for optimal heat dissipation.

Wiring: Use shielded twisted-pair cables for analog signals to prevent signal noise.

Maintenance: Regularly check the terminal block tightness and inspect for any signs of oxidation in saline environments. Update firmware only through authorized SSAS-PRO software interfaces.

Unique Product Description

The SAMSUNG RSPC-X32 stands as a cornerstone of modern integrated automation. Unlike standard PLCs, the SSAS-PRO series is purpose-built for the rigorous demands of the "Digital Ship."

It bridges the gap between raw field instrumentation and sophisticated HMI visualization. With its 32-channel capacity, the RSPC-X32 streamlines complex wiring into a cohesive,

manageable data stream, providing operators with the precision needed to maintain safety and efficiency in high-stakes industrial environments.

Other Models in the Same Series

SSAS-PRO AI-16 (Analog Input Module)

SSAS-PRO DO-32 (Digital Output Module)

SSAS-PRO RTD-08 (Resistance Temperature Detector Module)

SSAS-PRO COMM-02 (Communication Interface Card)
