Stucke Elektronik SYMAP® Compact Digital protection and control equipment

SYMAP® Compact

SYMAP®Comapct is a digital protection and control device for low-voltage and medium-voltage systems, equipped with three powerful processors, and provides comprehensive protection functions for generators, motors (synchronous and asynchronous), transformers, power lines, and distribution systems.

 The protection functions can be activated and used simultaneously without any restrictions.

To ensure maximum flexibility during the debugging and usage process, both digital and analog outputs can be connected to the main control panel through SYMAP®Compact+.

 Additionally, SYMAP®Compact+ can communicate with site control technology through various serial interfaces and different data protocols. The device's rich programming options and user-friendly operating system make the application selection more extensive and cost-effective. Application

Digital protection and control systems for power generation and distribution systems for low, medium and high voltage applications

SYMAP® Compact

Protection and control device applicable to safety levels F0. F1. F2. F3 and F4 and generator protection type GC

SYMAP®Compact+

Suitable for protection and control devices with safety levels +F1. +F2. +F3 and +F4. as well as generator protection types with enhanced measurement and communication functions +GC

Application

Overvoltage protection

Differential protection

Generator protection, control and monitoring

Feeder protection, control and monitoring

Transformer protection

Motor protection

Distance protection

Reducer protection

Voltage and frequency protection

Synchronization check Automatic synchronization

Concurrency and protection

Dynamic grid support

RING protection and communication redundancy

Protection for low-voltage and medium-voltage soft starters

GCP generator control panel SYNC+P

Bay area control

Power generation and power plant controller (EZA/EZE) Characteristic

Stainless steel casing, aluminum front panel

Shallow and deep - with terminal plug depth of 90 millimeters

3 status LED lights

Full-color touch screen display

Remote display/separate human-machine interface (optional)

Customizable menu interface

Multi-language HMI

8 programmable LED lights

Plug-and-play connection

Can be expanded via additional I/O boards

USB connection as standard

RS 485 standard, Modbus RTU

Control and interlock of up to 8 switch elements

IEC: 61850. 60870-5-103. 104. Modbus RTU/TCP, Profibus DP, CANBUS

Up to 5 communication protocols can be used simultaneously

High-speed goose

4 processors, ensuring ultimate reliability and speed

Self-diagnosis

Various protection functions included in the standard version

4 independent protection setting groups

Independent and simultaneous protection for CT1 and CT2

Event-driven architecture system with strong scalability

Easy-to-use SYMAP® compact parameter tool

General features:

Based on U/I measurement input to achieve the maximum protection function

Small machine state

Conformity testing according to VDE 4110 and 4120

Color touch screen

Multi-language HMI

Can be expanded through additional I/O boards

Reactive power undervoltage protection (QU)

Power plant controller (EZA) - SYMAP®Compact+

Special features of SYMAP®Compact+GC:

Reactive power under-voltage protection (QU)

Independent overcurrent hysteresis protection (UMZ)

Network and system protection (NA)

Distance protection ANSI 21

Power plant controller (EZA)

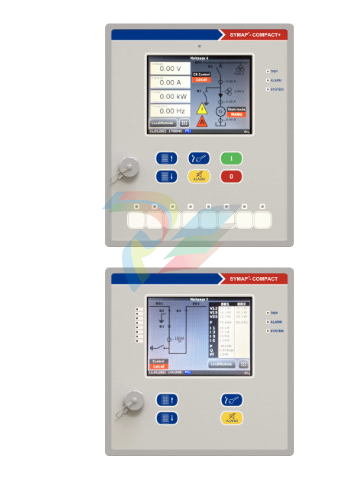

SYMAP®Compact+ HMI is highly customizable and user-friendly.

Display

Large full-color touch screen, with a user-friendly interface

User-defined function keys

4 configurable user pages: single line, measurement indication, text, button, bar chart, graphics, configurable background, graphic elements, button color, page links...

Adjustable parameters through HMI

Password protection for access and user-level roles Key

Touch screen and buttons on the front panel

LED (standard component)

8 programmable LEDs (optional key buttons)

3 status LEDs (system and user programmable status)

Graphical programmable LED lights on the touch screen Options

6 programmable LEDs.

Switch function (optional)
