ABB UUD148AE02 | 3BHE014185R0002 High-Performance UNITROL Control Module

ABB UUD148AE02 | 3BHE014185R0002: High-Performance UNITROL Control Module

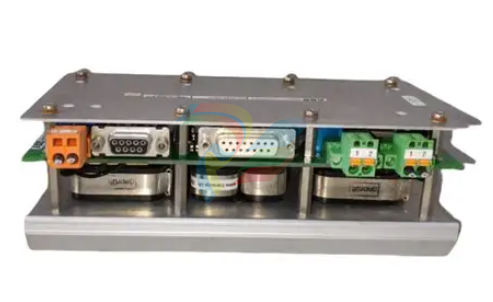

The ABB UUD148AE02 (Part Number: 3BHE014185R0002) is a sophisticated electronic control board belonging to the UNITROL® series,

specifically designed for advanced excitation systems and power electronics applications.

his module serves as a critical processing unit in ABB’s high-power rectifier and excitation systems,

ensuring stable voltage regulation and synchronization for synchronous generators and motors in utility-scale power plants and industrial facilities.

Technical Parameter Table

Related Models

The UUD148AE02 is typically used in conjunction with these UNITROL components:

UUD148AE01: Basic version of the control board.

COB-02: Communication and Extension Board.

PCD230 / PCD235: Power Control Display units.

3BHE014105R0001: Associated Gate Driver boards.

Application Cases

The 3BHE014185R0002 is widely deployed in heavy-power sectors:

Hydropower Plants: Regulating the excitation of large hydroelectric generators for grid stability.

Thermal Power Generation: Used in steam and gas turbine excitation systems to maintain precise reactive power control.

Marine Propulsion: Controlling synchronous motors in large vessels and LNG carriers.

Steel & Mining: Managing the power supply for high-capacity synchronous motors in rolling mills and crushers.

Product Advantages and Features

Precision Regulation: Delivers micro-second response times for AVR (Automatic Voltage Regulator) loops.

Fiber Optic Isolation: Uses high-speed optical links to eliminate electromagnetic interference (EMI) between control logic and power stages.

High Reliability: Built with industrial-grade components designed for continuous 24/7 operation in harsh electrical environments.

Advanced Diagnostics: Integrated self-monitoring features that report faults instantly to the higher-level DCS.

Other Models in the Same Series

UUD151AE01 (3BHE014185R0001): Input/Output variant.

UUD147AE01: Legacy UNITROL processing module.

UUD148AE11: Specialized variant with enhanced communication protocols.

Installation and Maintenance

Installation: The module should be inserted into a standard UNITROL subrack.

Ensure that the ESD (Electrostatic Discharge) wrist strap is worn during installation to prevent damage to sensitive CMOS components.

 Tighten the front panel screws to ensure proper grounding.

Maintenance: Regularly inspect the fiber optic connectors for dust or damage. Clean with specialized lint-free swabs if necessary.

 Firmware updates should only be performed using ABB-authorized software tools during scheduled outages.

Unique Product Description

The ABB UUD148AE02 (3BHE014185R0002) is more than just a circuit board; it is the "brain" behind the modern UNITROL® 6000 excitation architecture.

By integrating complex mathematical models for voltage regulation into a compact, high-speed hardware platform,

it allows power plant operators to achieve unparalleled grid compliance and generator protection.

Its robust design ensures that even in the event of grid transients, the excitation system remains stable, protecting multi-million dollar assets from electrical stress.
