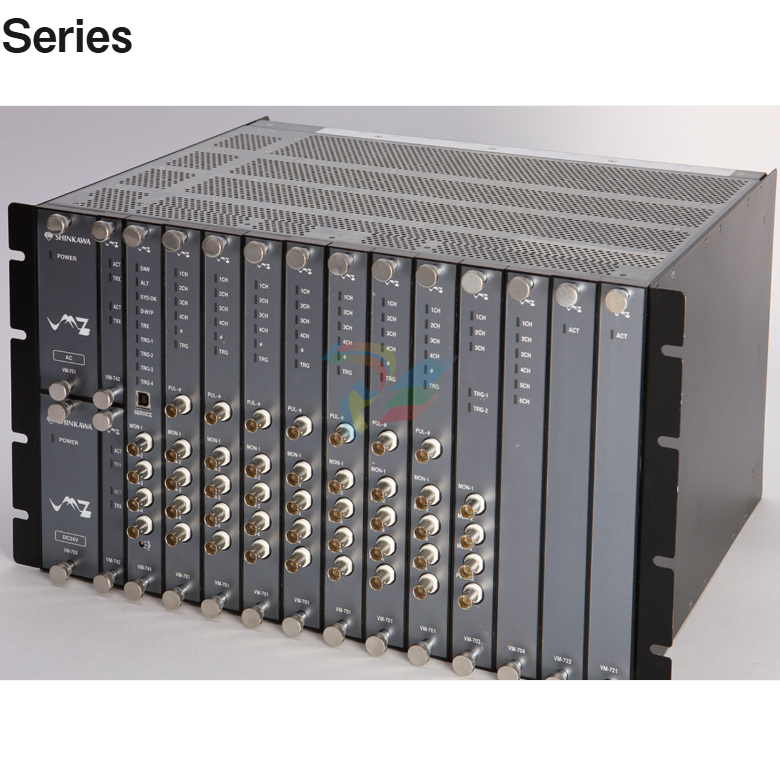

SHINKAWA VM-702B ABSOLUTE VIBRATION  MONITOR MODULE

VM-702B ABSOLUTE VIBRATION  MONITOR MODULE

INPUT

Input system : 2systems

Input system Channel combination : A: Ch1. Ch2 B: Ch3. Ch4

Input impedance : Approx. 50kΩ

INPUT TRANSDUCER

Ch1 : VK-202A or FK-202F

Ch2 : CV-86 or CV-88

Ch3 : VK-202A or FK-202F

Ch4 : CV-86 or CV-88

SYNCHRONIZED SIGNAL SOURCE

VM-741B : Input via internal mother board.

OUTPUT

Indicators : OK LED (Green)

When channel is normal : ON, When alarming : Flashing

Monitor output : Location : BNC (Front) and connector (Back)

Ch1 or Ch3 : BUFF*1

Ch2 or Ch4 : BUFF, SEIS, ABS can be selected.*1

Output impedance : 100Ω

Output current :  Max 5mA

Measurement value  :

Combination Measurement value

Ch1. Ch3 Ch2. Ch4

1 REL *1 ABS *1

2 REL *1 SEIS *1

3 SEIS *1 ABS *1

*1 BUFF : Buffer signal

Input signal from a transducer is output via buffer amplifier.

REL : Relative vibration

SEIS : Seismic vibration

The signal is converted from velocity signal to displacement signal.

(787mV/100µm)

ABS : Absolute vibration

The signal is subtracted SEIS (Seismic vibration) on Ch2 or Ch4

from the input signal on Ch1 or Ch3 (Relative vibration).

(787mV/100µm)

Recorder output : Voltage or current output proportional to measurement

value.

Measurement value of each channel can be assigned to

any output channel of its own module.

Number of output points : 4 points

Output range  :  1 to 5V, 4 to 20mA,

0 to 5V, 0 to 10V

I/O conversion accuracy : ±3% of F.S. at 25°C *2

±5% of F.S. at 0°C to 65°C *2

Max. load resistance : 600Ω (current mode)

Output impedance  : Approx. 500Ω (voltage mode)

Insulation resistance  : 10MΩ at 100VDC

Burnout function  : Downscale 0%

Downscale 0mA / 0mV

Transducer power supply

Proximity transducer : -24VDC/25mA Max.

Piezoelectric transducer : +24VDC/4mA

(constant current)

Contact output : Number of relay : 6points (logic changeable)

Contact type : Dry contact (SPDT)

Enagization method : Normally de-energized or

Normally energized field changeable

Contact capacity : 250VAC/5A, 30VDC/5A

OUTPUT

Output to analysis software (When “/ALY” is requested)

Dynamic data : Synchronous waveform, Asynchronous

waveform

Static data : Amplitude (0.5X, 1X, 2X, nX(n=0.01 to

8.00), Not-1X, S(p-p) max)

Phase (0.5X, 1X, 2X, nX(n=0.01 to

8.00))

Rotation speed

Refer to the specification sheet of

VM-773B infiSYS ANALYSIS VIEW.

*2 At calibrate frequency.

ALARM

Alarm set point : Vibration monitoring

2 points (DANGER, ALERT), from 0 to 100% of

monitor range, field changeable

Alarm set accuracy  : Vibration

±(0.2% of F.S.+1digit) or less at 25°C

Alarm set repeatability   : ±1digit or less at 25°C

Alarm delay time   : 0 to 99sec (0.1 sec step, field changeable)

Alarm reset   : AUTO-RESET or SELF-HOLD field changeable.

Alarm bypass function   : Block off alarm output (DANGER)

VIBRATION (OVER ALL) MONITORING

Recommend monitoring range

: 100 to 1000µm

Accuracy : ±2% of F.S. at 25°C *3

±3% of F.S. at 0°C to 65°C *3

HPF : 10Hz to 100Hz (-3dB), field changeable. *4(4 pole)

9.5Hz to 100Hz (-3dB), field changeable. *4(10 pole)

LPF : 200Hz to 1kHz (-3dB), field changeable. *4(4 pole)

Note) *3 At calibrate frequency.

*4 There is un-match combination.

(See “Vibration (Over All) Monitoring (Selection Table for Filter Set

Value P.5”.)

Sequence function : Used to prevent alarm output that is caused by

excessive vibration during machine startup. Block off the

DANGER/ALERT alarm, or switch the alarm setup value

to another number magnified by setup number.

Sequence Setup : Block off

1 to 10 (0.1 step, field changeable)

Suppression function : If the vibration value is less than the setup value,

this function is forced to suppress the measured

vibration value and recorder output.

*5 Suppression Setup Value: 0 to 5%

( 0.1% step, field changeable)

ANALYSIS FUNCTION (When “/ALY” is requested)

Amplitude accuracy : Overall 0.5X, 1X, 2X, nX(n=0.01 to 10.00), Not-1X

: ±3% of F.S. at 25°C

±5% of F.S. at 0°C to 65°C

(for machine speed less than 30000r/min)

S(p-p) max : ±5% of F.S. at 25°C

±7% of F.S. at 0°C to 65°C

Phase accuracy : 0.5X, 1X, 2X : ±3 deg. of of F.S. at 25°C

±6 deg. of F.S. at 0°C to 65°C

ENVIRONMENTAL CONDITION

Operating temperature : 0 to +65°C

Operating temperature at explosion proof construction

: 0 to +60°C

Storage temperature : -30 to +85°C

Relative humidity : 20 to 95%RH (non-condensing)

Power Consumption

Module  : Less than 15W

MATERIAL AND FINISH

Face plate : ABS (Black)

Sheet : Polyester tough top (Gray)

Base plate : Alminium alloy (Silver)

MASS

Body : Max. 1.0kg (2.2lb)

ACCESSORY SPECIFICATION CODE / IDENTIFIED BY TB□

Code Accessory Quantity

(Part Code)

/TB1 Transducer input terminal block plug(15pin)

FRONT-MC-1.5/15-STF-3.81 (PHOENIX CONTACT)

2pieces *7

(7072NAB)

Recorder output terminal block plug(6pin)

FRONT-MC-1.5/6-STF-3.81 (PHOENIX CONTACT)

2pieces *7

(7072NAC)

Contact output terminal block plug(18pin)

FRONT-MC-1.5/18-STF-3.81 (PHOENIX CONTACT)

1piece

(7072NAA)

/TB2 Contact output terminal block plug(18pin)

FRONT-MC-1.5/18-STF-3.81 (PHOENIX CONTACT)

1piece

(7072NAA)

Note)  *6  D-sub plugs and hoods are not included in this code. Please make

necessary arrangement separately, if required.

*7   When individually ordering specify the parts code, it is require to arrange

for a necessary amount.

INPUT

Monitor range : Ch1  0 to 200µm pk-pk (REL)

Ch2  0 to 200µm pk-pk (ABS)

Ch3  0 to 200µm pk-pk (REL)

Ch4  0 to 200µm pk-pk (ABS)

Input transducer : VK-202A (non-intrinsic safety)

CV-86 (non-intrinsic safety)

Input system : 2systems

Input impedance : 50kΩ

FILTERING

Low cut-off frequency : 10Hz (4 pole)

High cut-off frequency : 1kHz

OUTPUT

Recorder output : 4 to 20mA (4mA at the burnout)

Monitor output : Ch1  BUFF

Ch2  BUFF

Ch3  BUFF

Ch4  BUFF

ALARM

DANGER set point : 160µm

ALERT set point : 120µm

OK set point : Ch1 and Ch3  -1.4V (Low),  -18.8V (High)

Ch2 and Ch4   2.1V (Low),  22.0V (High)

Alarm delay time : 3sec (DANGER, ALERT)

Alarm reset : AUTO-RESET

CONTACT OUTPUT

Contact (RELAY1) : DANGER-1

Contact (RELAY2) : ALERT-1

Contact (RELAY3) : OR logic (NOT-OK-1 / NOT-OK-2)

Contact (RELAY4) : DANGER-3

Contact (RELAY5) : ALERT-3

Contact (RELAY6) : OR logic (NOT-OK-3 / NOT-OK-4) :

Enagization method : Nomally de-energized

OTHERS

Sequnce set value   : 1

Suppression set value   : 0%

First out   : OFF

Timed OK channel defeat  : ON

Burnout   : Downscale 0%

Alarm Contact Operation

Default Value

Specification

Contact type Enagization method Power OFF

Power ON

Normal state Alarm state

N.O. contact

NORMALLY DE-ENERGIZED OPEN OPEN CLOSE

NORMALLY ENERGIZED OPEN CLOSE OPEN

N.C. contact

NORMALLY DE-ENERGIZED CLOSE CLOSE OPEN

NORMALLY ENERGIZED CLOSE OPEN CLOSE

! WARNING

Some functions may not be available with old version.

For details, please refer to "infiSYS Family Improvement

Information" (6H16-011).
