SHINKAWA VM-706B ROD DROP MONITOR MODULE

VM-706B ROD DROP MONITOR MODULE
INPUT (Rod drop)
Input points : 4 points
Input impedance : Approx. 50kΩ
INPUT TRANSDUCER (Rod drop)
FK series : FK-202F, FK-452F, FK-302F, FK-602F
VK series : VK-202A, VK-452A, VK-302P, VK-602P
INPUT (Phase marker)
Input point : 1 point
Input impedance : Approx. 50kΩ
Hysterics set value : 1V, 2V, 5V
Min. Pulse Width : 50µsec
INPUT TRANSDUCER (Phase marker)
FK series : FK-202F
RD series : RD-05A
SYNCHRONIZED SIGNAL SOURCE
Another VM-706B or VM-701B
 : Input via transducer input terminal.
VM-741B  : Input via internal mother board. (2ch)
OUTPUT
Indicators : OK LED (Green)
When channel is normal : ON, When alarming : Flashing
  TRG LED (Yellow)
When rotational pulse is not detected : ON
When rotational pulse is detected  :
Flashing
Monitor output : Input signal is output via buffer amplifier.
Location    :  BNC (Front) and connector (Back)
Output impedance :  Approx. 100Ω (Max. 5mA)
Pulse output : Shaped pulse signal is output via a buffer amplifier.
Location :  BNC (Front)
Output impedance :  Approx. 1kΩ (Max. 5mA)
Signal level :  0V (VOL), 5V (VOH)
Synchronize signal output
 : Shaped pulse signal is output via a buffer amplifier.
Location :  Terminal (Back)
    VM-761B : D5 / D6
    VM-762B : 15pin D-SUB 13, 14
Output impedance :  Approx. 1kΩ (Max. 5mA)
Signal level :  0V (VOL), 5V (VOH)
Recorder output : Voltage or current output proportional to measurement
value
Measurement value of each channel can be assigned to
any output channel of its own module.
Number of output points
  : 4 points
Output range : 1 to 5V, 4 to 20mA,
   0 to 5V, 0 to10V
I/O conversion accuracy : ±1% of F.S. at 25°C *1
     ±2% of F.S. at 0°C to 65°C *1
Max. load resistance: 600Ω (current mode)
Output impedance : Approx. 500Ω (voltage mode)
Insulation resistance : 10MΩ at 100VDC
OUTPUT
Transducer power supply:
Proximity transducer : -24VDC / 25mA Max.
Contact output : Number of relay : 6 points (logic changeable)
Contact type : Dry contact (SPDT)
Enagization method: Normally de-energized or Normally
 energized field changeable
Contact capacity : 250VAC/5A、30VDC/5A
Note) *1 At calibrate frequency.
ALARM
Alarm set point : 4 points (H-DANGER, H-ALERT, L-DANGER,
L-ALERT), from -50 to +50% of monitor range,
field changeable
Alarm set accuracy : ±(0.2% of F.S.+1digit) or less at 25°C
Alarm set repeatability : ±1digit or less at 25°C
Alarm delay time : 0 to 99sec (0.1 sec step, field changeable)
Alarm reset : AUTO-RESET or SELF-HOLD field changeable.
Alarm bypass function : Block off alarm output (DANGER)
ROD DROP MONITORING
Measure mode : Trigger mode (Should be input phase marker
signal)
Average mode
Real mode (for run-out measuring)
Accuracy : ±1% of F.S. at 25°C
±2% of F.S. at 0°C to 65°C
Measurement range : 60 to 1200rpm (Trigger mode)
0 to 1200rpm (Average mode)
0 to 60rpm (Real mode)
Zero shift function : -50 to +50% of monitor range
CALCULATION (TRIGGER MODE)
Sampling angle range  : 0 to 359.9deg.
Input resolution : 0.1deg.
ENVIRONMENTAL CONDITION
Operating temperature  :  0 to +65°C
Operating temperature at explosion proof construction
  :  0 to +60°C
Storage temperature  :  -30 to +85°C
Relative humidity  :  20 to 95%RH (non-condensing)
POWER CONSUMPTION
Module  : Less than 15W
MATERIAL AND FINISH
Face plate : ABS (Black)
Sheet : Polyester tough top (Gray)
Base plate : Alminium allo (Silver)
MASS
Body : Max. 1.0kg (2.2lb)

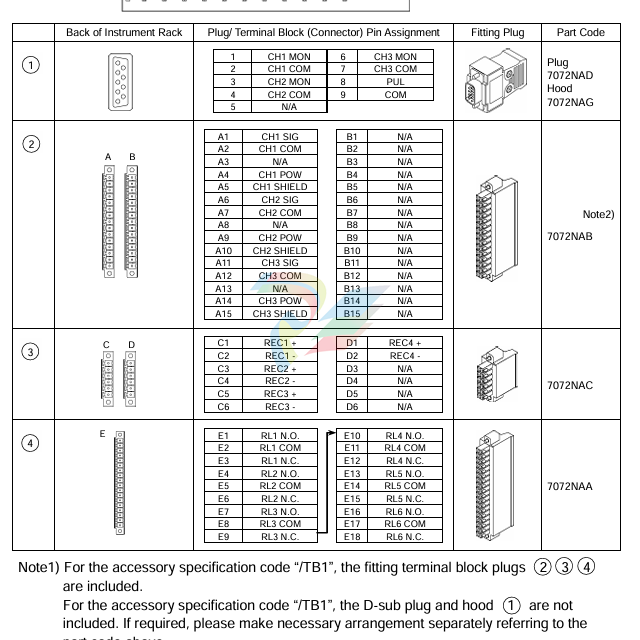

ACCESSORY SPECIFICATION CODE / IDENTIFIED BY TB□

Code Accessory Quantity
(Part Code)
/TB1 Transducer input terminal block plug (15pin)
FRONT-MC-1.5/15-STF-3.81 (PHOENIX CONTACT)
2pieces *3
(7072NAB)
 Recorder output terminal block plug (6pin)
FRONT-MC-1.5/6-STF-3.81 (PHOENIX CONTACT)
2pieces *3
(7072NAC)
 Contact output terminal block plug (18pin)
FRONT-MC-1.5/18-STF-3.81 (PHOENIX CONTACT)
1piece
(7072NAA)
/TB2 Contact output terminal block plug (18pin)
FRONT-MC-1.5/18-STF-3.81 (PHOENIX CONTACT)
1piece
(7072NAA)
Note) *2  D-sub plugs and hoods are not included in this code. Please make necessary
arrangement separately, if required.
*3  When individually ordering specify the parts code,it is require to arrange for a
necessary amount.
OTHERS

INPUT (ROD DROP)
Monitor range : 0 to 2mm
Input transducer : FK-202F (non-intrinsic safety)
Input points : 4 points
Input impedance : 50kΩ
INPUT (PHASE MARKER)
Input port : Direct (input to transducer input terminal)
Input transducer : RD-05A
Hysterics set value : 1.0V
Trigger level : -18.0V
OK bypass function : OFF
CALCULATION
Measure mode : Trigger mode
Sampling angle : 180 deg.
RECORDER OUTPUT
Output range : 4 to 20mA
 (4mA at the burnout)
ALARM
H-DANGER set point : 1.6mm
H-ALERT set point : 1.2mm
L-ALERT set point : None
L-DANGER set point : None
Alarm delay tim : 3sec (DANGER, ALERT)
Alarm Reset : AUTO-RESET
OK ALARM
Rod drop : -1.4V (Low), -18.8V (High)
Phase marker : -1.4V (Low)
Alarm reset : AUTO-RESET
CONTACT
Contact (RELAY1) : ALERT-1
Contact (RELAY2) : ALERT-2
Contact (RELAY3) : ALERT-3
Contact (RELAY4) : ALERT-4
Contact (RELAY5) : OR logic (DANGER-1, 2, 3 and 4)
Contact (RELAY6) :  OR logic (NOT-OK-1, 2, 3, 4 and NOT-OK-Φ*5)
Enagization method : Nomally de-energized
Note) *5  NOT-OK-Φ : Phase marker OK alarm
OTHERS
First out : OFF
Timed OK channel defeat : ON
Burnout : Downscale 0%
