Product Introduction / Overview

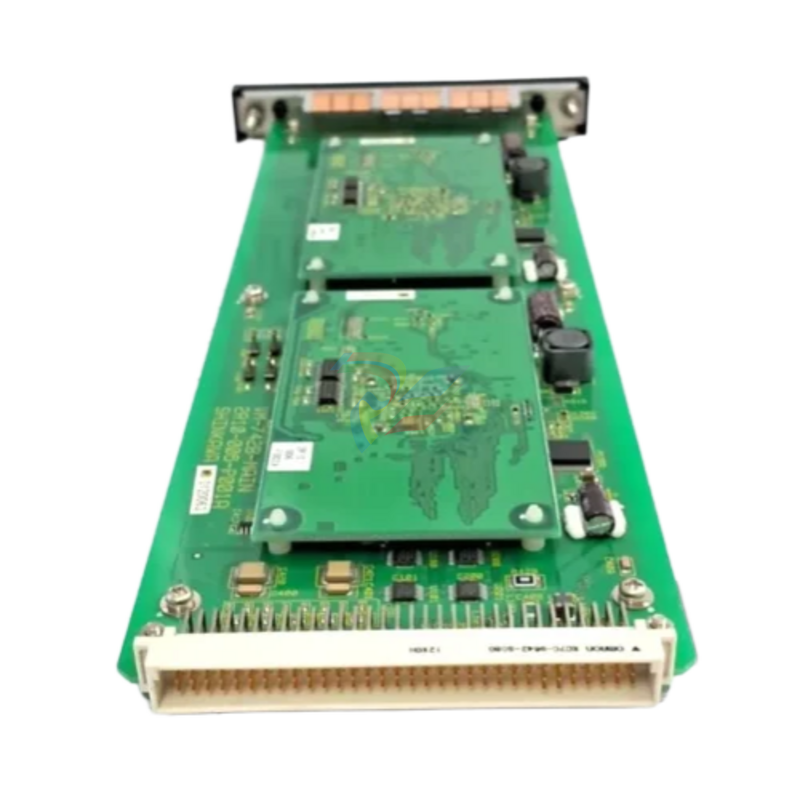

The SHINKAWA VM-742B1-5 Vibration Monitoring System Card is an advanced dual-channel vibration monitoring module manufactured by Shinkawa Electric Co., Ltd. Engineered as part of the widely deployed VM-7 series Condition Monitoring System (CMS) and turbomachinery protection architecture, this module processes dynamic signal inputs from eddy-current proximity probes, velocity transducers, and accelerometers.

The VM-742B1-5 continuously measures shaft vibration, overall casing vibration, and bearing house dynamics across critical high-speed rotating assets—including steam turbines, gas turbines, heavy compressors, large centrifugal pumps, and electric motors. By converting real-time dynamic analog sensor signals into precise operational metrics, the VM-742B1-5 delivers early detection of mechanical unbalance, misalignment, bearing wear, and mechanical looseness to prevent catastrophic equipment failure.

Technical Parameter List

Product Features / Core Advantages

Dual-Channel Independent Processing: Operates two discrete monitoring channels simultaneously, allowing redundant or two-plane vibration tracking within a single slot.

Buffered Raw Signal Outputs: Features front panel / backplane raw signal taps, enabling easy connection to external FFT analyzers and diagnostic software without interrupting live monitoring.

Fail-Safe Relay Logic: Integrates programmable Alert and Danger relay outputs with customizable voting logic (e.g., 1-out-of-2. 2-out-of-2) to prevent false trips while ensuring machinery safety.

High Noise Immunity & Isolation: Built-in optical and transformer galvanic isolation shields input signal paths from plant ground loops, severe EMI, and high-voltage electrical noise.

Real-Time Diagnostics & Self-Checking: Continually checks sensor circuit continuity (OK Monitor line) to detect open field cables, probe failures, or power drops instantly.

Model Classification

The Shinkawa VM-7 series monitoring cards are categorized by specific monitoring function, channel density, and configuration options:

VM-742B1-5: Dual-Channel Vibration Monitor Card (Standard configuration option -5).

VM-742B1 / VM-742B2: Dual-channel vibration monitoring card variants with distinct relay/output configurations.

VM-752B: Dual-Channel Thrust / Axial Displacement Monitor Card.

VM-712B: Dual-Channel Eccentricity / Phase Monitor Card.

VM-722B: Speed / Keyphaser Module.

VM-762B: Temperature & Aux Monitor Card.

Environmental Tolerance Conditions

Operating Temperature: 0°C to +60°C (32°F to 140°F)

Storage Temperature: -20°C to +70°C (-4°F to 158°F)

Relative Humidity: 5% to 95% RH (Non-condensing)

Vibration Resistance: 10 to 55 Hz, 0.15 mm peak-to-peak displacement

Shock Tolerance: 15 g peak (11 ms pulse duration)

Electromagnetic Compatibility (EMC): Compliant with EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Emissions).

Installation Method

Power Isolation: Ensure the main VM-7 chassis backplane power is turned off prior to insertion or removal.

ESD Safety Precautions: Put on a grounded anti-static wrist strap before handling the VM-742B1-5 card.

Card Rail Insertion: Align the board edges with the top and bottom card guide rails in the target chassis slot. Push the card in firmly until the edge connectors seat fully into the backplane.

Front Panel Securing: Tighten top and bottom captive screws on the front faceplate to hold the card tightly against ambient machine vibration.

Field Cable Connection: Connect probe sensor leads (Shielded Twisted Pair / Coaxial) to the matching rear terminal block on the backplane assembly. Ground cable shields at the single designated earth point.

Operating Instructions

Power-Up Check: Apply rack power and observe the front panel LEDs. The OK LED should light solid green.

Zero Point Calibration: Verify the zero baseline voltage and full-scale range setting using calibration software or front panel trim points per system specification.

Threshold Setup: Set Alert and Danger vibration trip levels matching machine OEM limits (e.g., ISO 10816 standards).

Buffered Signal Testing: Plug dynamic signal analyzers into the raw signal test points to record baseline vibration spectra during turbine startup or speed ramp-up.

Routine Inspection: Periodically check front panel bar graph / LED displays to verify ongoing operational stability and alarm channel integrity.
