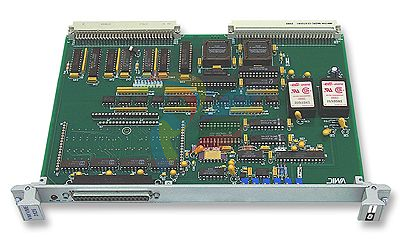

Abaco VME-3125 VME Analog I/O Input Boards

Abaco VME-3125  VME Analog I/O Input Boards

Abaco VME-3125  VME Analog I/O Input Boards

Overview

Isolated Scanning 12-bit 32-Channel Analog-to-Digital Converter Board (6U) with Built-in-Test,

• Applications: Instrumentation in 3U Form Factor, Isolated Analog Inputs, Isolated Transducer Inputs, Ground Loop Elimination, Data Acquisition Systems, Medium-Rate Voltage Monitoring, Process Monitoring, Temperature Monitoring

• 1,000 V analog GND/digital GND isolator

• Low pass input filters: 50 kHz, optional 40 Hz

• Pull-down resistors prevent floating inputs

• offset binary or two's complement

• Overvoltage protected inputs

• Selectable data coding

• Input connector compatible with both discrete wire and ribbon cables

• Jumper-programmable gains of x1, x10, x100

• Selectable A/D ranges of +/-5 V, +/-10 V, 0 to +10 V

• Supports real-time Built-in-Test

• 40 kHz aggregate conversion rate

• Input ranges from +/-50 mV to +/-10 V

• Isolated channel-to-bus

• common channel-to-channel

• Autoscanning

• continuously digitizes inputs and stores results in dual-ported data registers

• 32 single-ended or 16 differential inputs

• Operating Systems: Windows NT, Linux, VxWorks, QNX
