ADLINK Peripherals & Accessories cPCI-3W10

Peripherals & Accessories

cPCI-3W10

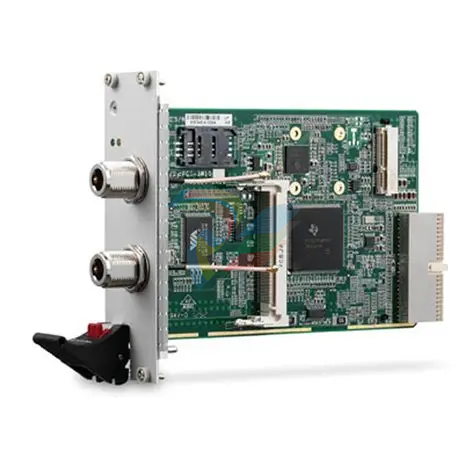

3U CompactPCI Mini PCI, Mini PCIe Carrier Board

Key Features

Supports 32bit, 33/66MHz CompactPCI® bus

One SIM card socket

One Mini PCI and one Mini PCIe socket

PICMG® 2.0 R3.0 compliant

cPCI-3E10/3E12 cPCI-3544

cPCI-8301

cPCI-3W10

Dual-Gigabit Ethernet ports

Supports PCI-X bus up to 133 MHz

Failover capability during system power off or software halt

Software programmable failover control

DIP Switch selectable failover control

Programmable watchdog timer,

WDT status read-back

Intel® - PMC Module Boot Agent BIOS

PICMG® 2.0 R3.0 compliant

Supports 32bit/33MHz, 64bit/66MHz CompactPCI® bus

3U 4HP form factor, 100mmx160mm (LxW)

Two or four RJ-45 10/100/1000BASE-T ports on front panel

Intel® 82574L Gigabit Ethernet controllers

Two LAN ports switchable to rear (cPCI-3E10 only)

OS support: Windows® XP/Vista/7/

Server 2003/Server 2008. RHEL 5.1

PICMG® 2.0 32.64-bit/33.66 MHz cPCI bus

Supports one single-size 32.64-bit/33.66 MHz PMC site in

4HP width

Universal V(I/O) decided by backplane

Comprehensive EMC shielding

PICMG® 2.0 R3.0 compliant

Supports 32bit, 33/66MHz CompactPCI® bus

One Mini PCI and one Mini PCIe socket

One SIM card socket

PICMG® 2.0 32.64-bit/33.66 MHz cPCI bus

PICMG® 2.1 Hot Swap Specification Compliant

Supports two single-size 32.64-bit/33.66 MHz

PMC sites in 4HP width

3.3V or 5V V(I/O) for cPCI bus and PMC sites

PLX® PCI-to-PCI bridge PCI6154 for PCI bus

Power and HotSwap LED incidators on front

panel

● cPCI-3E10: 3U cPCI four port RJ-45 LAN card,

two ports switchable to rear

● cPCI-3E12: 3U cPCI two port RJ-45 LAN card

● cPCI-R3E10: RTM for cPCI-3E10 with two RJ-45 LAN

ports in 50mm depth

● cPCI-R3E10T: RTM for cPCI-3E10 with two RJ-45 LAN

ports in 80mm depth
