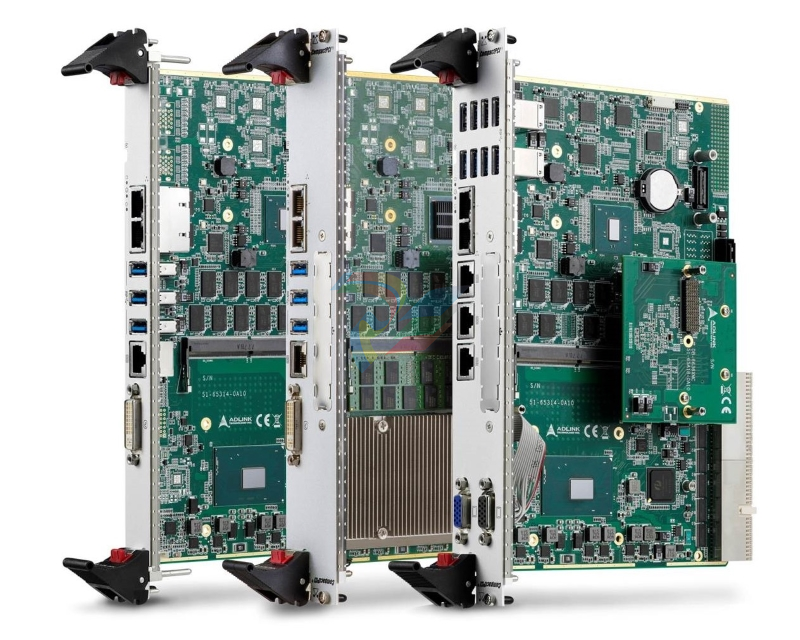

ADLINK 6U CompactPCI 2.0 Blades cPCI-6636(KL) Series

6U CompactPCI 2.0 Blades

cPCI-6636(KL) Series

6U CompactPCI 6th/7th Gen Intel® Xeon® E3 and Core™ i3/i7 Processor Blade

Key Features

Supports 6th/7th Gen Intel® Xeon® E3 and Intel® Core™ i3/i7 processor

Up to 32GB DDR4-2133 memory, soldered and SO-DIMM, optional ECC

XMC support

Up to 8x USB 3.0. 6x RS-232(TX/RX)

Up to 4x GbE to rear I/O

TPM2.0 and BIOS protection

Smart Embedded Management Agent (SEMA) function support

The ADLINK cPCI-6636 Series is a 6U CompactPCI® processor blade based on the 6th/7th Generation Intel® Xeon® E3 and Intel® Core™ i3/i7 Processors with Intel® HM170 or CM236 Chipsets.

The cPCI-6636 supports up to 16GB onboard DDR4-2133 memory and 16GB DDR4-2133 via SODIMM. Total memory capacity is up to 32GB of DDR4-2133.

The cPCI-6636 is a highly integrated processor blade fit for mission critical applications in industries ranging from automation to defence.

The cPCI-6636 is positioned as the successor to ADLINK’s cPCI-6626 and cPCI-6525 in terms of I/O and feature set. The cPCI-6636 provides a 2.8x performance boost over the 2nd gen Core™ i7 (cPCI-6626) and 30% performance boost over 3rd gen Core™ i7 (cPCI-6525).

Graphics features include 3 symmetric independent displays, 3D HW acceleration, DirectX 12. OpenGL 4.4. and H.265 HW decode/encode. The cPCI-6636 achieves 2.7x graphics score improvement over the 3rd gen Core™ i7 (cPCI-6525).

The cPCI-6636 Series supports flexible I/O interfaces. Faceplate I/O for the cPCI-6636 (4HP) includes 2x GbE supported by an Intel® i219LM PHY controller and Intel® i210IT Ethernet controller, 3x USB 3.0. 1x RJ-45 serial port, and 1x DVI-I.

Onboard I/O includes one 2.5" SATA drive space, one 7-pin SATA connector, and one CFast slot by adapter board. The cPCI-6636D (8HP) has identical I/O to the single-slot version, except that an XMC connector via PCIe x8 adapter board is supported in place of the CFast slot.

A third configuration, the cPCI-6636DZ (8HP), supports 8x USB 3.0. 2x GbE, 6x serial TX/RX and 2x VGA on the faceplate, and the same onboard I/O as the cPCI-6636D.

Rear I/O signals are available on cPCI-6636 and cPCI-6636D which are equipped with CompactPCI J3 and J5 connectors.

Available to the RTM are up to 2x GbE to J3 by Intel® I210IT Ethernet controllers for PICMG 2.16. and an additional 2x GbE switchable to rear from the front panel for a total of up to 4x Ethernet to rear J3 and J5. Also available are 1x VGA to J3. 1x TMDS to J5. 2x SATA 1.5 Gb/s to J3. 1x SATA 1.5 Gb/s to J5. 6x USB 2.0 to J3.

10x GPIO to J3 and J5. HDA and KB/MS to J3. and serial ports to J5. For PCIe expansion, the cPCI-6636 offers one PCIe x4 or 4x PCIe x1 to J5.

The ADLINK 8HP cPCI-6636DZ only supports operation in host slots, whereas the cPCI-6636(D) operate independently in both host and peripheral slots without CompactPCI bus communication (satellite mode), making it ideal for high density computing platforms. Moreover, the cPCI-6636 supports remote manageability by SEMA for system health monitoring over the Internet.

The cPCI-6636 Series offers outstanding computing power from the latest Intel® processors and is an ideal solution for military, automation and other robust computing applications that require the highest computing power in a rugged, reliable CompactPCI system.
