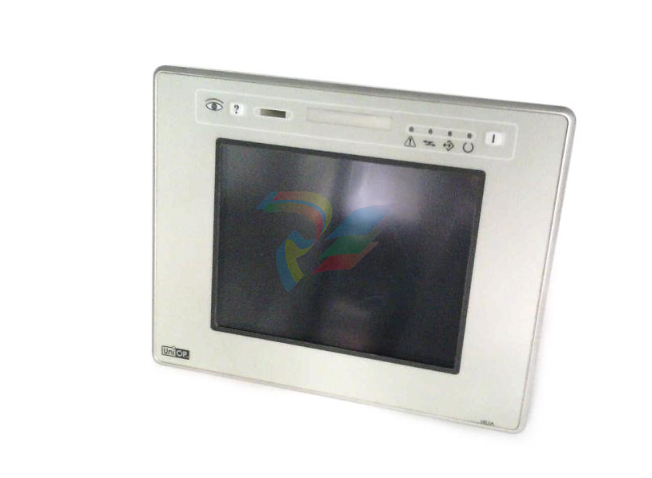

UniOp eTOP05-0045 eTOP05. eTOP05P Operator Interface Touch Panel

UniOP eTOP05. eTOP05P

The eTOP05 is a low-cost HMI device with touchscreen interface and 5.6” monochrome graphic

display. The compact size and the 1/4 VGA resolution make it the optimal solution for a tight budget

compromising quality and performance.

The eTOP05P has coated electronics for improved resistance to harsh environmental conditions.

5.7” monochrome display with white LED

backlight. eTOP05 has display with TFT

technology

1/4 VGA (320x240 pixel) resolution

Resistive touchscreen

Connection to industrial bus systems and

Ethernet (requires optional plug-in modules)

32 MB user memory

The eTOP HMI panels are part of the UniOP family of touchscreen products. All of the eTOP products

support the rich common functionalities of the UniOP operator panels:

Powerful and intuitive programming with

the UniOP Designer 6 software

Support of more than 130 communication

drivers for industrial devices

Optional modules for fieldbus systems

(Profibus DP, CANopen, DeviceNet,

Interbus) and Ethernet. Ethernet modules

allow connection to field devices as well

as programming the HMI from Designer.

Dual-driver communication capability

Display dynamic data in numerical, text,

bargraph and graphic image formats

Data acquisition and trend presentation.

Trend data can be transferred to an host

computer using the Ethernet connection.

Analog gauge objects

Recipe data storage. Recipe data can be

transferred to an host computer using the

Ethernet connection.

Multilanguage applications. The number of

runtime languages is limited only by the

available memory. All text information in

the application can be exported in Unicode

format for easier translation.

Powerful macro editor to configure

touchscreen operation

Alarms and historical alarm list. Alarm and

event information can be printed or

transferred to an host computer using the

Ethernet connection.

Eight level password protection.

Report printing to serial printer. Reports

are freely configurable using Designer.

Ethernet-based UniNet network to share

data between UniOP HMIs and to serve

data using UniNet OPC Server.

Technical Data

Display

Type eTOP05 TFT

eTOP05P STN Monochrome

Resolution 320x240 pixel

Active display area 115x86 mm (5.7” diagonal)

Colors -

Backlight LED

Brightness eTOP05 130 cd/m2 typ.

eTOP05P 60 cd/ m2 typ.

Dimming No

Memory

User memory 32 MB Flash Card

User memory

expansion -

Front panel

Touch screen Analog resistive

Function keys 1

System keys -

User LED’s 1

System LED’s 4

Interfaces

PC/Printer port Yes

PLC port RS-232. RS-485. RS-422. 20

mA Current Loop

Aux port (fieldbus and

Ethernet)

Yes, with optional modules

DX port (video input) No

Serial programming

speed

9600 – 38400 bps

Functionality

Vector graphics No

Dual driver capability Yes

Video input No

Data acquisition and

trends

Yes

Recipe memory 32 KB

UniNet network Client/Server

Alarms 1024

Event list 1024

Password Yes

Hardware RTC Yes, battery backed

Screen saver Yes

Buzzer Yes, audible feedback for

touch screen

Battery 3 V 270 mA Lithium, non

rechargeable, user

replaceable, model CR2430.

Replace with same component

or equivalent compatible with

the operating temperature of

the product.

Ratings

Power supply voltage 24 V DC (18 to 30 V DC)

Current consumption Max 0.6 A at 24 VDC

Fuse Automatic

Weight Approx 1.4 Kg

Environmental

Conditions

Operating temperature 0 to 50 C

Storage temperature -20 to +70 C

Operating and storage

humidity

5 – 85 % RH non-condensing

Protection class IP65 (front panel)

Dimensions

Faceplate LxH 187x147 mm (7.36x5.79“)

Cutout AxB 176x136 mm (6.93x5.35 “)

Mounting depth D

Approvals

CE

UL

67 mm (2.63”)

Emission

EN 61000-6-4

Immunity

EN 61000-6-2

for installation in industrial

environments

UL508 Listed

Ordering Information

Model

eTOP05-0045

eTOP05P-0045

Description

5.7” ¼ VGA monochrome graphic HMI with touchscreen

5.7” ¼ VGA monochrome graphic HMI with touchscreen, coated electronics

PROT-03

Disposable protection foil for 5.7" eTOP touch panels (10 pieces)
