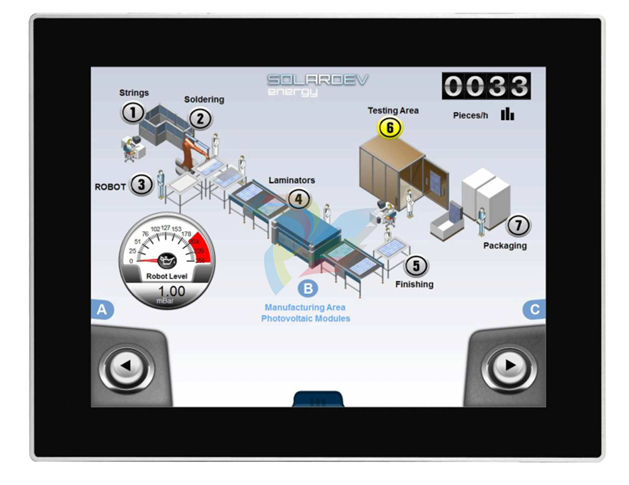

UniOP eTOP515 Series 500 HMI

UniOP eTOP515

The UniOP eTOP Series 500 HMI products combine state-of-the-art features and top performance

with an oustanding design. They are the ideal choice for all demanding HMI applications including

factory and building automation.

The eTOP515 features a bright 15”  TFT  display with a fully dimmable LED backlight.

The JMobile software offers full vector graphic capabilities and plenty of connectivity options. 15” XGA TFT color display, LED backlight

• 1024x768 pixel  resolution, 64K colors

• Resistive touchscreen

• 2 Ethernet ports with switch function

• 2 USB Host ports

• SD Card Slot

• Connection to fieldbus systems and I/O using

optional plug-in modules

• Slim design. Mounting depth less than 50mm

Highlights

The eTOP Series 500 HMI panels have been designed to run the JMobile software.

• JMobile runtime included. Full

compatibility with JMobile Studio.

• Full vector graphic support. Native support

of SVG graphic objects. Trasparency and

alpha blending.

• Full object dynamics: control visibility and

transparency, move, resize, rotate any

object on screen. Change properties of

basic and complex objects.

• TrueType fonts

• Multilanguage applications. Easily create

and manage your applications in multiple

languages to meet global requirements.

Far East languages are supported. Tools

available in JMobile Studio support easy

third-party translations and help reducing

development and maintenance costs of

the application

• Data display in numerical, text, bargraph,

analog gauges and graphic image

formats.

• Rich set of state-of-the-art HMI features:

data acquisition, alarm handling,

scheduler and timed actions (daily and

weekly schedulers, exception dates),

recipes, users and passwords, e-mail and

RSS feeds, rotating menus

• Includes support for a wide range of

communication drivers for Factory and

Building Automation systems.

• Multiple drivers communication capability.

• Remote monitoring and control. Client

Server functionality. Mobile clients

supported.

• Remote maintenance and support with

VNC-based functionality.

• Off-line simulation of the HMI application

with JMobile Studio.

• Powerful scripting language for

automating HMI applications. Script

debugging improves efficiency in

application development.

• Rich gallery of symbols and objects

• Project templates

• Optional plug-in modules for fieldbus

systems, I/O and controllers.

• Display backlight dimmable to 0%

Model

eTOP515-White

eTOP515-Silver

eTOP515-Black

Part Number

+ETOP515U1P1

+ETOP515U2P1

+ETOP515U3P1

Description

15”  TFT color touchscreen with Ethernet and USB interfaces. White

front panel. JMobile run-time.

15”   TFT color touchscreen with Ethernet and USB interfaces. Silver

front panel. JMobile run-time.

15”   TFT color touchscreen with Ethernet and USB interfaces. Black

front panel. JMobile run-time.

PROTFOIL-15-GL

PROTFOIL-15-UV

R-PROT16

R-PROT22

Disposable protection foil for 15” widescreen eTOP touch panels (10

pieces).

Disposable protection foil for 15” widescreen  eTOP touch panels (10

pieces). UV resistant.

Display

Type TFT

Resolution 1024x768. XGA

Active display area 15”

Colors 64K

Backlight LED

Brightness 300 Cd/m2 typ.

Dimming Yes

System Resources

Operating System Microsoft Windows CE 6.0

User memory 256 MB Flash

RAM 256MB DDR

Operator Interface

Touchscreen Analog resistive

LED indicators  1 (dual color)

Interface

Ethernet 2 10/100 Mbit with integrated

Switch

USB 2 Host Interface (1 version 2.0.

1 version 2.0 and 1.1)

Serial RS-232. RS-485. RS-422.

software configurable

Expansion Slot 2 Optional plug-in

Memory  Card SD Card Slot

Functionality

Vector graphics Yes, includes SVG support

Object dynamics  Yes. Visibility, opacity, position,

size, rotation for most object

types.

TrueType fonts Yes

Multiple driver

communication

Yes, max 2 drivers

Data acquisition and

trend presentation

Yes. Flash memory storage

limited only by available

memory

Multilanguage Yes, with runtime language

switching.

Recipes Yes. Flash memory storage

limited only by available

memory

Alarms Yes

Historical event list Yes

Users and passwords Yes

Hardware Real Time

Clock

Yes, with battery back-up

Screen saver Yes

Buzzer Yes, audible feedback for

touchscreen

Ratings

Power supply voltage 24 Vdc (10 to 32 Vdc)

Current consumption 1.25A at 24Vdc(max.)

Fuse Automatic

Weight Approx 3.5 Kg

Battery Rechargeable Lithium battery,

not user-replaceable

Environmental

Conditions

Operating temperature 0 to 50 °C (vertical installation)

Storage temperature -20 to +70 °C

Operating and storage

humidity

5 – 85 % relative humidity,

non-condensing

Protection class IP66 (front)

IP20 (rear)

Dimensions

Faceplate LxH 392x307 mm (15.43x12.08”)

Cutout AxB 381x296 mm (15x11.65”)

Depth D+T 60+4 mm (2.36+0.16”)

Approvals

CE Emission

EN 61000-6-4

Immunity

EN 61000-6-2

for installation in industrial

environments

DNV

DNV Type Approval Certificate

UL

C-Tick

UL508 Listed

Haz. Loc. Class I, Division 2.

Groups A,B,C and D.

C-Tick mark
