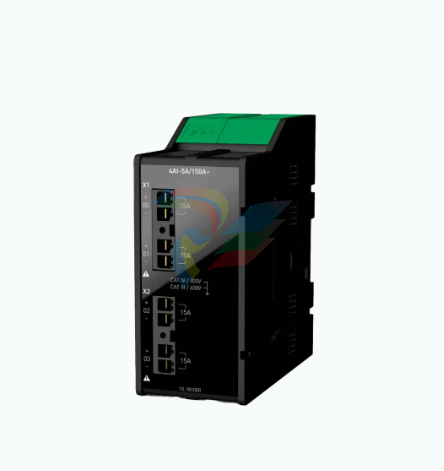

ibaM-4AI-5A-150A-AC

Input module with 4 analog current inputs

Use in power generation and distribution

General current measurement

I/O Modules

In the ibaMAQS system, up to 15 I/Oa modules can be combined as desired.

The modules are suitable for high-resolution measurement applications with very fast sampling rates, in some cases up to 500 kHz.

The signals from all I/O modules are acquired synchronously with the sampling clock.

The I/O modules do not require their own voltage supply since they are powered via the module-module interface.

The operating status of the module as well as the status of the individual channels are indicated by LEDs.

Modular concept

One processor module can be combined with up to 15 different I/O modules

Modules are available for discrete input and output signals as well as for special technological features.

At the same time, the system can be flexibly extended at any time as requirements grow.

The scalable system thus offers a high level of investment security and meets the most challenging requirements.

Universal processor module that can be used as an edge device

The ibaM-DAQ processor module is an extremely compact ibaPDA system that can function as a stand-alone device.

Thanks to its compact design, ibaM-DAQ is ideal for use close to the process or plant – and wherever only limited space is available.

In addition to the synchronous acquisition and storage of the measurement data, ibaM-DAQ is able to aggregate the data and calculate characteristic values on-board.

These characteristic values can also be stored locally or forwarded to other systems. Thanks to the numerous network interfaces, ibaM-DAQ can be integrated into any IT structures.

Technology-specific solutions can be realized in combination with other iba applications, such as ibaInSpectra or ibaInCycle, whereby ibaM-DAQ assumes an important role as an edge device.

With the ibaM-FO-2IO interface module you can couple additional iba devices via fiber optics and thus continue to integrate your existing iba systems. The 32Mbit Flex and 32Mbit ibaNet protocols are supported.

Deterministic, highly synchronous data acquisition

A significant advantage of the ibaMAQ system is the deterministic and highly synchronous measurement data acquisition of the different signal sources.

The interface module ibaM-FO-2IO acts as internal clock generator and thus ensures a highly precise acquisition of measurement data.Synchronous acquisition is not only possible via fiber optics, but also via Ethernet with the ibaNet protocol ibaNet-E.

If the ibaNet-E devices are then connected via the ibaNet interfaces, highly synchronous data acquisition is possible, which is required for example for fast TFR applications and applications in the energy sector.

Typical use cases

Decentralized measurement data acquisition for local applications, e.g., test stands, injection molding machines, small plants, etc.

Measurements on mobile equipment, e.g., cranes, special vehicles, etc.

Measurement applications in electrical power engineering: TFR, PQU

NVH measurement

Vibration analysis

Coupling of highly dynamic sensor data
