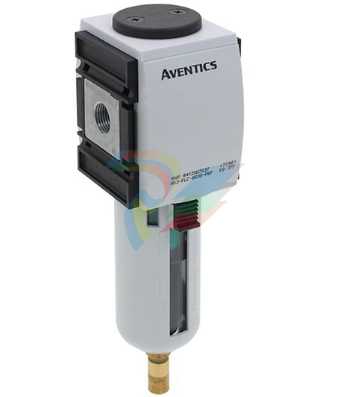

AVENTICS™ Microfilter, Series AS3-FLC R412007037

Specifications

Parts

Microfilter

Reservoir

reservoir, polycarbonate, with PA protective guard

Port

G 3/8

Nominal flow Qn

700 l/min

Condensate drain

fully automatic, open without pressure

Min. working pressure

1.5 bar

Max. working pressure

16 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Medium

Compressed air, Neutral gases

Max. achievable compressed air class acc. to ISO 8573-1:2010

1 : - : 2

Filter reservoir volume

49 cm³

Filter element

exchangeable

Recommended pre-filtering

0.3 µm

Weight

0.41 kg

Mounting orientation

vertical

Type

Can be assembled into blocks

Housing material

Polyamide

Material front plate

Acrylonitrile butadiene styrene

Seal material

Acrylonitrile butadiene rubber

Material threaded bushing

Die cast zinc

Material reservoir

Polycarbonate

Material protective guard

Polyamide

Material filter insert

Borosilicate glass fiber

AVENTICS Microfilter, Series AS3-FLCR412007037 is a precision filter of Aventics, belonging to AS3 series. According to the evidence, this type of filter has the following characteristics:

Filtering accuracy: 0.01 μm, which is suitable for application scenarios requiring high-precision filtering.

Interface type: G 3/8-G 1/2, suitable for various connection requirements.

Working pressure range: the main pressure (p1) and the secondary pressure (p2) are not clearly marked, but usually AS3 series supports higher working pressure.

Flow characteristics: The flow characteristics meet ATEX standards and are suitable for explosion-proof environment.

Structural features: modular design, easy assembly and maintenance, and pollution display function.

R412007037 is a precision filter with high performance and modular design, which is suitable for compressed air treatment and neutral gas filtration, especially for application scenarios requiring high precision and explosion-proof characteristics.
