GE IS420 series industrial Ethernet/IONet switch summary table

Mark* VIe Industrial Ethernet / IONet Switches SummarySheet

GE’s product line of industrial, unmanaged Ethernet 10/100 switches, ESWA and ESWB, are specifically designed to meet the needs of real-time industrial control solutions and are required for all IONet switches used in a Mark* VIe and Mark VIeS Safety control system. To meet the requirements for speed and functionality, the following features are provided:

• 802.3, 802.3u, and 802.3x compatibility

 • 10/100base copper with auto negotiation

 • Full/half duplex auto-negotiation

 • 100MbpsFXuplinkport

 • HP-MDIXautosensing

 • LEDstoindicate status of Link Presence, Activity and Duplex, and Speed per port (each LED has two colors)

 • LEDtoindicate power status

 • Minimum256KBbufferwith 4 K media access control (MAC) addresses

 • Redundant power supply inputs (Diode-OR'd)

The GEEthernet/IONet switches are available in two hardware forms: ESWA and ESWB. Each hardware form is available in five versions (H1A through H5A) that vary in fiber-optic port configuration options, which include no fiber ports, multi-mode fiber ports, or single-mode (longer distance) fiber ports.

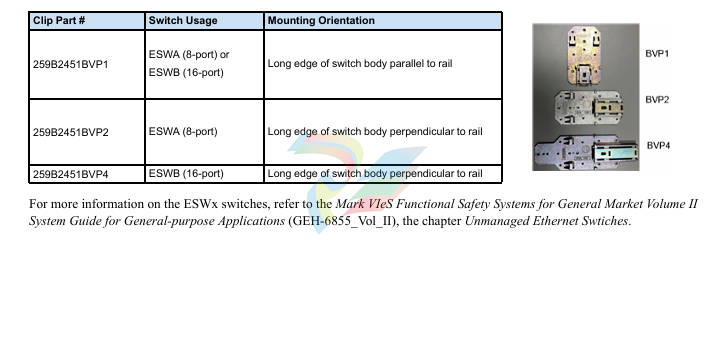

The ESWxswitches can be DIN-rail mounted using one of three GE qualified DIN-rail mounting clips, depending on the hardware form (ESWA or ESWB) and the selected DIN-rail mounting orientation. The clips are ordered separately, in accordance with the following table. Mounting screws are included with each switch.

GE Mark VI IS220PSCAH1A functions as a serial communication PSCA I/O pack and containts a BPPB processor board.

GE Mark VIe IS420ESWAH1A features 8 ports 10/100BASE-TX + 1 port 100BASE-FX LC-type connection.

GE Mark VIe IS420ESWAH2A features 8 ports 10/100BASE-TX + 2 ports 100BASE-FX LC-type connection.

GE Mark VIe IS420ESWAH3A features 8 ports 10/100BASE-TX.

GE Mark VIe IS420ESWAH4A features 8 ports 10/100BASE-TX + 1 port 100BASE-LX10 LC-type connection.

GE Mark VIe IS420ESWAH5A features 8 ports 10/100BASE-TX + 2 ports 100BASE-LX10 LC-type connection.

GE Mark VIe IS420ESWBH1A features 16 ports 10/100BASE-TX + 1 port 100BASE-FX LC-type connection.

GE Mark VIe IS420ESWBH2A features 16 ports 10/100BASE-TX + 2 ports 100BASE-FX LC-type connection.

GE Mark VI IS420ESWBH3A features 16 ports 10/100BASE-TX.

GE Mark VIe IS420ESWBH4A features 16 ports 10/100BASE-TX + 1 port 100BASE-LX10 LC-type connection.

GE Mark VIe IS420ESWBH5A features 16 ports 10/100BASE-TX + 2 ports 100BASE-LX10 LC-type connection.

GE Mark VIe IS420PFFAHIA functions as an energy foundation fieldbus gateway.

GE Mark VIe IS420PPNGH1A connects a Mark VIe controller to a high speed PROFINET LAN for communicating with PROFINET I/O devices.

Mark VIe IS420PSCAH1B functions as a serial communication I/O pack and features a compatible BPPC that has support in ControlST V4.07 and later.

GE Mark VIe IS420PUAAH1A functions as and I/O module with captive mounting screws.

GE Mark VIe IS420UCPAH1A controller run application-specific control system logic and features a Freescale 3308 processor at 332MHz.

GE Mark VIe IS420UCPAH2A functions as a high speed controller and features an additional expansion I/O board.

GE Mark VIe IS420UCSBH1A is a Mark VIe controller designed for high speed applications and features QNX Neutrino OS.

GE Mark VIe IS420UCSBH3A is a Mark VIe controller designed for high speed applications and features a 1200MHz Intel EP80579.

GE Mark VIe IS420UCSBH4A is a Mark VIe controller designed for high speed applications and features a 1066 MHz Intel

GE Mark VIe IS420UCSBS1A functions as a safety controller and are used for functional safety loops to achieve SIL 2 and 3 capabilities.

GE Mark VI IS420UCSCH1A is a quad-core controller that features 7 RJ-45 ports, embedded PPNG, as well as embedded field agent technology.

GE Mark VIe IS420UCSCH1B functions as a turbine or balance of plant controller running Mark VIe firmware and features embedded field agent technology.

GE Mark VIe IS420UCSCH1C functions as quad-core Mark VIe controller for hiigh speed applications and features embedded EtherCAT and embedded field agent technology.

GE Mark VIe IS420UCSDH1A is a quad-core controller designed for high speed applications. It features embedded PPNG and multi-core capabilities with multiple ethernet ports on the front panel.

GE IS420YAICS1B functions as an analog I/O pack that provides the interface between Ethernet networks and analog boards.

GE Mark VI IS420YDOAS1B functions as a discrete output pack that provides the electrical interface between one or two I/O Ethernet networks and a discrete output terminal board.
