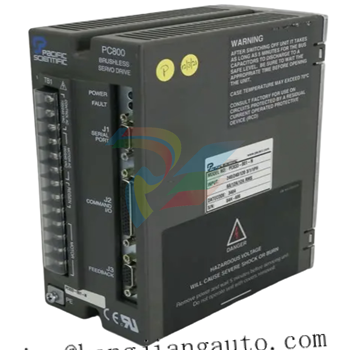

PACIFIC SCIENTIFIC PC800 PC832 PC830 Series Digital Brushless Servo Drive

From: | Author:kongjiang | Time :2025-07-30 | 1644 Browse: | 🔊 Click to read aloud ❚❚ ▶ | Share:

.Single-end analog input, +5V dc

-Two analog outputs, +5V dc

-Encoder quadrature output -- up to 16,384 PPR.Encoder quadrature input (Step/Direction)

- Enable input

-+5V dc @ 200 mA user output

-+24V de @ 100 mA power supply for optically-isolated inputs

Single resolver feedback survives hostile environments

Hall/Encoder feedback allows application flexibility - make it suitable for upopular linear motors

All connections on front-easy access to clearly marked connectors

Optional Terminal Block Adapter speeds connections even further

Separate logic supply input keeps logic power working when bus power i!

Extensive protection circuits and diagnostics to ease set-up

.400 Hz velocity loop bandwidth

.Inaudible, high firequency, Digital PWM sine wave current control

IGBT Power stage - more efficient, less audible noise

Typical Applications~

Packaging machinery

.Electronic assembly equipment

Semiconductor wafer processing equipmen

.Material handling

.Robotics

X-Y tables and slides

Specialty machinery

Agency Approval

UL recognized-508C(Type R)- file #E137798

·cUI

Meets IEC Vibration Standard,#68-2-6

Models CE Compliant: EMC standard EB61800-3 and safety standard E

PacSei Motors Complete the package

The PMA Series and S Series brushless servomotors pair with the PC832 tservo application needs. Pacific Scientific is committed to offering you the htailored to fit your unique applications and backed by unmatched customer :
