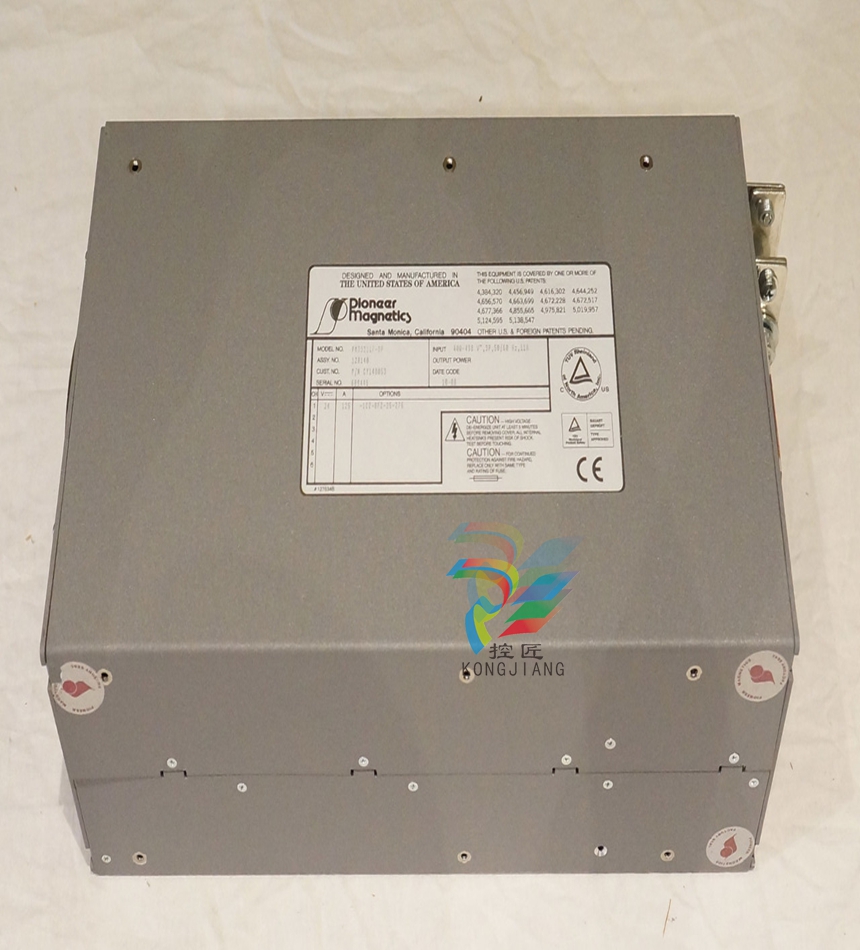

PIONEER MAGNETICS PM3326B-6-1-2-E Power Supply

Pioneer Magnetics PM 3326b-6-1-2-E is an efficient and reliable medium voltage power factor correction (PFC) power module. The following are the main features and functions of the power module:

Input and output characteristics

Input voltage: single-phase or three-phase AC input is supported, and the voltage range is 90 to 264VAC.

Output power: It has specific output power to meet the power supply requirements of different devices.

Output current: provides a wide range of low-voltage and high-current output, and a single module can be stacked to achieve a load capacity of up to 600A A.

Performance characteristics

High efficiency: it has high-efficiency power conversion ability and reduces energy waste.

High reliability: high-quality materials and manufacturing technology are adopted, which can run stably in harsh environment.

Programmability: Support programming configuration and control, and realize complex control logic.

Multi-channel output: Support multi-channel output to improve system integration and flexibility.

defencive function

Overload protection: built-in electrical overload protection to prevent damage.

Output holding time: it has an output holding time of 20ms to ensure the stability of power supply.

Physical and environmental characteristics

Size and installation: The standard 5-inch× 5-inch package is adopted, which supports hot-plug and non-hot-plug configurations.

Cooling mode: internal forced air cooling to ensure heat dissipation effect.

Working temperature: it can provide continuous full power output in the temperature range of 0 C to+50 C.

application area

Widely used in industrial automation, production line control, robot control, building automation and other fields.

To sum up, Pioneer Magnetics PM 3326b-6-1-2-E is a powerful and stable power module, which is suitable for various industrial and automation application scenarios.
