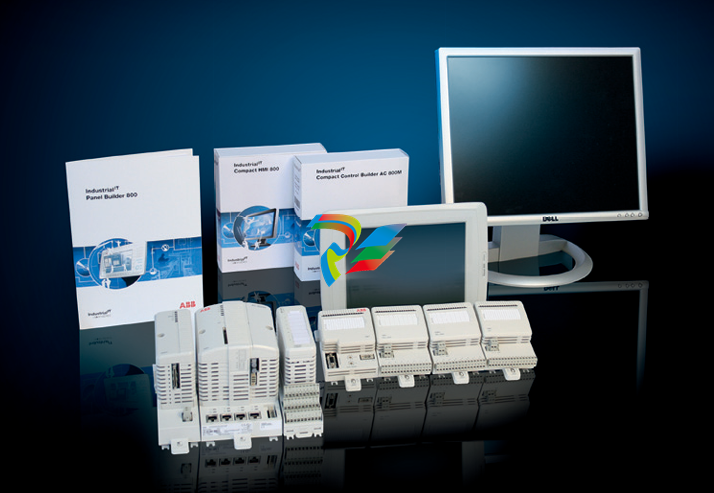

ABB ompact 800 5.1 Product Catalog

 The Compact HMI 800 minimizes the effort involved in

handling HMIs for PLCs and other types of controllers, from

operations, maintenance and engineering perspectives.

With the new Compact HMI 800 easy installation, you

can start working with signal handling and graphics within

approximately 30 minutes.

 As you connect your clients to the network they are ready to

be used as Operator Workplaces. Your Operators benefits

from the one click to information access when requiring ad

ditional information in any area of interest. Scheduled backups

on a separate disc remove your worries about securing your

data.

 Compact HMI 800 is designed to the Windows standard of

interaction, supplemented with an information-centric object

structure, reflecting the information in the factory or plant.

Equipment in the plant is available in the system with all its

associated information, be it operational status information,

technical specifications, drawings, alarm lists, trends, face

plates, tag data sheets, reports, etc.

PLC’s are normally connected to Compact HMI 800 via OPC

technology. Since the HMI system has a built-in OPC client,

finding and connecting the PLC tags and properties is a

simple and fast process. For larger configurations however,

the built-in, Excel-based, Bulk Data Manager is recommended

for efficiency’s sake.

Compact HMI 800 supports all OPC servers on the market,

meaning that any encapsulated PLC driver with an OPC

interface can be connected. Connection to ABB’s AC 800M

process PLCs is particularly easy thanks to the inclusion of

the Compact Control Builder.

Compact HMI 800 5.1

 Compact HMI 800 Base System

 One combined Operator and Engineering Workplace, Aspect Server, Plant Explorer, Softpoint

Server, Scheduler, Audit trail, Reports, Digital Signature, Primary History Logs, PLC Connect,

PLC Connect Dial-Up, Compact Control Builder AC 800M, OPC Server AC 800M and

Graphics Builder. Including: Compact HMI 800 Version 5.1, User Instructions on media,

Installation Instructions, and Mouse Pad.

Article no.

 HMI Operator and Engineering Workplace - Server

 3BSE062160R510

 Signal Additions

 (Total max 10.000)

 50 Signals

500 Signals

 2500 Signals

 Article no.

 3BSE064066R50

 3BSE064066R500

 3BSE064066R2500

 HMI System Options

 Alarm Analysis and Alarm Shelving.

 Alarm Management

 Article no.

 3BSE064069R1

 HMI Operator Workplace Clients

 One Operator Workplace, Process Graphics, Alarm and events, Trends, Reports.

 Note: It is possible to have up to 10 workplaces of any type in total.

 Article no.

 HMI Operator Workplace Client - 200 Signals

 HMI Operator Workplace Client - 500 Signals

 HMI Operator Workplace Client - 1000 Signals

 HMI Operator Workplace Client - 2000 Signals

 HMI Operator Workplace Client - 5000 Signals

 3BSE064068R200

 3BSE064068R500

 3BSE064068R1000

 3BSE064068R2000

 3BSE064068R5000

 HMI Operator Workplace Client - 10000 Signals

 3BSE064068R5001

 HMI Operator Workplace Remote Clients

 One Operator Workplace, Process Graphics, Alarm and events, Trends, Reports.

 Note: It is possible to have up to 10 workplaces of any type in total.

 Article no.

 HMI Operator Workplace Remote Client - 200 Signals

 HMI Operator Workplace Remote Client - 500 Signals

 HMI Operator Workplace Remote Client - 1000 Signals

 HMI Operator Workplace Remote Client - 2000 Signals

 3BSE064070R200

 3BSE064070R500

 3BSE064070R1000

 3BSE064070R2000

 HMI Operator Workplace Remote Client - 5000 Signals

 HMI Operator Workplace Remote Client - 10000 Signals

 3BSE064070R5000

 3BSE064070R5001
