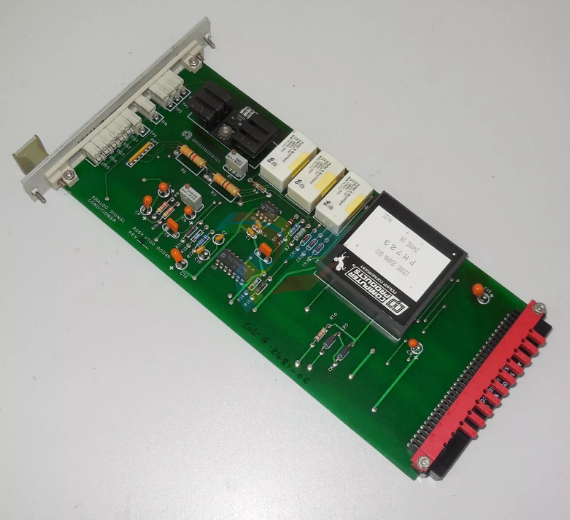

AMAT 0100-00049 Analog Signal Conditioner

 AMAT 0100-00049 Analog Signal Conditioner

This technical guide provides essential specifications and operational details for the Applied Materials (AMAT) 0100-00049. a high-precision analog signal conditioning board used in semiconductor manufacturing.

1. Product Introduction

The AMAT 0100-00049 is an Analog Signal Conditioner PCB designed for precision-dependent wafer processing systems.

Its primary function is to receive raw analog signals from sensors (such as pressure, temperature, or flow sensors) and "condition" them—filtering noise, amplifying weak signals,

and converting them into a standardized format that the central system controller can interpret accurately.

It is a critical component for maintaining the tight tolerances required in modern fabrication labs.

2. Technical Parameter Table

3. Related Models & Same Series

The 0100-series forms the backbone of legacy and mid-generation AMAT tool electronics:

0100-00048: Diagnostic / I/O Status Monitor PCB (often paired with the 00049).

0100-00052: Stepper Drive PCB for precise motor control.

0100-03200: Analog/Serial RTPC Assembly.

0100-20100: VME-based Analog I/O Module.

4. Application Cases

Pressure Monitoring: Conditioning signals from Baratron capacitance manometers in vacuum chambers.

Gas Flow Control: Interfacing with Mass Flow Controllers (MFCs) to ensure accurate chemical delivery during Etch or CVD processes.

Temperature Regulation: Processing thermocouple or pyrometer data for heater pedestal control.

Safety Interlocks: Ensuring that analog threshold levels (like water flow or vacuum depth) are met before high-voltage systems are energized.

5. Product Advantages and Features

Superior Noise Rejection: Specialized circuitry designed to eliminate electromagnetic interference (EMI) common in plasma-intensive environments.

High Linearity: Ensures that the conditioned output is a precise linear representation of the physical sensor reading.

Legacy Support: Specifically engineered to maintain the performance of long-standing "workhorse" tools like the 8300 Hexode or P5000 platforms.

Component-Level Durability: Utilizes industrial-grade capacitors and op-amps rated for continuous 24/7 fab operations.

6. Installation and Maintenance

Installation: Always power down the host rack before insertion. Use an ESD wrist strap to prevent damage to sensitive analog components.

Ensure the board is fully seated into the backplane connectors to maintain signal integrity.

Maintenance: Periodically inspect the board for signs of overheating or "bulging" capacitors, especially in legacy tools.

 Calibration may be required at the system level after board replacement to ensure sensor-to-logic accuracy.

Storage: Store in a moisture-barrier, anti-static bag (ESD Bag) at room temperature to prevent oxidation of the gold-plated edge connectors.

7. Unique Product Description

The AMAT 0100-00049 represents the bridge between the physical world of gas and vacuum and the digital world of process control.

In the high-stakes environment of a semiconductor fab, even a millivolt of signal drift can result in a scrapped wafer batch worth tens of thousands of dollars.

By providing a stable, filtered, and highly accurate analog interface, the 0100-00049 ensures that the system controller "sees" the chamber conditions exactly as they are, enabling the repeatable precision that defines Applied Materials equipment.
