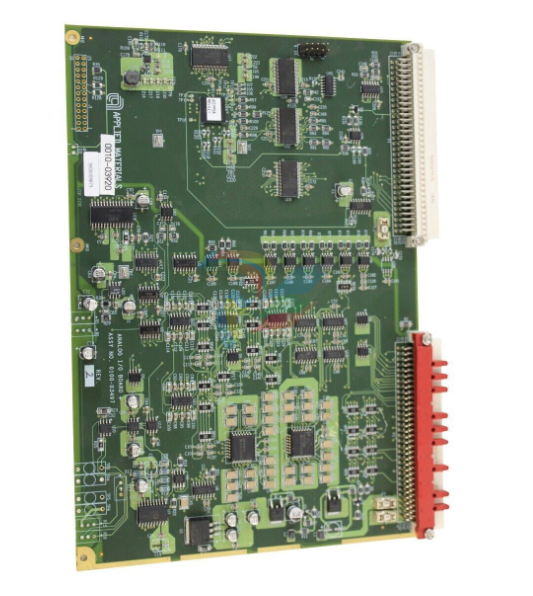

Applied Materials (AMAT) 0100-03920 Analog I/O Interface Board

Applied Materials (AMAT) 0100-03920: Analog I/O Interface Board

The AMAT 0100-03920 is a precision Analog Input/Output (I/O) PCB Board designed for the rigorous demands of Applied Materials semiconductor manufacturing equipment.

It serves as a vital signal conversion layer, translating real-time analog data from sensors—such as mass flow controllers (MFCs), pressure transducers, and temperature probes—into digital signals for the system’s central processing unit.

This board is engineered to maintain signal integrity in environments with high electromagnetic interference (EMI), ensuring stable and repeatable wafer processing.

Technical Parameter Table

Related Models & Same Series

The 0100 series represents the "intelligence" boards that allow AMAT systems to interact with physical hardware:

0100-03497: Often cited as the base PCB for various 0100-039xx configurations.

0100-20002: Standard Analog I/O Interface for newer generation tools.

0100-00396: Analog I/O VME Module for legacy processing systems.

0110-03298: Power/Signal management board frequently found in the same rack.

The 0100-03920 is essential for critical control loops in the following tool types:

Etch Systems: Monitoring RF match positions and gas flow rates to ensure plasma stability.

Chemical Vapor Deposition (CVD): Coordinating high-precision heater temperatures and vacuum throttle valve positions.

Physical Vapor Deposition (PVD): Managing DC power supply feedback for sputtering target erosion control.

Product Advantages and Features

Low Noise Floor: Specifically designed to filter out high-frequency noise generated by RF generators and high-voltage power supplies.

High Linearity: Ensures that analog feedback remains accurate across the full scale, preventing process drift that could lead to wafer scrap.

On-board Diagnostics: Typically includes LED status indicators to help field service engineers (FSEs) quickly identify communication faults.

Robust Connectivity: Features high-density gold-plated connectors to prevent oxidation in the corrosive chemical environments of a cleanroom sub-fab.

Unique Product Description

The AMAT 0100-03920 is the "sensory processor" of the wafer processing chamber.

While other components act as the muscle, this board provides the sight and touch necessary for the tool to "feel" gas pressures and temperatures at the nanometer scale.

It is a foundational replacement part for fabs that prioritize long-term tool uptime and original equipment manufacturer (OEM) accuracy.

Installation and Maintenance

Warning: Failure to use an ESD wrist strap can result in permanent damage to the board's high-sensitivity Op-Amps.

Installation: Power down the tool completely. Align the 0100-03920 with the slot guides in the card cage.

Firmly push until the connectors click into the backplane, then tighten the captive screws.

Maintenance: During preventative maintenance (PM), check for any discoloration on the PCB, which may indicate thermal stress.

Use specialized contact cleaner for the rear DIN connectors if the tool reports intermittent "Analog Input Over-Range" errors.

Calibration: After installation, it is recommended to run the system's "Analog Calibration" recipe to sync the board with the tool's specific MFC and sensor offsets.
