Applied Materials (AMAT) 0100-09006: Intelligent Interface SBC Module

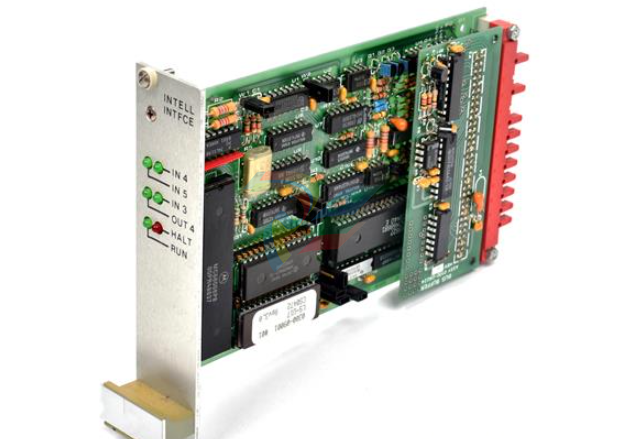

The AMAT 0100-09006 is a high-performance Intelligent Interface Single Board Computer (SBC) designed for the centralized control architecture of Applied Materials semiconductor processing platforms.

Often referred to as a "Liquid Source Assembly PCB" or a "P5000 Board," it manages complex communication protocols between the tool's main controller and various peripheral modules,

 such as liquid source delivery systems and sensor arrays.

Technical Parameter Table

Related Models & Same Series

This board is part of the 0100-09xxx family of intelligent control modules used in high-density rack configurations.

0100-09024: Dedicated Daughterboard often paired with the 0100-09006.

0110-09022: Mini Analog Input/Output (AI/AO) Module.

0110-09023: Mini Digital Input/Output (DI/DO) Module.

0100-09204: VDS II Controller Board (Advanced version).

Application Cases

The 0100-09006 is specifically critical for:

Liquid Source Delivery: Precisely controlling the vapor pressure and delivery of precursors in CVD/ALD processes.

I/O Consolidation: Acting as a localized hub for multiple 25-pin and 37-pin D-Sub interface cables to reduce wiring complexity.

Real-Time Data Processing: Handling local sensor logic to offload processing from the tool's main VME CPU.

Product Advantages and Features

High Port Density: Features 17+ D-Sub connectors, allowing it to interface with dozens of sensors and actuators simultaneously.

Sub-System Autonomy: As an "Intelligent Interface," it can manage localized safety interlocks and feedback loops independently.

Legacy Reliability: Designed for the P5000 platform, it is one of the most stable and long-lived SBC designs in AMAT history.

Enhanced Diagnostics: Typically includes a segmented LED display or array for error code reporting during tool initialization.

Unique Product Description

The AMAT 0100-09006 is the "Local Intelligence" of the sub-system rack.

While standard I/O boards simply pass signals, this SBC interprets them.

It is the primary interface for managing chemical sources where precision is measured in microliters and milliseconds.

For fabs running Precision 5000 or Centura tools, this board is the essential bridge between high-level software commands and physical chemical delivery.

Installation and Maintenance

Technical Note: This module is often part of a larger multi-slot assembly (0130 series).

Installation: Align the board with the backplane connectors of the 8-slot mini-controller.

Ensure all D-Sub cables are clearly labeled and securely fastened with thumb-screws; loose D-Sub connections are the leading cause of "Interface Timeout" errors.

Maintenance: Inspect for dust accumulation between the high-density D-Sub rows, which can cause intermittent shorts in high-humidity cleanrooms.

ESD Warning: This board utilizes high-sensitivity microprocessor components.

Use an ESD-safe workstation and grounded wrist strap for any handling or configuration changes.
