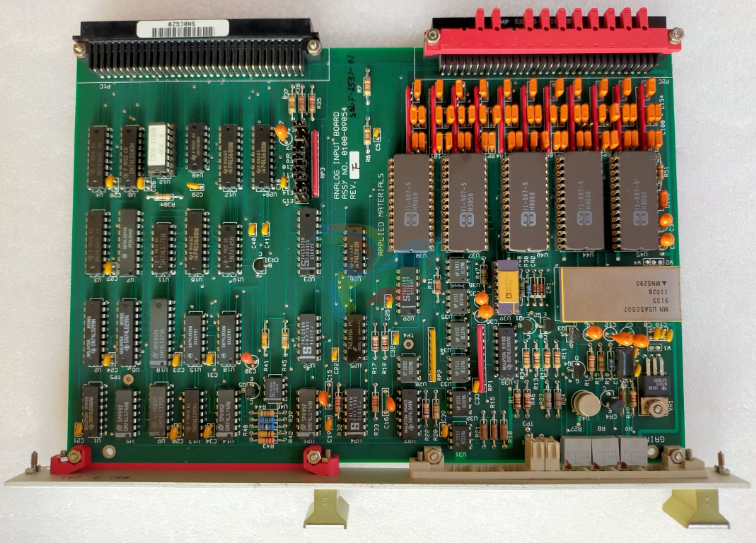

Applied Materials (AMAT) 0100-09054 Precision Analog Input Board

Applied Materials (AMAT) 0100-09054: Precision Analog Input Board

The AMAT 0100-09054 is a specialized Analog Input (AI) Board designed for the high-precision demands of semiconductor fabrication. This module serves as the primary data acquisition interface for the system’s central processing unit,

converting analog signals from various sensors (pressure, temperature, flow) into digital data that the tool's software can process to maintain stable recipe conditions.

Technical Parameter Table

Product Advantages and Features

Multi-Channel Signal Processing: Features high-density dual connectors to handle multiple analog sensor inputs simultaneously.

Real-Time Monitoring: Includes onboard status LEDs that provide instant visual confirmation of the board’s health and signal activity.

Precision A/D Conversion: Engineered with low-noise circuitry to ensure accurate conversion of sensitive low-voltage signals from vacuum and thermal sensors.

Industrial Hardening: Built to operate reliably within the high-EMI (electromagnetic interference) environments typical of plasma-based semiconductor tools.

Application Cases

The 0100-09054 is a fundamental component for several critical semiconductor processes:

CVD (Chemical Vapor Deposition): Monitoring gas flow rates and chamber pressures to ensure uniform film thickness.

Etch Systems: Processing signals from RF match networks and endpoint detection sensors.

PVD (Physical Vapor Deposition): Managing feedback loops for temperature control of the wafer pedestal and chamber walls.

Unique Product Description

The AMAT 0100-09054 is the "sensory input" for advanced wafer processing.

In an industry where a 1% deviation in signal accuracy can result in a scrapped batch of wafers worth thousands of dollars, this board provides the necessary fidelity and stability.

Its design is specifically tailored for the P-5000 and Centura platforms, allowing it to interface seamlessly with the VME backplane while maintaining the tight signal tolerances required for modern sub-micron manufacturing.

Related Models & Other Models in the Same Series

The AMAT 0100 series consists of various interconnected PCB assemblies for the VME control rack:

0100-00396: Analog I/O VME Module (Combined Input/Output).

0100-00979: Stepper Controller Board (Motor control).

0100-20007: Pneumatic Distribution Board.

0100-00629: System Controller PCB.

Installation and MaintenanceInstallation Guidelines:

Chassis Power: Ensure the mainframe power is completely off or in "Safe Service Mode" before removing or inserting boards.

Anti-Static Protocol: Use a grounded ESD wrist strap. Semiconductor PCBs are highly susceptible to damage from static discharge.

Mechanical Alignment: Align the board precisely with the card cage guides. Press firmly to seat the dual connectors into the backplane; do not force if resistance is felt, as this indicates pin misalignment.

Maintenance & Calibration:

Analog Calibration: After replacement, it is standard procedure to run the tool's built-in "Analog Calibration" utility to synchronize the new board with the existing system sensors.

Contact Integrity: Periodically inspect the gold-plated finger connectors for oxidation or debris. Use only electronics-grade cleaners if necessary.

Visual PM: During annual preventive maintenance, check the board for signs of thermal stress or capacitor degradation, especially in high-heat rack environments
