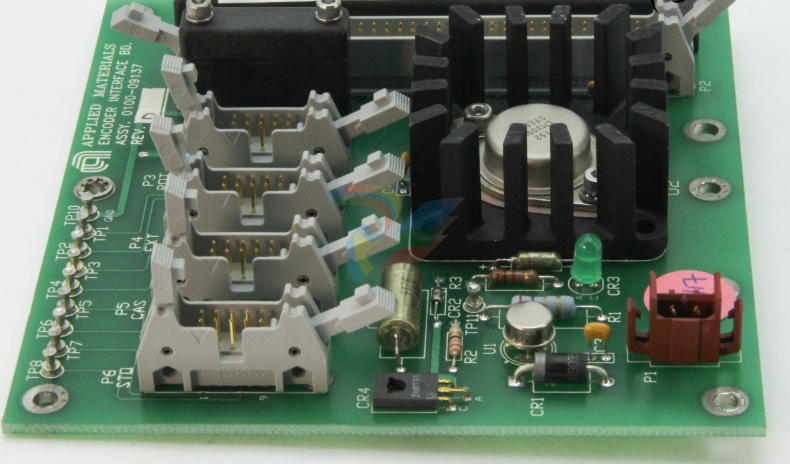

Applied Materials (AMAT) 0100-09137 High-Performance VME Control Module

Applied Materials (AMAT) 0100-09137: High-Performance VME Control Module

The AMAT 0100-09137 is a specialized VME Bus Control Interface Board engineered for the demanding environment of semiconductor fabrication.

As a core component of the Applied Materials tool control architecture, this module facilitates high-speed data communication and synchronization between the mainframe’s central processing unit and the peripheral chamber hardware.

It is predominantly utilized in legacy and "Bridge" toolsets that require robust, deterministic control for wafer processing.

Technical Parameter Table

Product Advantages and Features

Deterministic Control: Provides the low-latency signal processing required for precise gas flow timing and RF generator ignition.

VME Architecture Reliability: Utilizes the industry-standard VMEbus, known for its extreme mechanical and electrical stability in industrial high-interference environments.

Seamless Legacy Integration: Designed to maintain full software compatibility with existing AMAT tool software revisions, making it an ideal drop-in replacement.

Robust Diagnostic Feedback: Features localized circuitry for error detection, allowing the system to flag communication faults before they result in wafer scrap.

Application Cases

The 0100-09137 module is typically found in the following tool configurations:

Chemical Vapor Deposition (CVD): Coordinating the complex sequence of heater lift movements and gas showerhead activation.

Physical Vapor Deposition (PVD): Managing the interface between the system controller and the DC power supplies for sputtering.

Mainframe Communication: Acting as a bridge in the central AC/DC power rack to manage safety interlocks and system-wide EMO (Emergency Off) strings.

Unique Product Description

The AMAT 0100-09137 stands as a testament to the longevity of Applied Materials engineering.

While newer systems move toward ethernet-based control, the 0100-09137 remains the backbone of the Centura and Endura platforms. It is uniquely tuned to handle the high-speed "handshaking" protocols required to move wafers between chambers without collision.

Its multilayer PCB design is specifically hardened against the high-frequency noise generated by plasma etching and deposition processes.

Related Models & Other Models in the Same Series

The 0100-series electronic catalog consists of several modules that work in tandem with the 0100-09137:

0100-09138: Digital I/O Expansion Module.

0100-09145: Video / Sensor Interconnect Board.

0100-01021: Analog Signal Processor.

0100-00396: VME Controller Master Board.

Installation and Maintenance

Installation Procedures:

System De-energization: Power down the VME rack completely. Never "hot-swap" VME boards as this can cause catastrophic damage to the backplane.

ESD Precautions: Wear a grounded wrist strap. The 0100-09137 contains CMOS components highly sensitive to static.

Slot Alignment: Carefully slide the board into its designated slot. Ensure the VME connectors are perfectly aligned with the pins before applying pressure to seat the board.

Maintenance & Care:

Component Inspection: Periodically check the electrolytic capacitors for signs of leakage or bulging, especially in systems running for over 10 years.

Connector Cleaning: Use a specialized non-residue contact cleaner on the gold fingers if the board reports communication "glitches" or intermittent parity errors.

Firmware Check: Ensure the board’s PROM or logic chip revision is compatible with the current software load of the tool.
