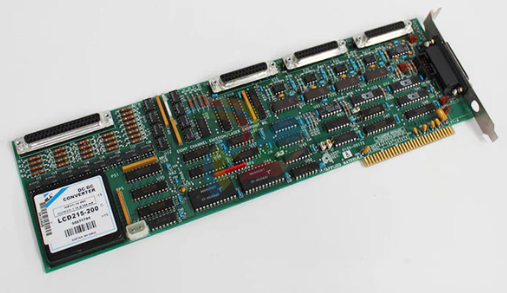

Applied Materials (AMAT) 0100-09172 High-Density Digital I/O Control Board

Applied Materials (AMAT) 0100-09172: High-Density Digital I/O Control Board

The AMAT 0100-09172 is a high-performance Digital Input/Output (I/O) Board designed for the VME-based control systems of Applied Materials semiconductor manufacturing equipment.

This module acts as the critical interface between the tool’s software intelligence and the physical hardware, managing the rapid-fire signals required to actuate valves, sensors, and wafer handling robotics.

Technical Parameter Table

Product Advantages and Features

Sub-Millisecond Response: Engineered for ultra-low latency signal switching, crucial for gas pulse deposition and high-speed robotic transfers.

Optically Isolated Channels: Protects the sensitive VME backplane from voltage spikes and industrial noise generated by heavy-duty solenoids.

Ruggedized Construction: Built with industrial-grade components to survive the thermal cycling and 24/7 operational demands of a modern FAB.

Self-Diagnostic Logic: Features onboard circuitry that can report status failures to the host controller, preventing process errors before they occur.

Application Cases

The 0100-09172 is a versatile module found across several AMAT tool configurations:

Gas Panel Control: Managing the precise opening and closing of MFC (Mass Flow Controller) valves during chemical transitions.

Wafer Transfer Robotics: Coordinating the "Handshake" signals between the transfer chamber robot and the load lock sensors.

Chamber Safety Interlocks: Processing signals from door switches, vacuum gauges, and EMO strings to ensure operator and tool safety.

Unique Product Description

The AMAT 0100-09172 is the "tactile sensor" of the semiconductor tool.

While other boards handle complex calculations, this board is responsible for the literal movement and safety of the process.

Its unique circuit layout is optimized for high-density I/O, allowing a single board to replace multiple older modules, thereby freeing up valuable VME rack space.

It is specifically designed to handle the "dirty" electrical environments of plasma chambers, where electromagnetic interference is a constant threat.

Related Models & Other Models in the Same Series

The 0100-series electronic ecosystem is designed for modularity. Related modules include:

0100-09171: Standard Digital Interface Board.

0100-09137: VME Control Interface Board.

0100-09145: Video/Graphic Interconnect Module.

0100-00396: Analog I/O Processor.

Installation and Maintenance

Installation Guidelines:

Chassis Power-Off: Always shut down the VME rack power before installation. Inserting the 0100-09172 into a "hot" backplane can lead to immediate board failure.

ESD Protection: Utilize a grounded wrist strap and anti-static mat. Static discharge is the leading cause of latent failures in these modules.

Positive Seating: Align the board with the card guides and use steady pressure to seat the connectors. Ensure the captive screws are tightened to prevent vibration-induced signal loss.

Maintenance & Troubleshooting:

LED Monitoring: Utilize the onboard LEDs to verify signal status during troubleshooting. A dark LED where a signal is expected often indicates a failed external sensor or a blown fuse on the board.

Connector Cleaning: Every 12–18 months, or during major tool overhauls, inspect the gold-plated pins for oxidation. Clean with electronics-grade isopropyl alcohol if necessary.

Revision Matching: When replacing a board, ensure the hardware revision (e.g., Rev A, B, or C) matches the tool's software configuration to avoid "Board Mismatch" errors during boot-up.
