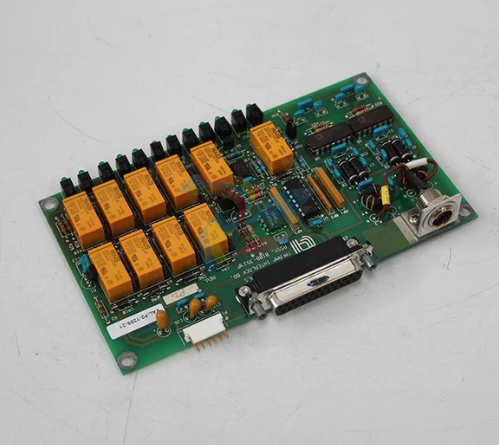

AMAT 0100-35217 TC Amp Interlock PCB Module

AMAT 0100-35217 TC Amp Interlock PCB Module

The AMAT 0100-35217 is a critical Thermocouple (TC) Amplifier and Interlock Board manufactured by Applied Materials.

This high-precision PCB is a dual-function component: it amplifies low-voltage thermal signals from process chamber thermocouples and integrates hardware-level interlock logic.

It plays a fundamental role in thermal management and system safety, ensuring that wafer processing occurs within strict temperature boundaries and automatically halting operations if thermal runaway or sensor failure is detected.

Technical Parameter Table

Related Models

The 0100-35217 is typically found in electronics racks alongside these complementary boards:

0100-09033: Standard TC Amplifier Board (often the predecessor or non-interlock version).

0100-35160: TC Amp & Interlock Board (variant for different chamber configurations).

0100-00999: TC Isolation Amplifier (used for extreme high-voltage environments).

0100-20371: Interlock Status PCB (used for centralized safety monitoring).

Application Cases

Thermal Processing Stability: Used in Rapid Thermal Processing (RTP) and CVD chambers to provide clean, amplified temperature data to the system controller.

Emergency System Shutdown: Acts as a "fail-safe" watchdog. If a thermocouple breaks or exceeds the safety threshold, the 0100-35217 hardware interlock physically breaks the power circuit to the heaters.

High-Precision Etching: Ensures that the pedestal or dome temperature is accurately reported during long-duration etch cycles to maintain etch rate uniformity.

Safety Retrofits: Frequently used as a replacement part in legacy P5000 systems to improve the reliability of temperature-related safety loops.

Product Advantages and Features

Hardware-Level Protection: Unlike software interlocks, the interlock on the 0100-35217 provides a hardwired response, offering protection even if the system software hangs.

High Common-Mode Rejection: Effectively filters out the intense RF (Radio Frequency) noise generated by plasma power supplies, ensuring temperature readings don't "jitter."

Precision Amplification: Converts micro-volt thermocouple outputs into stable, linear signals for accurate processing by the tool's Analog-to-Digital converters.

Long-Term Stability: Built with high-stability resistors and amplifiers to minimize calibration drift over thousands of processing hours.

Other Models in the Same Series

The 0100-35xxx series is Applied Materials' specialized line for I/O and Safety Logic:

0100-35079: H2 Leak Detector Board.

0100-35192: DPS Maintenance Control Board.

0100-35565: RF Interlock Board.

0100-35353: 5-Phase Stepper Motor Driver Interface.

Installation and Maintenance

Installation

De-energize: Ensure the tool is in a safe state and the heater power supply is locked out/tagged out (LOTO).

ESD Precautions: This board contains sensitive operational amplifiers.

Always use an ESD-safe workstation and grounded wrist strap.

Calibration Match: Verify if the gain settings (often set via onboard potentiometers or jumpers) match the specific thermocouple type and chamber range of the unit being replaced.

Maintenance

Calibration Verification: The 0100-35217 should be checked annually using a thermocouple simulator to ensure the amplified output matches the expected voltage curve.

Thermal Inspection: Check the PCB for signs of overheating near the power regulation components, which can occur in high-duty-cycle thermal tools.
