AMAT 0100-35231 Seriplex I/O Distribution Module

AMAT 0100-35231: Seriplex I/O Distribution Module

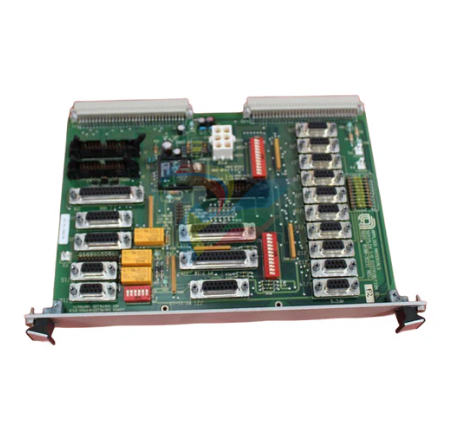

The AMAT 0100-35231 is a specialized Seriplex I/O Distribution Module manufactured by Applied Materials.

This high-efficiency interface board is designed to manage complex sensor and actuator networks within semiconductor process tools.

By utilizing the Seriplex control bus architecture, the 0100-35231 streamlines the wiring and communication between the mainframe controller and the various pneumatic valves, vacuum switches, and position sensors located on the process chamber.

Related Models

The 0100-35231 is frequently integrated into control racks alongside these related Seriplex and I/O components:

0100-35124: Seriplex I/O Master Controller Board.

0100-35054: Chamber Interface Module.

0100-20453: DeviceNet Digital I/O Interface (often used in hybrid network setups).

0100-35066: Pneumatic Interconnect Board.

Application Cases

Wafer Handling Automation: Coordinating the high-speed signals for robotic arms and slit valves to ensure synchronized wafer movement.

Gas Panel Management: Controlling the digital state of Mass Flow Controller (MFC) shut-off valves and pneumatic gas lines.

Vacuum Sequence Control: Monitoring vacuum pressure switches and managing the sequencing of roughing and turbo pump valves.

Interlock Status Aggregation: Collecting distributed safety signals from various chamber sensors and reporting them to the main system interlock loop.

Product Advantages and Features

Reduced Wiring Complexity: The Seriplex architecture allows for a significantly lower cable count compared to point-to-point wiring, reducing the risk of cable failure.

Enhanced Signal Reliability: Designed with high-level noise immunity to prevent signal corruption in the high-EMF environments typical of RF plasma tools.

Localized Processing: By distributing I/O closer to the sensors, the 0100-35231 reduces latency in critical system responses.

Field-Proven Durability: Built to withstand the 24/7 duty cycles of high-volume manufacturing (HVM) fabs without signal drift or hardware fatigue.

Other Models in the Same Series

The 0100-35xxx series is the primary range for Applied Materials' distributed I/O and communication logic:

0100-35065: Serial Isolator PCB.

0100-35192: Maintenance Control Board.

0100-35217: TC Amp & Interlock Module.

0100-35082: Main System Interconnect Board.

Installation and Maintenance

Installation

System Power-Down: Ensure the system controller and the specific I/O bus power supplies are locked out.

Node Addressing: Before seating the board, verify that the Seriplex node address (usually set via DIP switches or jumpers) matches the original board configuration to ensure the controller recognizes the module.

Secure Connection: Ensure all multi-pin connectors are properly torqued; loose Seriplex bus connections can lead to "intermittent node loss" errors.

Maintenance

Diagnostic Check: Utilize the AMAT system software diagnostic screen to monitor the I/O "heartbeat" of the 0100-35231 during PM (Preventive Maintenance).

Connector Integrity: Check for pin corrosion or loose wiring on the terminal blocks, especially in areas where vibration from vacuum pumps is present.
