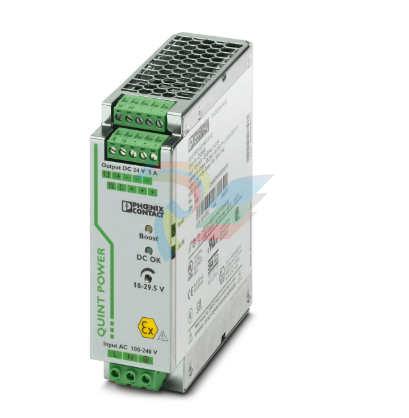

Phoenix 2320908 QUINT-PS/1AC/24DC/ 5/CO - Power supply, with protective coating

QUINT-PS/1AC/24DC/ 5/CO - Power supply, with protective coating

2320908

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking),

 input: 1-phase, output: 24 V DC / 5 A, adjustable from 18 V DC ... 29.5 V DC

QUINT POWER power supplies with maximum functionality

QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection.

 In addition, the high system availability is ensured by preventive function monitoring which reports critical operating states before errors can occur.

Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 18 V DC ... 29.5 V DC are covered.

Nominal input voltage range    100 V AC ... 240 V AC

Input voltage range    85 V AC ... 264 V AC

Electric strength, max.    300 V AC

Voltage type of supply voltage    AC

Inrush current    < 15 A

Inrush current integral (I2t)    < 1 A2s

Inrush current limitation    15 A

AC frequency range    45 Hz ... 65 Hz

Frequency range DC    0 Hz

Mains buffering time    typ. 55 ms (120 V AC)

typ. 55 ms (230 V AC)

Current consumption    1.5 A (100 V AC)

0.6 A (240 V AC)

Nominal power consumption    141 VA

Protective circuit    Transient surge protection; Varistor

Typical response time    < 0.15 s

Input fuse    5 A (slow-blow, internal)

Permissible backup fuse    B6 B10 B16 AC:

Recommended breaker for input protection    6 A ... 16 A (AC: Characteristics B, C, D, K)

Discharge current to PE    < 3.5 mA

DC operation

Nominal input voltage range    110 V DC ... 250 V DC

Input voltage range    110 V DC ... 250 V DC -18 % ... +64 % (UL 508: ≤ 250 V DC)

Voltage type of supply voltage    DC

Current consumption    1.3 A (110 V DC)

0.55 A (250 V DC)

Efficiency    typ. 88.3 % (120 V AC)

typ. 90 % (230 V AC)

Nominal output voltage    24 V DC ±1 %

Setting range of the output voltage (USet)    18 V DC ... 29.5 V DC (> 24 V DC, constant capacity)

Nominal output current (IN)    5 A (-25 °C ... 60 °C, UOUT = 24 V DC)

POWER BOOST (IBoost)    7.5 A (-25 °C ... 40 °C permanent, UOUT = 24 V DC )

Selective Fuse Breaking (ISFB)    30 A (12 ms)

Magnetic circuit breaker tripping    B2 / B4 / C2

Derating    60 °C ... 70 °C (2.5 %/K)

Feedback voltage resistance    ≤ 35 V DC

Protection against overvoltage at the output (OVP)    ≤ 32 V DC

Control deviation    < 1 % (change in load, static 10 % ... 90 %)

< 2 % (change in load, dynamic 10 % ... 90 %)

< 0.1 % (change in input voltage ±10 %)

Residual ripple    < 40 mVPP (with nominal values)

Output power    120 W

180 W

Maximum no-load power dissipation    3 W

Power loss nominal load max.    15 W

Rise time    < 0.1 s (UOUT (10 % ... 90 %))

Connection in parallel    yes, for redundancy and increased capacity

Connection in series    yes

Fuse protection (secondary side)    electronic

thermal-magnetic

thermal

Signal: DC OK active

Output description    UOUT > 0.9 x UN: High signal

Switching voltage range    18 V DC ... 24 V DC

Maximum inrush current    20 mA (short-circuit-proof)

Continuous load current    ≤ 20 mA

Signal: DC OK floating

Output description    Relay contact, UOUT > 0.9 x UN: Contact closed

Maximum switching voltage    30 V AC

24 V DC

Maximum inrush current    0.5 A (ATEX/IECEx: Ohmic loads only)

1 A (ATEX/IECEx: Ohmic loads only)

Continuous load current    1 A

Signal: POWER BOOST, active

Output description    IOUT < IN: High signal

Switching voltage range    18 V DC ... 24 V DC

Output voltage    + 24 V DC

Maximum inrush current    20 mA (short-circuit-proof)

Continuous load current    ≤ 20 mA

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    2.5 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    2.5 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    12

Stripping length    7 mm

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Output

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    2.5 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    2.5 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    12

Stripping length    7 mm

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Signal

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    2.5 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    2.5 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    12

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Types of signaling    LED

Active switching output

Relay contact

Signal output: DC OK active

Status display    UOUT > 0.9 x UN: "DC OK" LED green

Note on status display    UOUT < 0.9 x UN: Flashing "DC OK" LED

IOUT < IN: LED ON

Color    green

Note on status display    LED flashing

Signal output: DC OK floating

Status display    UOUT > 0.9 x UN: "DC OK" LED green

Note on status display    UOUT < 0.9 x UN: Flashing "DC OK" LED

Color    green

Note on status display    LED flashing

Signal output: POWER BOOST, active

Status display    IOUT > IN: LED "BOOST" yellow

Color    yellow

Number of phases    1

Insulation voltage input/output    4 kV AC (type test)

2 kV AC (routine test)

Insulation voltage output / PE    850 V DC (routine test)

Insulation voltage input / PE    3.5 kV AC (type test)

2 kV AC (routine test)

Product family    QUINT POWER

MTBF (IEC 61709. SN 29500)    > 1134000 h (25 °C)

> 635000 h (40 °C)

Insulation characteristics

Protection class    I

Degree of pollution    2

Width    40 mm

Height    130 mm

Depth    125 mm

Installation dimensions

Installation distance right/left    5 mm / 5 mm

Installation distance top/bottom    50 mm / 50 mm

Alternative assembly

Width    122 mm

Height    130 mm

Depth    43 mm
