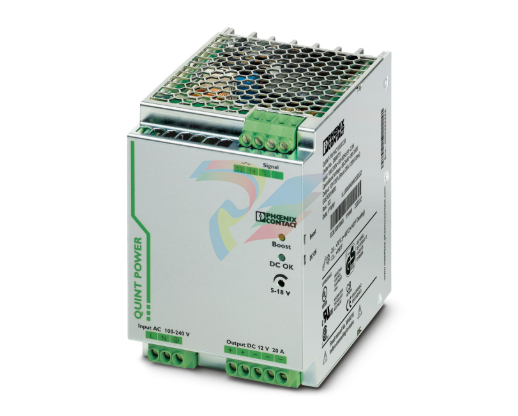

Phoenix QUINT-PS/1AC/12DC/20 - Power supply 2866721

QUINT-PS/1AC/12DC/20 - Power supply

2866721

Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking),

input: 1-phase, output: 12 V DC / 20 A, adjustable from 5 V DC ... 18 V DC, 90 V DC ... 350 V DC

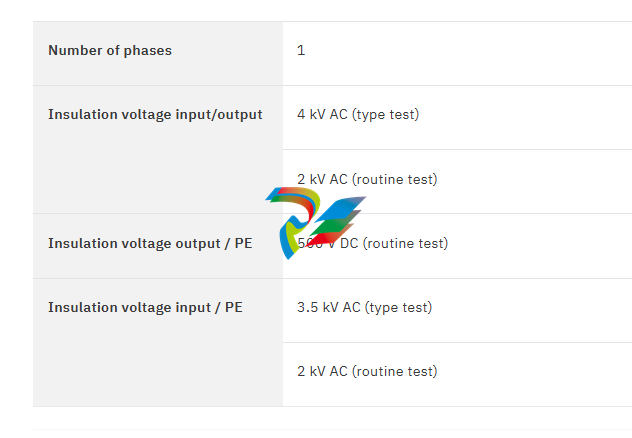

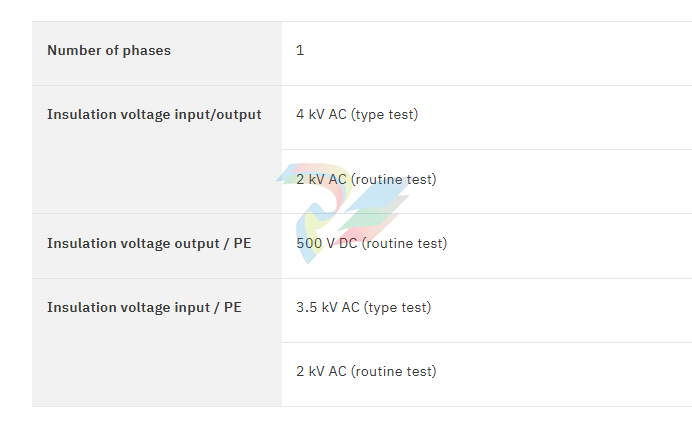

Nominal input voltage range    100 V AC ... 240 V AC

Input voltage range    85 V AC ... 264 V AC

90 V DC ... 350 V DC (UL 508: ≤ 250 V DC)

Input voltage range AC    85 V AC ... 264 V AC

Input voltage range DC    90 V DC ... 350 V DC (UL 508: ≤ 250 V DC)

Electric strength, max.    300 V AC

Voltage type of supply voltage    AC

Inrush current    < 20 A (typical)

Inrush current integral (I2t)    < 3.2 A2s

AC frequency range    45 Hz ... 65 Hz

Frequency range DC    0 Hz

Mains buffering time    typ. 40 ms (120 V AC)

typ. 40 ms (230 V AC)

Current consumption    2.4 A (120 V AC)

1.4 A (230 V AC)

2.5 A (110 V DC)

1.2 A (220 V DC)

Nominal power consumption    311 VA

Protective circuit    Transient surge protection; Varistor

Typical response time    < 1 s

Input fuse    12 A (slow-blow, internal)

Permissible backup fuse    B10 B16 AC:

Permissible DC backup fuse    DC: Connect a suitable fuse upstream

Recommended breaker for input protection    10 A ... 16 A (AC: Characteristics B, C, D, K)

Discharge current to PE    < 3.5 mA

DC operation

Voltage type of supply voltage    DC

Efficiency    > 90 % (for 230 V AC and nominal values)

Output characteristic    U/I

Nominal output voltage    12 V DC ±1 %

Setting range of the output voltage (USet)    5 V DC ... 18 V DC (> 12 V DC, constant capacity restricted)

Nominal output current (IN)    20 A (-25 °C ... 60 °C)

POWER BOOST (IBoost)    26 A (-25 °C ... 40 °C permanent)

Selective Fuse Breaking (ISFB)    120 A (12 ms)

Magnetic circuit breaker tripping    B2 / B4 / B6 / B10 / C2 / C4 / C6

Derating    60 °C ... 70 °C (2.5 %/K)

Feedback voltage resistance    max. 25 V DC

Protection against overvoltage at the output (OVP)    < 25 V DC

Control deviation    < 1 % (change in load, static 10 % ... 90 %)

< 2 % (change in load, dynamic 10 % ... 90 %)

< 0.1 % (change in input voltage ±10 %)

Residual ripple    < 50 mVPP (with nominal values)

Output power    240 W

Maximum no-load power dissipation    6 W

Power loss nominal load max.    29 W

Rise time    < 0.5 ms (UOUT (10 % ... 90 %))

Connection in parallel    yes, for redundancy and increased capacity

Connection in series    yes

Fuse protection (secondary side)    electronic

thermal-magnetic

thermal

Signal: DC OK active

Output description    UOUT > 0.9 x UN: High signal

Switching voltage range    5 V DC ... 12 V DC

Output voltage    12 V DC

Maximum inrush current    ≤ 20 mA (short-circuit-proof)

Continuous load current    ≤ 20 mA

Signal: DC OK floating

Output description    Relay contact, UOUT > 0.9 x UN: Contact closed

Maximum switching voltage    30 V AC

24 V DC

Maximum inrush current    0.5 A

1 A

Continuous load current    1 A

Signal: POWER BOOST, active

Output description    IOUT < IN: High signal

Switching voltage range    5 V DC ... 12 V DC

Output voltage    12 V DC

Maximum inrush current    ≤ 20 mA (short-circuit-proof)

Continuous load current    ≤ 20 mA

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    6 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    4 mm²

Conductor cross-section AWG min.    18

Conductor cross-section AWG max.    10

Stripping length    7 mm

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Output

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    6 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    4 mm²

Conductor cross-section AWG min.    12

Conductor cross-section AWG max.    10

Stripping length    7 mm

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Signal

Connection method    Screw connection

Conductor cross-section, rigid min.    0.2 mm²

Conductor cross-section, rigid max.    6 mm²

Conductor cross-section flexible min.    0.2 mm²

Conductor cross-section flexible max.    4 mm²

Conductor cross-section AWG min.    18

Conductor cross-section AWG max.    10

Screw thread    M3

Tightening torque, min    0.5 Nm

Tightening torque max    0.6 Nm

Types of signaling    LED

Active switching output

Relay contact

Signal output: DC OK active

Status display    UOUT > 0.9 x UN: "DC OK" LED green

Note on status display    UOUT < 0.9 x UN: Flashing "DC OK" LED

IOUT < IN: LED ON

Signal output: DC OK floating

Status display    UOUT > 0.9 x UN: "DC OK" LED green

Note on status display    UOUT < 0.9 x UN: Flashing "DC OK" LED

Signal output: POWER BOOST, active

Status display    IOUT > IN: LED "BOOST" yellow
