CTI 2500P-ACP1 Application Coprocessor (MATURE - replaced by 2500P-JACP)

2500P-ACP1 Application Coprocessor (MATURE - replaced by 2500P-JACP)

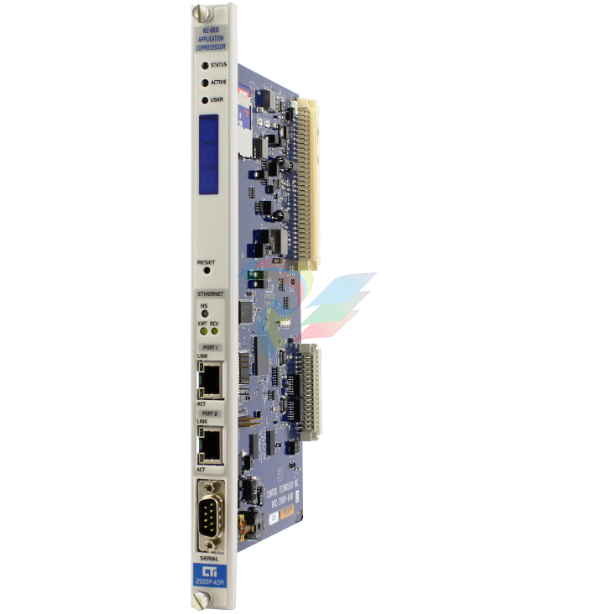

The 2500P-ACP1 module is a general-purpose auxiliary controller that enhances the capabilities of all CTI 2500 Series® and SIMATIC® 505 PLC systems.

This Advanced Function Module includes high-speed processing and multi-protocol communications support to provide existing systems with a significant increase in performance, features, and functionality.

NOTE: 2500P-ACP1 works with Simatic®/TI 545/555 CPUs using 2572.

2572-A, or 505-CP2572 Ethernet modules, or using a high-density word interface over the backplane (with performance restrictions).

However, for best performance we recommend CTI 2500 Series® Processors when using 2500P-ACP1.

Features

Programs using open-standards IEC-61131 languages

Exhanges data between RLL program on host PLC and IEC-61131 program

Supports Modbus server and client (serial and Ethernet)

Supports EtherNet/IP Adapter/Scanner/Tag Client

Network Data Exchange with other CTI processors

Optimized for high-speed communications with 2500P Series® CPUs

Ability to log data in real time to on-board SD card

2500-C100 - CPU w/128K user memory

2500-C200 - CPU w/256K user memory

2500-C300 - CPU w/512K user memory

2500-C400 - CPU w/3072K user memory

Up to 512 loops; 512 alarms;

8192 digital/analog I/O; Built-in:

Ethernet; USB; SD card slot;

Profibus-DP master and RS485

I/O ports

Coprocessors

2500P-ACP1 - Application Coprocessor

2500P-ECC1 - Ethernet Communications

Coprocessor

High-performance modules offer

low-cost, high-performance

solutions for computing and

communications applications,

incl. HMI migrations,  RLL to

other programming languages

data exchanges , etc.
