CTI 2500P-JACP Janus Application Coprocessor

2500P-JACP Janus Application Coprocessor

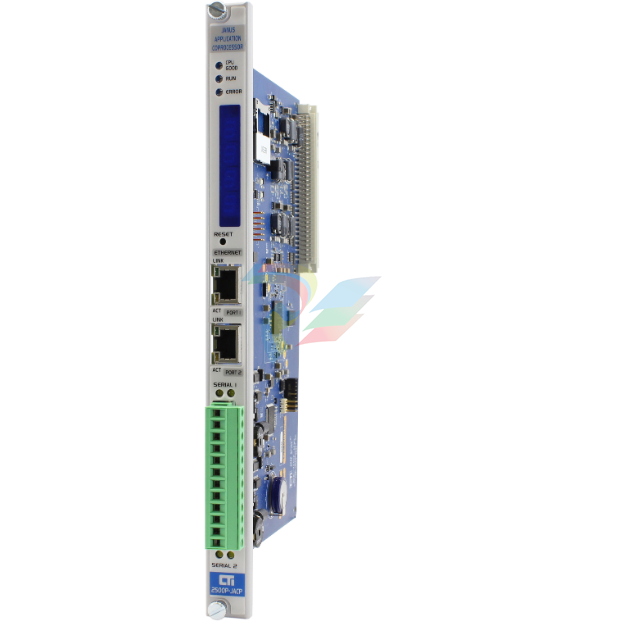

The 2500P-JACP Janus Application Coprocessor is a general-purpose auxiliary controller that enhances the capabilities of all CTI 2500 Series® and SIMATIC® 505 PLC systems.

This Advanced Function Module is based on Janus technology and includes high-speed processing and multi-protocol communications support to provide existing systems with a significant increase in performance, features, and functionality.

Because of its broad communications capabilities and ability to store large amounts of data on-board, the 2500P-JACP is ideal for Edge Computing applications, bringing computation and data storage closer to the location where it is needed, to improve response times and save bandwidth.

The 2500P-JACP runs as a PLC coprocessor performing complex logic/math functions, data logging, and communications with external devices.

Although the 2500P-JACP can operate as a standalone controller, the control application generally requires data transfer between a host PLC and the module. Two different data transfer options are provided:

Block Transfer Driver: The 2500P-JACP enables the user to configure the Block Transfer Driver which optimizes the exchange of up to 2048 data points with a Siemens, TI, or CTI PLC using the special function I/O backplane protocol.

The application can select to exchange V, X/Y, WX/WY, or Control Relays for continuous Read or Read/Write. Note this feature allows the 2500P-JACP to be used with existing Simatic/TI 545 and 555 PLCs.

Data Cache: Proprietary link offering enhanced data throughput to CTI 2500 Series® controllers via a dedicated Ethernet connection. Supports up to 6144 variables mapped to any PLC memory type (including Loop/Alarm variables).

The 2500P-JACP includes two external 10/100/1000Mb Ethernet ports with automatic

detection of network speed, duplex mode, and cable wiring.

An aliasing and isolation feature allows the two network ports to exist on two separate networks, a useful feature for isolating networks of drives or other I/O devices from the main plant communications network.

Features

Adds IEC-61131 languages, functions, and memory organization features to existing CTI 2500 Series® and SIMATIC® 505 controllers

Advanced diagnostics and module status provided by the embedded web server

Embedded client/server protocols perform data transfer based on configuration tables without the need for any additional logic in the PLC or 2500P-JACP application program

High-speed data transfer and RTC time synchronization with CTI controllers

Supports user-created graphics pages containing variable data which can be accessed via web browser

COMMUNICATIONS PROTOCOLS

CAMP Client (TCP, UDP, Multicast)

CAMP Server

Block Transfer Driver for communication with Simatic/TI 545 and 555 processors

Open Modbus (Client, Server)

Ethernet/IP Scanner, Adapter, Tag Client, Explicit Message Client, Explicit Message Server, Flex I/O Scanner

Profinet Controller and Device (Future)

Serial Modbus RTU (Master, Slave)

General ASCII Send/Receive

TCP/UDP Management Functions

Network Data Exchange

MQTT

OPC-UA Server
