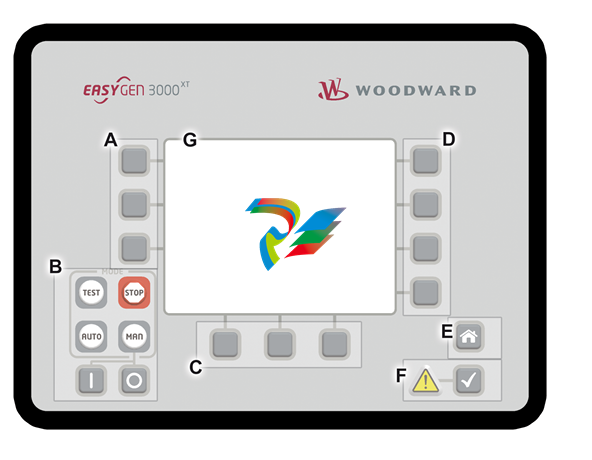

Fig. 5: Front Panel, Overview of Functional Groups of easYgen-3000XT with plastic housing

A Softbutton Group "Display"

B Button Group "MODE"

C Softbutton Group "Operation"

D Softbutton Group "Navigation"

E "Home" (screen) button

F Group "ALARMS" (sign and button)

G LCD Display (Screen)

The softbutton groups A, C, and D provide the following functions

via context-sensitive softkeys:

A "Display"- Change the method of voltage and power calcu

lations displayed.

C "Operation"- Used to perform manual operation of the genset

and the breakers (Single Line Diagram).

Sometimes used for settings' input.

D "Navigation"- Navigation between system and configuration

screens, and alarm list.

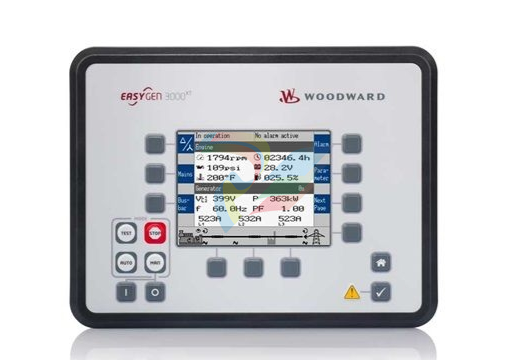

Fig. 6: Front panel of easYgen-3000XT with plastic housing

1..7. 11..13 SoftKey Buttons; momentary function

visible in "Display" (20)

11..13 SoftKey Buttons controlling system via

Single Line Diagram (if visible)

8 HOME Button: Back to main screen

with one click only

9..10 Warning sign (illuminated by warning)

and alarm acknowledge button

14..19 Button Group "Modes"

14. 15. 18.

19

MODE selectors, illuminated

14 STOP MODE

15 MANUAL MODE

16 STOP prime mover in MANUAL

MODE

17 START prime mover in MANUAL

MODE

18 AUTO MODE

19 TEST MODE

20 Display

The display shows context-sensitive softkey symbols, the Single

Line Diagram, measuring values, monitoring values and graphs,

modes of operation, (graphic) equations of LogicsManager (LM)

and AnalogManager (AM), and alarms

Four “Home Screen” display alternatives are available:– Generator– Generator/Mains– Generator/Busbar– Generator/Engine– The "selection" of the displayed parameters is depending

on softbutton [display mode]

n “Home Screen” Generator values are:– Voltage, power, frequency, power factor, and three currents

n “Home Screen” Generator/Mains values are:– The mains is indicated with voltage, power, frequency,

power factor, and current– The generator is indicated with voltage, power, frequency,

power factor, and three currents

n “Home Screen” Generator/Busbar values are:– The busbar is indicated with voltage and frequency– Additionally the generated active- and reactive power of all

easYgens (in the same segment) are displayed

n “Home Screen” Generator/Engine values are:– Engine speed (rpm)– Oil pressure (bar or psi)– Water temperature (°C or °F)– Operating hours (h)– Battery voltage (V)– Fuel level (%)

n Two display brightness levels can be switched by Logics

Manager. Can be used for e.g.:– Key activation determined– Brightness reduction on navigation bridge (vessels)– Saving energy

Find menu: “Parameter è Configure HMI

è Configure display”

n Lock keypad function is determined by LogicsManager

Find menu (ToolKit only!): “Parameter è Configure HMI

è Configure display”

The illuminations indicate the following states:

"Buttons"- 14: operation mode STOP active (blinking if speed

detected)

15: operation mode MANUAL active

18: operation mode AUTOMATIC active

19: operation mode TEST active (starts blinking 5

seconds before TEST mode with timer exceeds)

"ALARMS"- 10 (Warning sign triangle):

Slow blinking (about once per second): Alarm mes

sages are active and not acknowledged in the con

trol unit.

Fast blinking (about 6 times per second): Internal

copy process after flashing a software update is still

running or load the default settings is initiated.

Permanently illuminated: Alarm message is

acknowledged (horn reset) but still pending.

All buttons are illuminated during the boot process of the device.

NEW and updated features

n The “Home Screen” button provides an one-click-jump back to

the overview starting point

Two customizable softbuttons [1] and [2]

n allow own indications to display engine and auxiliary values, for

example.

Find menu: “Parameter è Configure HMI

è Configure customer screen x”

n (full access via ToolKit only; name/description cannot be

changed via HMI)

LEDs Indicate State of Metal Housing Variant

The metal housing variant is coming with two DUO LEDs red/

green/orange (orange = red/green simultaneously):

“Communication” for visualizing communication state:– Off: no data received by any CAN port– Toggling green/off: any data is received by any CAN port– Red:

missing member alarm is active– Toggling red/green: missing member is active and data

received by any CAN port

n “Operation” for device state indication:– Off: the unit is not ready for operation (depending on

LogicsManager "Ready for operation)– Green: the unit is ready for operation and no alarm is active

or latched– Toggling green/red: the unit is ready for operation and a

warning alarm in the system is active or latched– Red: the unit is ready for operation and a shutdown alarm

in the system is active or latched.– Green blinking fast (about 6 times per second) and red is

permanently off: Internal copy process after flashing a soft

ware update is still running or "Load default settings" is initi

ated
