Woodward 8440-2082 EasyGen 3200XT Genset Controller

Woodward 8440-2082  EasyGen 3200XT Genset Controller

The easYgen-3000XT offers four operation modes:

n AUTO

n MANUAL (MAN)

n TEST

n STOP

n ... and an internal (non) operating phase during starting the

device itself

The plastic housing (HMI) version of the easYgen-3000XT enables

to select an operation mode by pressing the according button at

the front panel - if current settings allow this function.

For more information about the operation modes please see

Ä Chapter 5.2 “Change Operating Modes” on page 460.

Mount Unit (Plastic Housing)

Mount the unit either using the clamp fasteners (Ä Chapter 3.2.1

“Clamp Fastener Installation” on page 42) or the screw kit

(Ä Chapter 3.2.2 “Screw Kit Installation” on page 43).

Clamp Fastener Installation

For installation into a door panel with the fastening clamps, pro

ceed as follows:

Fig. 13: Remove terminals

Fig. 14: Insert screws in clamps

Cut out the panel according to the dimensions in Fig. 12、

Loosen the wire connection terminal screws on the back of

the unit and remove the wire connection terminal strip if

required.

Insert the four clamping screws into the clamp inserts from

the shown side (Fig. 14; opposite the nut insert) until they are

almost flush. Do not completely insert the screws into the

clamp inserts.

Insert the unit into the panel cutout. Verify that the unit fits

correctly in the cutout. If the panel cutout is not big enough,

enlarge it accordingly

Re-install the clamp inserts by tilting the insert to a 45° angle.

(Fig. 15/1) Insert the nose of the insert into the slot on the

side of the housing. (Fig. 15/2) Raise the clamp insert so that

it is parallel to the control panel.

Tighten the clamping screws (Fig. 16/1) until the control unit

is secured to the control panel (Fig. 16/2). Over tightening of

these screws may result in the clamp inserts or the housing

breaking. Do not exceed the recommended tightening torque

of 0.1 Nm.

Reattach the wire connection terminal strip (Fig. 17) and

secure them with the side screws.

Proceed as follows to install the unit using the screw kit:

Cut out the panel and drill the holes according to the dimen

sions in Fig. 18 (dimensions shown in mm).

Insert the unit into the panel cutout. Verify that the unit fits

correctly in the cutout. If the panel cutout is not big enough,

enlarge it accordingly.

Insert the screws and tighten to 0.6 Nm (5.3 pound inches) of

torque

The device terminals are allocated (similarly for all housing var

iants) as follows:

n Plastic housing - for easYgen-3200XT-P1 and

easYgen-3200XT-P1-LT

n Sheet metal housing - for easYgen-3100XT-P1

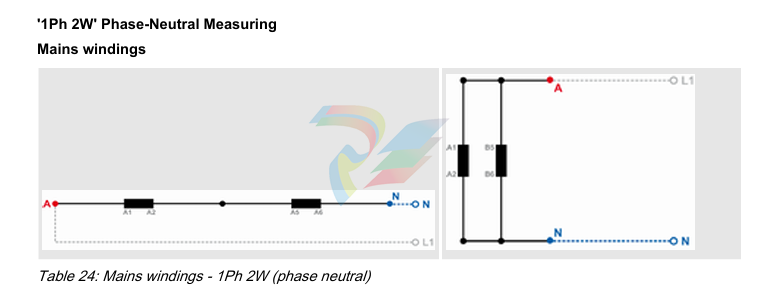

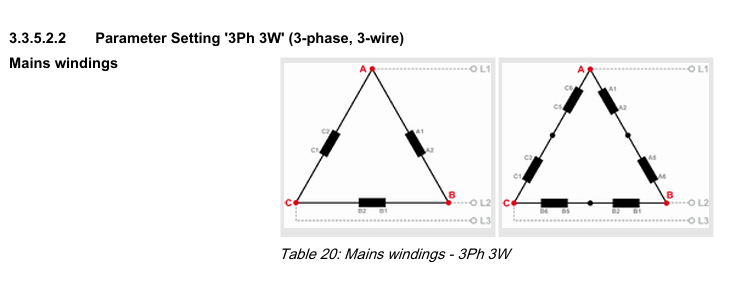

Parameter Setting '3Ph 4W OD' (3-phase, 4-wire, Open delta)

Generator windings

A generator system that is connected to the load through a 3

phase, 4-wire connection but have the device wired for a 3-phase,

3-wire installation may have the L2 phase grounded on the secon

dary side. In this application the device will be configured for 3

phase, 4-wire OD for correct power measurement.
