Parameter CL Setting range

[Default]

Description

1785 Mains rated

current

2 5 to 32000 A

[300 A]

This value specifies the mains rated current, which is used as a reference

figure for related functions.

1858 1Ph2W voltage

measuring

3 [Phase

phase]

The unit is configured for measuring phase-phase voltages if 1Ph 2W meas

uring is selected.

Phase - neutral The unit is configured for measuring phase-neutral voltages if 1Ph 2W meas

uring is selected.

Notes

For information on measuring principles refer to Ä Chapter 3.2.5.1 “Generator

Voltage” on page 47.

Never configure the busbar measurement for phase-neutral, if the other sys

tems like mains and generator are configured as 3Ph 3W or 3Ph 4W. The

phase angle for synchronization would be not correct.

1859 1Ph2W phase

rotation

3 [CW] A clockwise rotation field is considered for 1Ph 2W measuring .

CCW A counter-clockwise rotation field is considered for 1Ph 2W measuring.

Notes

For information on measuring principles refer to Ä Chapter 3.2.5.1 “Generator

Voltage” on page 47.

1851 Generator

voltage meas

uring

2 3Ph 4W OD Measurement is performed Line-Neutral (Open Delta connected system). The

voltage is connected via transformer with 3 Wire.

Phase voltages and the neutral must be connected for proper calculation.

Measurement, display and protection are adjusted according to the rules for

Open Delta connected systems.

Monitoring refers to the following voltages:

n VL12. VL23 and VL31

1Ph 3W Measurement is performed Line-Neutral (WYE connected system) and Line

Line (Delta connected system). The protection depends on the setting of

parameter 1770 Ä p. 109.

Measurement, display, and protection are adjusted according to the rules for

single-phase systems.

Monitoring refers to the following voltages:

n VL13 (parameter 1770 Ä p. 109 configured to "Phase

phase")

n VL1N, VL3N (parameter 1770 Ä p. 109 configured to

"Phase-neutral")

1Ph 2W Measurement is performed Line-Neutral (WYE connected system) if param

eter 1858 Ä p. 99 is configured to "Phase - neutral" and Line-Line (Delta con

nected system) if parameter 1858 Ä p. 99 is configured to "Phase - phase".

Measurement, display and protection are adjusted according to the rules for

phase-phase systems.

Monitoring refers to the following voltages:

n VL1N, VL12

3Ph 3W Measurement is performed Line-Line (Delta connected system). Phase vol

tages must be connected for proper calculation.

Measurement, display and protection are adjusted according to the rules for

Delta connected systems.

Monitoring refers to the following voltages:

n VL12. VL23. VL31

ID Parameter CL Setting range

[Default]

Description

[3Ph 4W] Measurement is performed Line-Neutral (WYE connected system) and Line

Line (Delta connected system). The protection depends on the setting of

parameter 1770 Ä p. 109.

Phase voltages and the neutral must be connected for proper calculation.

Measurement, display and protection are adjusted according to the rules for

WYE connected systems.

Monitoring refers to the following voltages:

n VL12. VL23 and VL31 (parameter 1770 Ä p. 109 config

ured to "Phase-phase")

n VL1N, VL2N and VL3N (parameter 1770 Ä p. 109 config

ured to "Phase-neutral")

Notes

If this parameter is configured to 1Ph 3W, the generator and mains rated vol

tages (parameters 1766 Ä p. 98 and 1768 Ä p. 98) must be entered as Line

Line (Delta) and the busbar 1 rated voltage (parameter 1781 Ä p. 98) must

be entered as Line-Neutral (WYE).

For information on measuring principles refer to Ä Chapter 3.2.5.1 “Generator

Voltage” on page 47.

1850 Generator cur

rent measuring

2 [L1 L2 L3 ] All three phases are monitored. Measurement, display and protection are

adjusted according to the rules for 3-phase measurement. Monitoring refers

to the following currents: IL1. IL2. IL3

Phase L{1/2/3} Only one phase is monitored. Measurement, display and protection are

adjusted according to the rules for single-phase measurement.

Monitoring refers to the selected phase.

Notes

This parameter is only effective if generator voltage measuring (param

eter 1851 Ä p. 99) is configured to "3Ph 4W" or "3Ph 3W".

For information on measuring principles refer to Ä Chapter 3.2.6.1 “Generator

Current” on page 66.

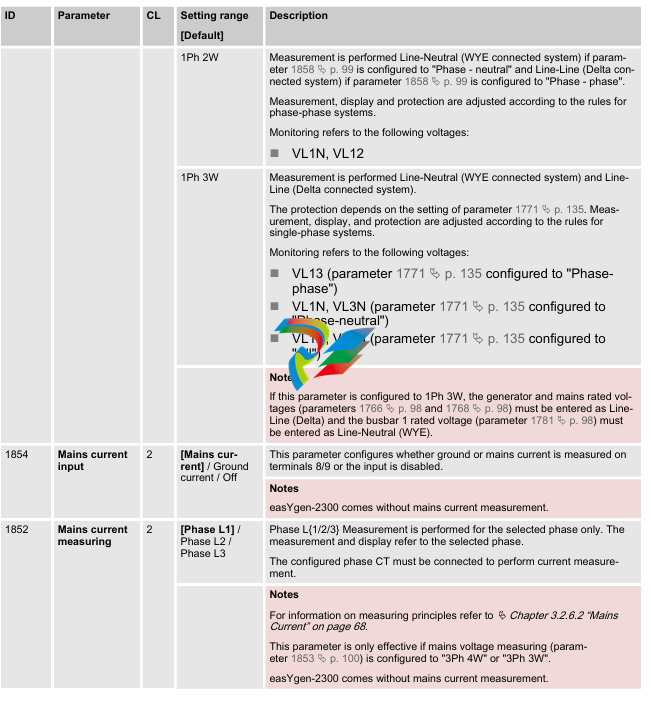

1853 Mains voltage

measuring

2 [3Ph 4W] Measurement is performed Line-Neutral (WYE connected system) and Line

Line (Delta connected system). The protection depends on the setting of

parameter 1771 Ä p. 135.

Phase voltages and the neutral must be connected for proper calculation.

Measurement, display and protection are adjusted according to the rules for

WYE connected systems.

Monitoring refers to the following voltages:

n VL12. VL23 and VL31 (parameter 1771 Ä p. 135 config

ured to "Phase-phase")

n VL1N, VL2N and VL3N (parameter 1771 Ä p. 135 config

ured to "Phase-neutral")

n VL12. VL23. VL31. VL1N, VL2N and VL3N (parameter

1771 Ä p. 135 configured to "All")

3Ph 3W Measurement is performed Line-Line (Delta connected system). Phase vol

tages must be connected for proper calculation.

Measurement,
