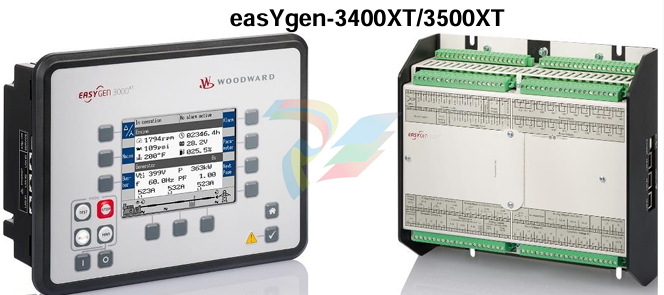

Woodward easYgen-3500XT-P2-LT-RENTAL 8440-2291 Genset Control for

Woodward easYgen-3500XT-P2-LT-RENTAL 8440-2291  Genset Control for

Genset Control for

Complex Paralleling Operation

New Features

✓ Built-In Redundant Ethernet

✓ Power Measurement Class 1

✓ Direct Connect Up to 690 VAC

✓ AnalogManager & Editable Screens

✓ Multi-Interface ToolKit connectivity

✓ Face plate with tactile buttons

✓ Drop-In replacement

Premium genset control

for complex paralleling

applications of up to 32

gensets in

• Prime Power &

Cogeneration (CHP)

• Peak shaving

operation

• Emergency operation

• Import/Export

operation

• Islanded & Utility

parallel operation

• Group controller and LS

6XT support to manage

large fleet of gensets and

circuit breakers

• Run-Up Synchronization

• Built-in active voltage

regulation

• Complete engine,

generator and utility

protection

• Up to 9 communication

ports: 3xEthernet, 3xCAN

(CANOpen and J1939),

RS-485. USB, Interface

expansion card

• Customizable logic, HMI

screens, and alarms

• Dedicated low

temperature display

variants

• UL 61010. UL 6200. CSA,

RoHS 2. and marine

(ABS, LR) compliance

Power supply ..........................................................12/24 VDC (8 to 40 VDC)

Intrinsic consumption .....................................  max. 22 W (LT: max.32 W)

Ambient temperature (operation) ............... -20 to 70 °C (LT: -40 to 70 °C)

Ambient temperature (storage) ...................... -30 to 80 °C / -22 to 176 °F

Ambient humidity..................................................... 95%, non-condensing

Voltage (software configurable) ..................................................... ( /)

100 VAC  Rated (Vrated) ............................................ 69/120 VAC

Max. value (Vmax) ............................................ 86/150 VAC

and 400 /600 VAC  Rated (Vrated)* .......................................... 400/690 VAC

Max. value (Vmax) .......................................... 520/897 VAC

Rated surge volt. (Vsurge) .................................................... 6.0 kV

Accuracy ..................................................................................... Class 0.5

Measurable alternator windings . 3p-3w, 3p-4w, 3p-4w OD, 1p-2w, 1p-3w

Setting range ................... primary ................................. 50 to 650.000 VAC

Linear measuring range ............................................................ 1.25×Vrated

Measuring frequency ............................................ 50/60 Hz (30 to 85 Hz)

High Impedance Input; Resistance per path ................................. 2.5 M

Max. power consumption per path .............................................. < 0.15 W

Current (Isolated, software configurable)     Rated (Irated) ......... 1A or 5A

Linear measuring range ...................................................... Igen = 3.0×Irated

Imains/ground = 1.5×Irated

Setting range ........................................................................ 1 to 32.000 A

Burden ........................................................................................ < 0.10 VA

Rated short-time overcurrent (1 s) ........................[1] 50×Irated, [5] 10×Irated

Accuracy .................................................................................... Class 0.5

Power .........................................................................................................

Setting range ........................................................ 0.5 to 99.999.9 kW/kvar

Accuracy ..................................................................................... Class 1.0

Discrete inputs .............................................................................. isolated

Input range ............................................................12/24 VDC (8 to 40 VDC)

Input resistance ............................................................ approx. 20 kOhms

Transistor outputs (P2 only) ......................................................... isolated

Rated switching voltage ......................................................... max. 24 VDC

Maximum switching voltage ............................................................ 40 VDC

Maximum switching current .................................................... 300 mA DC

Isolation Test voltage (<1s) ........................................................... 500 VAC

Isolation voltage (continuously) ................................................. 100 VAC/DC

Relay outputs ................................................................................. isolated

Contact material ............................................................................. AgCdO

Load (GP) ..................................................................... 2.00 AAC@250 VAC

2.00 ADC@24 VDC / 0.36 ADC@125 VDC / 0.18 ADC@250 VDC

Analog inputs (isolated) .........................................................freely scalable

Type 1 .............................................. 0 to 1 V / 0 to 2000 Ohms /
