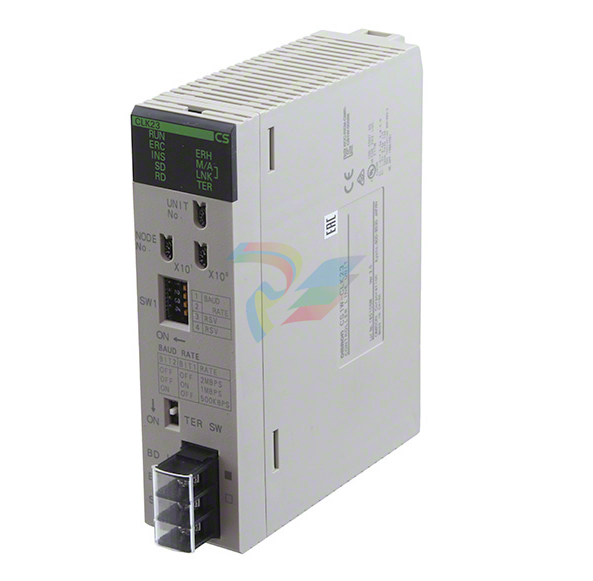

OMRON CS1W-CLK13 PLC communication module

OMRON CS1W-CLK13 PLC communication module

General Specifications

*1. C200HW-PA204/PA204R Power Supply Units shipped before March 2010 have power supply voltage specifications of 100 to 120 VAC/200 to 240 VAC, 50/60 Hz.

*2. Disconnect the Power Supply Unit’s LG terminal from the GR terminal when testing insulation and dielectric strength.

Testing the insulation and dielectric strength with the LG terminal and the GR terminals connected will damage internal circuits in the CPU Unit.

*3. The depth is 153 mm for the C200HW-PA209R/PD025 Power Supply Unit. The depth is 111 mm for the C200HW-PA204C Power Supply Unit.

*4. Maintain an ambient storage temperature of -25 to 30°C and relative humidity of 25% to 70% when storing the C200HW-PA204C for longer than 3 months to

keep the replacement notification function in optimum working condition.

Specifications

Power Supply

Unit model

Item

C200HW-PA204 C200HW-PA204C C200HW-PA204R C200HW-PA204S C200HW-PA209R C200HW-PD024 C200HW-PD025

Power supply

voltage 100 to 240 VAC (wide range), 50/60 Hz *1 100 to 120 VAC/200 to 240 V, 50/60 Hz 24 VDC

Operating voltage

range 85 to 264 VAC 85 to 132 VAC/170 to 264 V 19.2 to 28.8 VDC

Power consumption 120 VA max. 100 VA max. 120 VA max. 180 VA max. 40 W max. 60 W max.

Inrush current 100 to 120 VAC input 15 A/8 ms max. (cold start at room temperature)

200 to 240 VAC input 30 A/8 ms  max. (cold start at room temperature)

100 to 120 VAC input

20 A/8 ms  max. (cold

start at room

temperature) 200 to

240 VAC input 30 A/8

ms  max. (cold start

at room temperature)

100 to 120 VAC:

30 A max.

200 to 240 VAC:

40 A max.

30 A max.

Insulation resistance

20 MΩ min. (at 500

VDC) between AC

external and GR

terminals *2

•20 MΩ min. (at 500 VDC)

between all AC external

terminals and GR terminal

and between all alarm

output terminals.

•20 MΩ min. (at 250 VDC)

between all alarm output

terminals and GR terminal.

20 MΩ min. (at 500 VDC) between all AC external and GR

terminals *2

20 MΩ min. (at 500 VDC) between all DC

external and GR terminals *2

Dielectric strength

2.300 VAC 50/60 Hz

for 1 min between AC

external and GR

terminals *2

Leakage current:

10mA max.

•2.300 VAC, 50/60 Hz for 1

minute between all AC

external terminals and GR

terminal and between all

alarm output terminals.

Leakage current: 10mA

max.

•1.000 VAC, 50/60 Hz for 1

minute between all alarm

output terminals and GR

terminal. Leakage current:

10mA max.

2.300 VAC 50/60 Hz for 1 min between all AC external and GR

terminals *2

Leakage current: 10 mA max. 1.000 VAC 50/60 Hz for 1 min between all

DC external and GR terminals *2

Leakage current: 10 mA max.

1.000 VAC 50/60 Hz for 1 min between all DC external and GR terminals *2

Leakage current: 10 mA max.

Noise immunity 2 kV on power supply line (conforming to IEC61000-4-4)

Vibration resistance

Conforms to JIS 0040. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes (Time coefficient: 8 minutes

x coefficient factor 10 = total time 80 min.)

(CPU Unit mounted to a DIN track: 2 to 55 Hz, 2.9 m/s2 in X, Y, and Z directions for 20 minutes)

Shock resistance Conforms to JIS 0041. 147 m/s2 3 times each in X, Y, and Z directions

Ambient operating

temperature 0 to 55°C

Ambient operating

humidity

10% to 90% (with no

condensation)

10% to 90%

(with no condensation)  *4 10% to 90% (with no condensation)

Ambient operating

atmosphere No corrosive gases

Ambient storage

temperature-20 to 75°C (excluding battery)

Grounding Less than 100 Ω

Enclosure Mounted in a panel.

Weight Each Rack: 6 kg max.

CPU Rack

dimensions (mm)

2 slots: 198.5 x 157 x 123 (W x H x D) *3

3 slots: 260 x 130 x 123 (W x H x D) *3

5 slots: 330 x 130 x 123 (W x H x D) *3

8 slots: 435 x 130 x 123 (W x H x D) *3

10 slots: 505 x 130 x 123 (W x H x D) *3

Standards Conforms to UL, CSA, cULus, NK, Lloyds, and EC Directives
