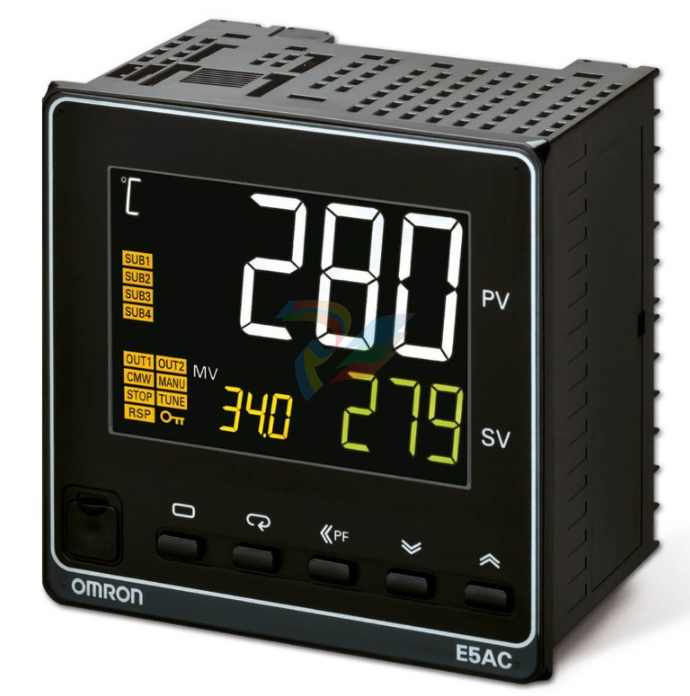

OMRON-DIGITAL TEMPERATURE CONTROLLER E5AC-CX4A5M-014 r

OMRON-DIGITAL TEMPERATURE CONTROLLER E5AC-CX4A5M-014 r

Temp. controller, PRO,1/4 DIN (96x96mm),1x0/4-20mA curr. OUT,4 AUX,EVT. I/P 4.RS-485.Transf. OUT,100-240 VAC

Size    1/4 DIN (96x96 mm)

Input type    Thermocouple, RTD, Linear

Main control output    Currrent (Linear)

Control function    Heat & cool

Supply voltage    100 - 240 VAC

Control method    ON/OFF-control, 2-PID control with auto-tuning

Output    4 alarm, Alarm output relay

Temperature range    > 700°C

IP rating    IP66

Display    Triple line

Alarms    4 Relays

Event inputs    4

Transfer output    Yes

Remote set point input    Yes

Input sampling period    50 ms

Ramp/Soak Cycle    4 Simple Patterns

Request Assistance

Please fill out the form below to:

Talk to a product expert

Arrange a product demonstration or consultation

Inquire about product training

Get a product quote

The E5C Series Temperature Controller provides a wide lineup of

models to meet a variety of applications. These controllers are easy to

setup and operate, have unique performance capabilities and offer

excellent visibility.

Digital Temperature Controllers: E5□C Series

Easy operation and high performance in

a compact 1/32 DIN Panel Mount body

• A compact body of 48  24  90 mm (W H D) that is ideal for

small equipment, laboratory instruments, and others.

• White PV display with a height of 10.5 mm for high visibility even

with the compact body.

• Removable terminal block to simplify maintenance. Select from

screw terminal blocks or screwless clamp terminal blocks for the

wiring method.

• High-speed sampling at 50 ms.

• Easy connections to a PLC with programless communications.

• Set up the Controller without wiring the power supply by

connecting to the computer with a Communications Conversion

Cable (sold separately). Setup is easy with the CX-Thermo (sold

separately).
