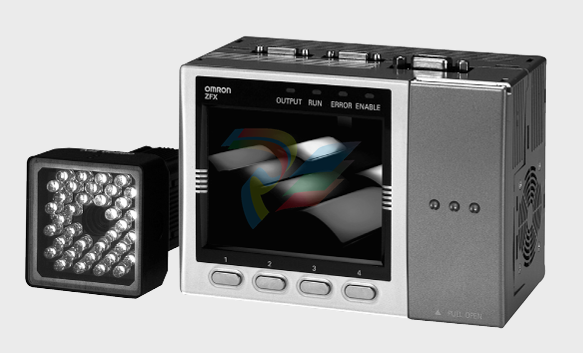

OMRON ZFX-C20/25-CD SMART SENSOR AMP UNIT, Vision Sensor LCD

ZFX-C20/25-CD

Easy Vision – Touch,

Connect & Go

•Easy vision – intuitive teach & go

user interfaces

•Live – built-in LCD touch monitors

for setup and immediate feedback

•Communication – centralized setup &

inspection via Ethernet

•Flexible – 1 or 2 cameras, colour or

monochrome

•Performance – High speed & additional

processing tools

•Barcode & Datamatrix reading &

verification

Camera with

lighting

Monochrome

type

34mm to 49mm 5mm x 4.9mm to

9mm x 8.9mm (variable)

ZFX-SR10 Cable

length: 2m

38mm to 194mm 10mm x 9.8mm to

50mm x 49mm (variable)

ZFX-SR50

Color type 34mm to 49mm 5mm x 4.9mm to

9mm x 8.9mm (variable)

ZFX-SC10

34mm to 187mm 10mm x 9.8mm to

50mm x 49mm (variable)

ZFX-SC50

ZFX-SC50W(IP67)

67mm to 142mm 50mm x 49mm to

90mm x 89mm (variable)

ZFX-SC90

ZFX-SC90W(IP67)

115mm to 227mm 90mm x 89mm to

150mm x 148mm (variable)

ZFX-SC150

ZFX-SC150W(IP67)

Camera only Monochrome

type

The CCTV lens is selected according to the range

of detection and the installation distance.

ZFX-S

Color type ZFX-SC

Item ZFX-C20-CD ZFX-C25-CD

Number of connected cameras 2

Connectable camera ZFX-SR_/SC_/S/SC

Processing resolution When ZFX-SR_/SC_ is connected:464 (H) x464 (V)

When ZFX-S/SC is connected:608 (H) x464 (V)

Display LCD monitor 3.5" TFT color LCD (320 x 240 pixels)

Indicator "Measuring" indicator (color: green): RUN

Trigger indicator (color: blue): ENABLE

Judgment indicator (color: orange): OUTPUT

Error indicator (color: red): ERROR

External I/F Parallel Interface Input 12 points (RESET, DSA, DI0 to 8. TRIG)

Output 22 points (OR, ERROR, RUN, ENABLE, GATE, STGOUT0. DO0 to 15)

Circuit type NPN PNP

Serial Interface USB2.0 1 port, FULL SPEED, MINI-B connector

RS-232C 1 port, max. 115200 bps (cannot be used simultaneously with RS-422 interface)

RS-422 1 port, max. 115200 bps (cannot be used simultaneously with RS-232C interface)

Network

communications

Ethernet 1 port, 100BASE-TX/10BASE-T

Monitor output Analog RGB output, 1 ch (resolution VGA: 640 x 480)

Memory card I/F SD card slot 1 ch

Operation I/F Touch panel, key operation, console connection

Main

functions

Number of registered banks 32 banks

Number of setup items 128 items/1 bank

Measurement

items

Shape inspection Pattern search, sensitive search, flexible search, graphic search

Size inspection Area, labeling

Edge inspection Position, width, count

Brightness/

color inspection

Brightness, HUE

Application-based

inspection

Defects, grouping

Code reading Barcode (WPC(JAN/EAN/UPC), Code 39. Codebar (NW-7), ITF

(Interleaved 2 of 5), Code 93. Code 128. GS1-128. GS1 Databar, Pharmacode)

Datamatrix (ECC200. QR Code,MicroQR Code,PDF417.MicroPDF417.

Maxi Code, AZtec Code, Codablock)

Position correction 1 model search, 2 model search, position, area, labeling

Additional

functions

Image memory function Max. 100 images (when 2 cameras are connectred, 50 images/camera)

Analysis function Logging monitor

Menu language Japanese/English (can be switched)

Ratings Power supply voltage 21.6 to 26.4 VDC (including ripple)

Current consumption 1.5 A max.

Insulation resistance Across all lead wires and controller case: 20 MΩ (by 250 V megger)

Dielectric strength Across all lead wires and controller case, 1000 VAC, 50/60 Hz, 1 min
